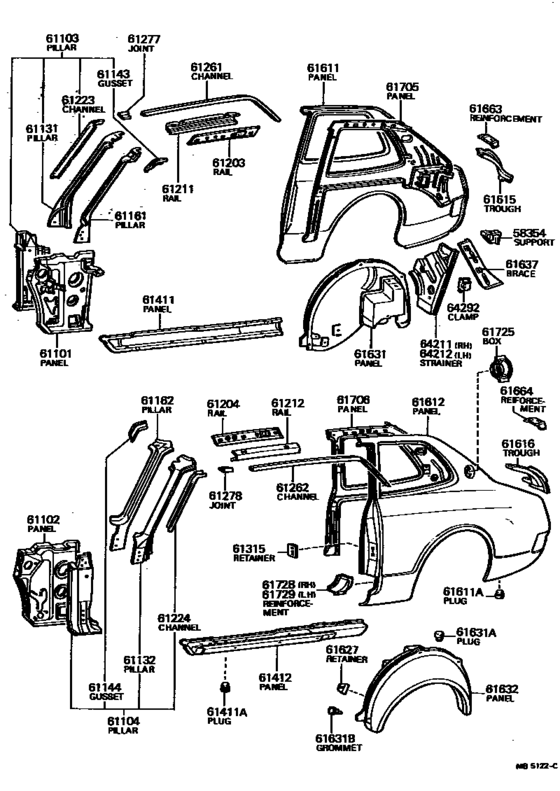

Side Member ([10.1975 - 07.1977] (7510-7707)2D) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58354
|
58354
58354-14010
Support, Luggage Compartment Side Cover
[08.1972 - 07.1977] TA1# |
58354-14010 |
— | ||
|
61101
|
61101
61101-14021
Panel Sub-Assy, Cowl Side, Rh
[10.1975 - 07.1977] TA14..LHD |
61101-14021 |
— | ||
|
61102
|
61102
61102-14021
Panel Sub-Assy, Cowl Side, Lh
[10.1975 - 07.1977] TA14..LHD |
61102-14021 |
— | ||
|
61103
|
61103
61103-14020
Pillar Sub-Assy, Front Body, Rh
[12.1970 - 09.1975] TA1#..LHD |
61103-14020 |
— | ||
|
61103
|
61103
61103-14901
Pillar Sub-Assy, Front Body, Rh
[10.1975 - 07.1977] TA14 |
61103-14901 |
— | ||
|
61104
|
61104
61104-14020
Pillar Sub-Assy, Front Body, Lh
[12.1970 - 09.1975] TA1#..LHD |
61104-14020 |
— | ||
| replacement | |||||
|
61104
|
61104
61104-14010
Pillar Sub-Assy, Front Body, Lh
[12.1970 - 09.1975] TA1#..LHD |
61104-14010 |
— | ||
|
61104
|
61104
61104-14901
Pillar Sub-Assy, Front Body, Lh
[10.1975 - 07.1977] TA14 |
61104-14901 |
— | ||
|
61131
|
61131
61131-20030
Pillar, Front Body, Upper Outer Rh
[12.1970 - 07.1977] TA1# |
61131-20030 |
— | ||
|
61132
|
61132
61132-20030
Pillar, Front Body, Upper Outer Lh
[12.1970 - 07.1977] TA1# |
61132-20030 |
— | ||
|
61143
|
61143
61143-20030
Gusset, Front Pillar Door Opening, Upper Rh
[12.1970 - 07.1977] TA1# |
61143-20030 |
— | ||
|
61144
|
61144
61144-20030
Gusset, Front Pillar Door Opening, Upper Lh
[12.1970 - 07.1977] TA1# |
61144-20030 |
— | ||
|
61161
|
61161
61161-20031
Pillar, Front Body, Upper Inner Rh
[09.1971 - 07.1977] TA1# |
61161-20031 |
— | ||
|
61161
|
61161
61161-20901
Pillar, Front Body, Upper Inner Rh
[12.1970 - 09.1971] TA1# |
61161-20901 |
— | ||
| replacement | |||||
|
61161
|
61161
61161-20031
Pillar, Front Body, Upper Inner Rh
[12.1970 - 09.1971] TA1# |
61161-20031 |
— | ||
|
61162
|
61162
61162-20031
Pillar, Front Body, Upper Inner Lh
[09.1971 - 07.1977] TA1# |
61162-20031 |
— | ||
|
61162
|
61162
61162-20901
Pillar, Front Body, Upper Inner Lh
[12.1970 - 09.1971] TA1# |
61162-20901 |
— | ||
| replacement | |||||
|
61162
|
61162
61162-20031
Pillar, Front Body, Upper Inner Lh
[12.1970 - 09.1971] TA1# |
61162-20031 |
— | ||
|
61203
|
61203
61231-14901
Rail Sub-Assy, Roof Side, Inner Rh
[12.1970 - 07.1977] TA1#..2D |
61231-14901 |
— | ||
|
61204
|
61204
61232-14901
Rail Sub-Assy, Roof Side, Inner Lh
[12.1970 - 07.1977] TA1#..2D |
61232-14901 |
— | ||
|
61211
|
61211
61211-14010
Rail, Roof Side, Outer Rh
[12.1970 - 07.1977] TA1#..2D |
61211-14010 |
— | ||
|
61212
|
61212
61212-14010
Rail, Roof Side, Outer Lh
[12.1970 - 07.1977] TA1#..2D |
61212-14010 |
— | ||
|
61223
|
61223
61223-14010
Channel, Roof Drip, Front Rh
[12.1970 - 07.1977] TA1# |
61223-14010 |
— | ||
|
61224
|
61224
61224-14010
Channel, Roof Drip, Front Lh
[12.1970 - 07.1977] TA1# |
61224-14010 |
— | ||
|
61261
|
61261
61261-14010
Channel, Roof Drip, Rh
[12.1970 - 07.1977] TA1#..2D |
61261-14010 |
— | ||
|
61262
|
61262
61262-14010
Channel, Roof Drip, Lh
[12.1970 - 07.1977] TA1#..2D |
61262-14010 |
— | ||
|
61277
|
61277
61269-14010
Joint, Roof Drip Channel, Rear
[12.1970 - 09.1975] TA1#..ST,STD |
61269-14010 |
— | ||
|
61278
|
61278
61269-14010
Joint, Roof Drip Channel, Rear
[12.1970 - 09.1975] TA1#..ST,STD |
61269-14010 |
— | ||
|
61315
|
61315
61308-14010
Retainer, Door Lock Striker Plate
[12.1970 - 07.1977] TA1#..2D RH. |
61308-14010 |
— | ||
|
61315
|
61315
61309-14010
Retainer, Door Lock Striker Plate
[12.1970 - 07.1977] TA1#..2D LH. |
61309-14010 |
— | ||
|
61411
|
61411
61411-14901
Panel, Rocker, Outer Rh
[12.1970 - 07.1977] TA1#..2D |
61411-14901 |
— | ||
|
61411A
|
61411A
90950-01056
Plug, Hole(For Floor Panel)
[12.1970 - 07.1977] TA1# OD=15 |
90950-01056 |
— | ||
| replacement | |||||
|
61411A
|
61411A
90950-01826 Plug, Hole(For Floor Panel)[12.1970 - 07.1977] TA1# OD=15 |
90950-01826 |
from US $2.24 |
||
|
61412
|
61412
61412-14901
Panel, Rocker, Outer Lh
[12.1970 - 07.1977] TA1#..2D |
61412-14901 |
— | ||
|
61611
|
61611
61611-14010
Panel, Quarter, Rh
[12.1970 - 07.1972] TA1#..2D |
61611-14010 |
— | ||
|
61611
|
61611
61611-14011
Panel, Quarter, Rh
[08.1972 - 07.1977] TA12,14..2D |
61611-14011 |
— | ||
|
61611A
|
61611A
90950-01006 Plug, Hole(For Front Fender)[12.1970 - 03.1974] TA1# OD=9 |
90950-01006 |
US $4.16 |
||
|
61611A
|
61611A
90950-01058
Plug, Hole(For Cowl Panel)
[03.1974 - 07.1977] TA1# OD=5 |
90950-01058 |
— | ||
|
61612
|
61612
61612-14010
Panel, Quarter, Lh
[12.1970 - 07.1972] TA1#..2D |
61612-14010 |
— | ||
|
61612
|
61612
61612-14011
Panel, Quarter, Lh
[08.1972 - 07.1977] TA12,14..2D |
61612-14011 |
— | ||
|
61615
|
61615
61615-14010 Trough, Luggage Compartment Opening, RhLUGGAGE COMPARTMENT OPENING, RH [12.1970 - 07.1972] TA1# |
61615-14010 |
US $43.53 |
||
| replacement | |||||
|
61615
|
61615
61615-14011
Trough, Luggage Compartment Opening, Rh
[12.1970 - 07.1972] TA1# |
61615-14011 |
— | ||
|
61615
|
61615
61615-14011
Trough, Luggage Compartment Opening, Rh
[08.1972 - 07.1977] TA1# |
61615-14011 |
— | ||
|
61616
|
61616
61616-14010 Trough, Luggage Compartment Opening, LhLUGGAGE COMPARTMENT OPENING, LH [12.1970 - 07.1972] TA1# |
61616-14010 |
US $43.53 |
||
| replacement | |||||
|
61616
|
61616
61616-14011
Trough, Luggage Compartment Opening, Lh
[12.1970 - 07.1972] TA1# |
61616-14011 |
— | ||
|
61616
|
61616
61616-14011
Trough, Luggage Compartment Opening, Lh
[08.1972 - 07.1977] TA1# |
61616-14011 |
— | ||
|
61627
|
61627
61647-14010 Retainer, Quarter Trim, LowerQUARTER TRIM, LOWER [12.1970 - 07.1977] TA1#..2D |
61647-14010 |
US $2.33 |
||
|
61631
|
61631
61603-14901
Panel, Quarter Wheel House, Rh
[12.1970 - 07.1977] TA1# |
61603-14901 |
— | ||
|
61631A
|
61631A
90950-01027 Plug, Hole, No.3(For Dash Panel)[12.1970 - 07.1977] TA1# OD=10 |
90950-01027 |
US $3.20 |
||
|
61631B
|
61631B
90950-01126 Grommet, Safety Band Anchorage Nut[12.1970 - 07.1977] TA1# OD=12 |
90950-01126 |
US $5.76 |
||
|
61632
|
61632
61604-14901
Panel, Quarter Wheel House, Lh
[12.1970 - 07.1977] TA1# |
61604-14901 |
— | ||
|
61637
|
61637
61657-14010
Brace, Quarter Wheel House, Rh
[12.1970 - 07.1977] TA1# |
61657-14010 |
— | ||
|
61663
|
61663
61663-14010 Reinforcement, Rear Combination Lamp Support, RhREAR COMBINATION LAMP SUPPORT, RH [12.1970 - 07.1972] TA1# |
61663-14010 |
US $10.34 |
||
| replacement | |||||
|
61663
|
61663
61663-14011
Reinforcement, Rear Combination Lamp Support, Rh
[12.1970 - 07.1972] TA1# |
61663-14011 |
— | ||
|
61663
|
61663
61663-14011
Reinforcement, Rear Combination Lamp Support, Rh
[08.1972 - 07.1977] TA1# |
61663-14011 |
— | ||
|
61664
|
61664
61664-14010 Reinforcement, Rear Combination Lamp Support, LhREAR COMBINATION LAMP SUPPORT, LH [12.1970 - 07.1972] TA1# |
61664-14010 |
US $8.74 |
||
| replacement | |||||
|
61664
|
61664
61664-14011
Reinforcement, Rear Combination Lamp Support, Lh
[12.1970 - 07.1972] TA1# |
61664-14011 |
— | ||
|
61664
|
61664
61664-14011
Reinforcement, Rear Combination Lamp Support, Lh
[08.1972 - 07.1977] TA1# |
61664-14011 |
— | ||
|
61705
|
61705
61705-14010
Panel Sub-Assy, Roof Side, Inner Rh
[12.1970 - 07.1977] TA1#..2D |
61705-14010 |
— | ||
|
61706
|
61706
61706-14010
Panel Sub-Assy, Roof Side, Inner Lh
[12.1970 - 07.1977] TA1#..2D |
61706-14010 |
— | ||
|
61725
|
61725
61725-14010
Box, Fuel Inlet
[08.1972 - 07.1977] TA12,14..2D |
61725-14010 |
— | ||
|
61728
|
61728
61625-14010
Reinforcement, Quarter Panel, Front Rh
[12.1970 - 07.1977] TA1#..2D |
61625-14010 |
— | ||
|
61729
|
61729
61626-14010
Reinforcement, Quarter Panel, Front Lh
[12.1970 - 07.1977] TA1#..2D |
61626-14010 |
— | ||
|
64211
|
64211
64211-14010
Strainer, Package Tray To Floor, Rh
[12.1970 - 07.1977] TA1# |
64211-14010 |
— | ||
|
64212
|
64212
64212-14010
Strainer, Package Tray To Floor, Lh
[12.1970 - 07.1977] TA1# |
64212-14010 |
— | ||
|
64292
|
64292
64292-12010
Clamp, Jack Handle
[12.1970 - 07.1977] TA1# |
64292-12010 |
— | ||
