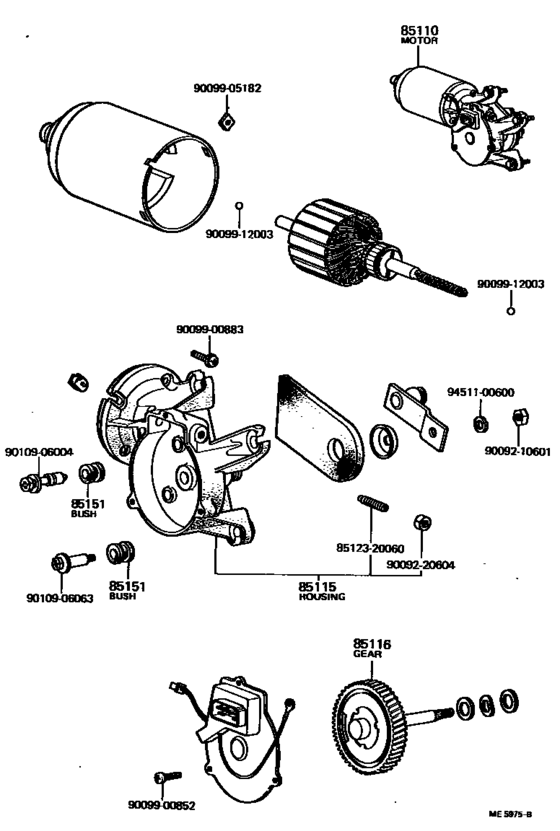

Windshield Wiper ([10.1975 - 07.1977] (7510-7707)) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- Europe
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-20050
Motor Assy, Windshield Wiper
[12.1970 - 06.1972] TA1#..LHD |
85110-20050 |
— | ||
|
85110
|
85110
85110-20051 Motor Assy, Windshield WiperWINDSHIELD WIPER [06.1972 - 04.1973] TA1#..LHD |
85110-20051 |
US $329.06 |
||
|
85110
|
85110
85110-20052
Motor Assy, Windshield Wiper
[04.1973 - 09.1975] TA1#..LHD |
85110-20052 |
— | ||
|
85110
|
85110
85110-20070 Motor Assy, Windshield WiperWINDSHIELD WIPER [10.1975 - 07.1977] TA14..LHD |
85110-20070 |
US $419.33 |
||
| replacement | |||||
|
85110
|
85110
85110-14080
Motor Assy, Windshield Wiper
[10.1975 - 07.1977] TA14..LHD |
85110-14080 |
— | ||
|
85115
|
85115
85115-20050
Housing, Windshield Wiper Motor Gear
[12.1970 - 09.1975] TA1#..LHD |
85115-20050 |
— | ||
|
85115
|
85115
85115-22060
Housing, Windshield Wiper Motor Gear
[10.1975 - 07.1977] TA14..LHD |
85115-22060 |
— | ||
|
85116
|
85116
85014-20040
Gear, Windshield Wiper Motor
[12.1970 - 09.1975] TA1# |
85014-20040 |
— | ||
|
85116
|
85116
85116-22050
Gear, Windshield Wiper Motor
[10.1975 - 07.1977] TA14 |
85116-22050 |
— | ||
|
85151
|
85151
85151-20040
Bush, Windshield Wiper Motor Gear Housing Cover
[12.1970 - 07.1977] TA1# |
85151-20040 |
— | ||
| replacement | |||||
|
85151
|
85151
85151-22070
Bush, Windshield Wiper Motor Gear Housing Cover
[12.1970 - 07.1977] TA1# |
85151-22070 |
— | ||
|
8512320060
|
8512320060
85123-20060
Supporter, Windshield Wiper Motor Shaft
|
85123-20060 |
— | ||
|
9009210601
|
9009210601
90092-10601
Nut, Rock
|
90092-10601 |
— | ||
| replacement | |||||
|
9009210601
|
9009210601
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009220604
|
9009220604
90092-20604
Nut, Wire Adjusting, No.1
|
90092-20604 |
— | ||
| replacement | |||||
|
9009220604
|
9009220604
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9009900852
|
9009900852
90099-00852
New Genuine Part
|
90099-00852 |
— | ||
|
9009900883
|
9009900883
90099-00883
New Genuine Part
|
90099-00883 |
— | ||
|
9009905182
|
9009905182
90099-05182
New Genuine Part
|
90099-05182 |
— | ||
|
9009912003
|
9009912003
90099-12003
Ball, Distributor Stationary Plate
|
90099-12003 |
— | ||
|
9010906004
|
9010906004
90109-06004 New Genuine Part |
90109-06004 |
US $2.62 |
||
|
9010906063
|
9010906063
90109-06063
New Genuine Part
|
90109-06063 |
— | ||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
