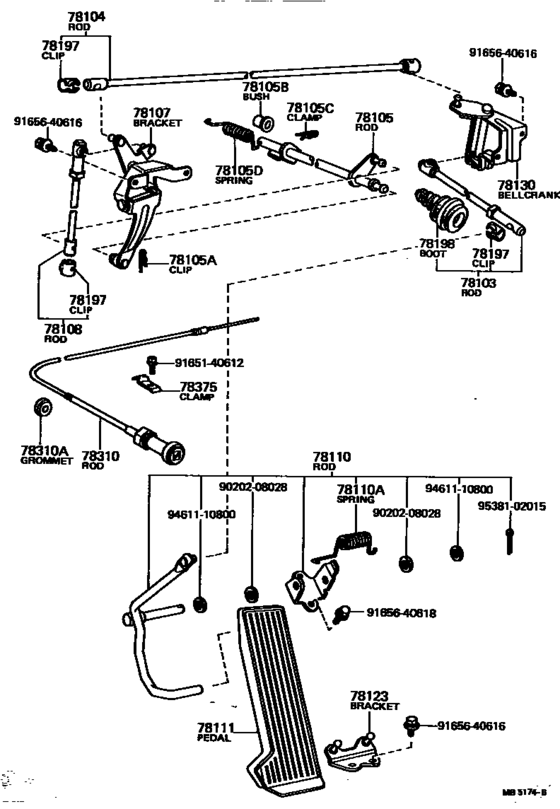

Accelerator Link ([10.1975 - 07.1977] (7510-7707)RHD..ST) Diagram Toyota CARINA
- Year
- 1975 - 1977
- Sales region
- General
- Frame
- TA14
- grade
- ST
- body
- 2DS
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 10.1975
- To
- 07.1977
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- RHD
- Body
- SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78103
|
78103
78103-14901
Rod Sub-Assy, Accelerator Connecting, No.1
[12.1970 - 09.1975] TA1#..RHD |
78103-14901 |
— | ||
|
78103
|
78103
78103-14905 Rod Sub-Assy, Accelerator Connecting, No.1ACCELERATOR CONNECTING, NO.1 [10.1975 - 07.1977] TA14..RHD |
78103-14905 |
US $9.76 |
||
|
78104
|
78104
78104-14010
Rod Sub-Assy, Accelerator Connecting, No.2
[12.1970 - 09.1975] TA1#..RHD L=116 |
78104-14010 |
— | ||
|
78104
|
78104
78104-14080 Rod Sub-Assy, Accelerator Connecting, No.2ACCELERATOR CONNECTING, NO.2 [10.1975 - 07.1977] TA14..RHD |
78104-14080 |
US $10.77 |
||
| replacement | |||||
|
78104
|
78104
78104-14110 Rod Sub-Assy, Accelerator Connecting, No.2ACCELERATOR CONNECTING, NO.2 [10.1975 - 07.1977] TA14..RHD |
78104-14110 |
US $8.88 |
||
|
78105
|
78105
78105-14010
Rod Sub-Assy, Accelerator Connecting, No.3
[12.1970 - 04.1974] TA1#..RHD..4F |
78105-14010 |
— | ||
|
78105
|
78105
78106-14020
Rod Sub-Assy, Accelerator Connecting, No.3
[10.1975 - 07.1977] TA14..RHD..ST |
78106-14020 |
— | ||
|
78105A
|
78105A
90468-12057 Clip (For Accelerator Torque Rod)[12.1970 - 09.1975] TA1#..RHD |
90468-12057 |
US $2.04 |
||
|
78105A
|
78105A
90468-16012 Pin, Sub Seat Cushion Pin[10.1975 - 07.1977] TA14 |
90468-16012 |
from US $0.92 |
||
|
78105B
|
78105B
90386-08077 Bush (For Throttle Cam Shaft)[08.1972 - 07.1977] TA12,14..ST |
90386-08077 |
from US $1.44 |
||
|
78105C
|
78105C
90468-16012 Pin, Sub Seat Cushion Pin[08.1972 - 07.1977] TA12,14..ST |
90468-16012 |
from US $0.92 |
||
|
78105D
|
78105D
90508-14002 Spring (For Accelerator Torque Rod)[10.1975 - 07.1977] TA14..ST |
90508-14002 |
US $3.79 |
||
|
78107
|
78107
78107-14010
Bracket Sub-Assy, Accelerator Torque Rod
[12.1970 - 09.1975] TA1#..RHD |
78107-14010 |
— | ||
|
78107
|
78107
78170-14020
Bracket Sub-Assy, Accelerator Torque Rod
[10.1975 - 07.1977] TA14..RHD..ST |
78170-14020 |
— | ||
|
78108
|
78108
78105-14190
Rod Sub-Assy, Accelerator Connecting, No.4
[10.1975 - 07.1977] TA14..RHD..ST |
78105-14190 |
— | ||
|
78110
|
78110
78110-14010
Rod Assy, Accelerator Pedal
[12.1970 - 09.1975] TA1#..RHD |
78110-14010 |
— | ||
|
78110
|
78110
78120-14020
Rod Assy, Accelerator Pedal
[10.1975 - 07.1977] TA14..RHD..ST |
78120-14020 |
— | ||
|
78110A
|
78110A
90508-20073 Spring (For Accelerator Pedal Rod)[12.1970 - 09.1975] TA1#..RHD |
90508-20073 |
US $7.13 |
||
|
78110A
|
78110A
90508-29001 Spring (For Accelerator Pedal Rod)[10.1975 - 07.1977] TA14..RHD |
90508-29001 |
US $3.35 |
||
|
78111
|
78111
78111-14010
Pedal, Accelerator
[12.1970 - 07.1977] TA1#..RHD |
78111-14010 |
— | ||
|
78123
|
78123
78114-14010
Bracket, Accelerator Pedal Support
[10.1975 - 07.1977] TA14..RHD |
78114-14010 |
— | ||
|
78123
|
78123
78123-14010
Bracket, Accelerator Pedal Support
[12.1970 - 09.1975] TA1#..RHD |
78123-14010 |
— | ||
|
78130
|
78130
78015-14010
Bellcrank Assy, Accelerator
[10.1975 - 07.1977] TA14..RHD |
78015-14010 |
— | ||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[12.1970 - 07.1977] TA1# |
78197-10010 |
from US $1.31 |
||
|
78198
|
78198
78199-14010
Boot, Accelerator Connecting Rod
[12.1970 - 07.1977] TA1#..RHD |
78199-14010 |
— | ||
|
78310
|
78310
78310-14012
Cable Assy, Choke
[10.1975 - 07.1977] TA14..RHD..ST |
78310-14012 |
— | ||
|
78310A
|
78310A
90480-13055 Grommet, Dash Panel, No.3[08.1972 - 07.1977] TA12,14..ST |
90480-13055 |
US $1.40 |
||
|
78375
|
78375
78375-14010
Clamp, Choke Rod Flexible Tube
[08.1972 - 07.1977] TA12,14..ST |
78375-14010 |
— | ||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165640618
|
9165640618
91656-40618
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91656-40618 |
— | ||
| replacement | |||||
|
9165640618
|
9165640618
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
