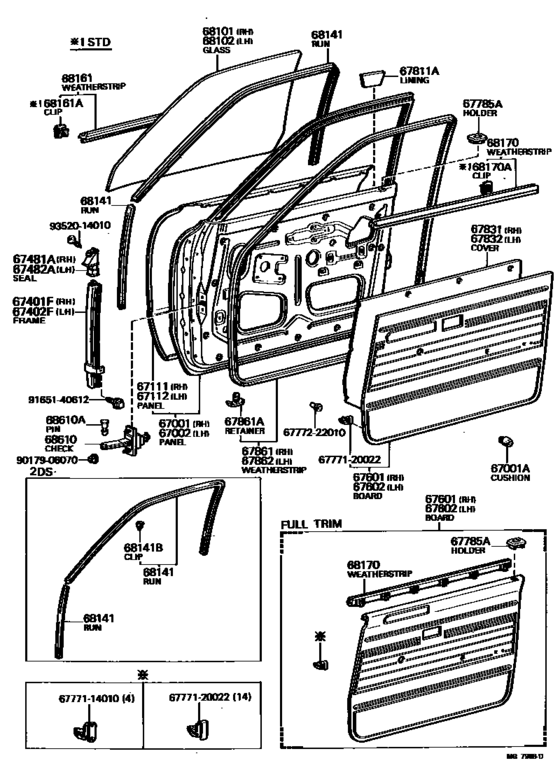

Front Door Panel & Glass ([08.1977 - ] (7708- )) Diagram Toyota CARINA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- DLX
- body
- SED
- ENGINE
- 2T
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Destination
- GEN
- Body
- 4DS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-14130 Panel Sub-Assy, Front Door, RhFRONT DOOR, RH [08.1977 - 08.1979] TA40..4D W/O MIRROR HOLE |
67001-14130 |
US $923.10 |
||
| replacements | |||||
|
67001
|
67001
90950-01882 Cover, Hole[08.1977 - 08.1979] TA40..4D W/O MIRROR HOLE |
90950-01882 |
from US $2.24 |
||
|
67001
|
67001
67001-14110
Panel Sub-assy, Front Door, Rh
[08.1977 - 08.1979] TA40..4D W/O MIRROR HOLE |
67001-14110 |
— | ||
|
67001
|
67001
67001-14131
Panel Sub-Assy, Front Door, Rh
[08.1979 - 07.1981] TA4#..4D W/O MIRROR HOLE |
67001-14131 |
— | ||
| replacements | |||||
|
67001
|
67001
90950-01882 Cover, Hole[08.1979 - 07.1981] TA4#..4D W/O MIRROR HOLE |
90950-01882 |
from US $2.24 |
||
|
67001
|
67001
67001-14110
Panel Sub-assy, Front Door, Rh
[08.1979 - 07.1981] TA4#..4D W/O MIRROR HOLE |
67001-14110 |
— | ||
|
67001
|
67001
67001-14150
Panel Sub-Assy, Front Door, Rh
[08.1977 - 08.1979] TA40..4D W/MIRROR HOLE |
67001-14150 |
— | ||
| replacement | |||||
|
67001
|
67001
67001-14151
Panel Sub-Assy, Front Door, Rh
[08.1977 - 08.1979] TA40..4D W/MIRROR HOLE |
67001-14151 |
— | ||
|
67001
|
67001
67001-14151
Panel Sub-Assy, Front Door, Rh
[08.1979 - 07.1981] TA4#..4D W/MIRROR HOLE |
67001-14151 |
— | ||
|
67001A
|
67001A
90541-09006 Cushion, Front Door Panel[08.1977 - 07.1981] TA4#..4D OD=17 |
90541-09006 |
from US $1.76 |
||
|
67002
|
67002
67002-14150 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [08.1977 - 08.1979] TA40..4D W/O MIRROR HOLE |
67002-14150 |
US $923.10 |
||
| replacements | |||||
|
67002
|
67002
90950-01882 Cover, Hole[08.1977 - 08.1979] TA40..4D W/O MIRROR HOLE |
90950-01882 |
from US $2.24 |
||
|
67002
|
67002
67002-14130
Panel Sub-assy, Front Door, Lh
[08.1977 - 08.1979] TA40..4D W/O MIRROR HOLE |
67002-14130 |
— | ||
|
67002
|
67002
67002-14151 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [08.1979 - 07.1981] TA4#..4D W/O MIRROR HOLE |
67002-14151 |
US $877.97 |
||
| replacements | |||||
|
67002
|
67002
90950-01882 Cover, Hole[08.1979 - 07.1981] TA4#..4D W/O MIRROR HOLE |
90950-01882 |
from US $2.24 |
||
|
67002
|
67002
67002-14130
Panel Sub-assy, Front Door, Lh
[08.1979 - 07.1981] TA4#..4D W/O MIRROR HOLE |
67002-14130 |
— | ||
|
67002
|
67002
67002-14170 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [08.1977 - 08.1979] TA40..4D W/MIRROR HOLE |
67002-14170 |
US $923.10 |
||
| replacement | |||||
|
67002
|
67002
67002-14171
Panel Sub-Assy, Front Door, Lh
[08.1977 - 08.1979] TA40..4D W/MIRROR HOLE |
67002-14171 |
— | ||
|
67002
|
67002
67002-14171
Panel Sub-Assy, Front Door, Lh
[08.1979 - 07.1981] TA4#..4D W/MIRROR HOLE |
67002-14171 |
— | ||
|
67111
|
67111
67111-14090
Panel, Front Door, Outer Rh
[08.1977 - 07.1981] TA4#..4D |
67111-14090 |
— | ||
|
67112
|
67112
67112-14100
Panel, Front Door, Outer Lh
[08.1977 - 07.1981] TA4#..4D |
67112-14100 |
— | ||
|
67401F
|
67401F
67401-14050
Frame Sub-Assy, Front Door, Front Lower Rh
[08.1977 - 07.1981] TA4# |
67401-14050 |
— | ||
|
67402F
|
67402F
67402-14050
Frame Sub-Assy, Front Door, Front Lower Lh
[08.1977 - 07.1981] TA4# |
67402-14050 |
— | ||
|
67481A
|
67481A
67481-14020
Seal, Front Door Front Lower Frame, Rh
[08.1977 - 07.1981] TA4#..4D |
67481-14020 |
— | ||
|
67482A
|
67482A
67481-14020
Seal, Front Door Front Lower Frame, Rh
[08.1977 - 07.1981] TA4#..4D |
67481-14020 |
— | ||
|
67601
|
67601
67610-14580-01
Board Sub-Assy, Front Door Trim, Rh
[08.1977 - 07.1981] TA4#..DLX..4D BLACK,BLACK,TRIM2# |
67610-14580-01 |
— | ||
|
67601
|
67601
67610-14580-04 Board Sub-Assy, Front Door Trim, RhFRONT DOOR TRIM, RH [08.1977 - 08.1979] TA40..4DS..DLX BLUE,BLUE,TRIM8# |
67610-14580-04 |
US $305.76 |
||
| replacement | |||||
|
67601
|
67601
67610-14580-14
Board Sub-Assy, Front Door Trim, Rh
[08.1977 - 08.1979] TA40..4DS..DLX BLUE,BLUE,TRIM8# |
67610-14580-14 |
— | ||
|
67601
|
67601
67610-14580-06
Board Sub-Assy, Front Door Trim, Rh
[08.1977 - 07.1981] TA4#..DLX..4D LIGHT BROWN,BROWN,TRIM4# |
67610-14580-06 |
— | ||
|
67601
|
67601
67610-14580-14
Board Sub-Assy, Front Door Trim, Rh
[08.1979 - 07.1981] TA4#..4DS..DLX BLUE,BLUE,TRIM8# |
67610-14580-14 |
— | ||
|
67602
|
67602
67620-14370-01
Board Sub-Assy, Front Door Trim, Lh
[08.1977 - 07.1981] TA4#..DLX..4D BLACK,BLACK,TRIM2# |
67620-14370-01 |
— | ||
|
67602
|
67602
67620-14370-04 Board Sub-Assy, Front Door Trim, LhFRONT DOOR TRIM, LH [08.1977 - 08.1979] TA40..4DS..DLX BLUE,BLUE,TRIM8# |
67620-14370-04 |
US $305.76 |
||
| replacement | |||||
|
67602
|
67602
67620-14370-14
Board Sub-Assy, Front Door Trim, Lh
[08.1977 - 08.1979] TA40..4DS..DLX BLUE,BLUE,TRIM8# |
67620-14370-14 |
— | ||
|
67602
|
67602
67620-14370-06
Board Sub-Assy, Front Door Trim, Lh
[08.1977 - 07.1981] TA4#..DLX..4D LIGHT BROWN,BROWN,TRIM4# |
67620-14370-06 |
— | ||
|
67602
|
67602
67620-14370-14
Board Sub-Assy, Front Door Trim, Lh
[08.1979 - 07.1981] TA4#..4DS..DLX BLUE,BLUE,TRIM8# |
67620-14370-14 |
— | ||
|
67785A
|
67785A
69751-20040 Holder, Front Door Locking Button Collar[08.1977 - 07.1981] TA4#..(DLX,GL,ST)..4D |
69751-20040 |
US $5.60 |
||
|
67811A
|
67811A
67139-12010
Lining, Door Outside Panel Reinforcement
[08.1977 - 07.1981] TA4# |
67139-12010 |
— | ||
|
67831
|
67831
67831-14050 Cover, Front Door Service Hole, RhFRONT DOOR SERVICE HOLE, RH [08.1977 - 08.1979] TA40..4D |
67831-14050 |
US $36.40 |
||
| replacement | |||||
|
67831
|
67831
67831-14051
Cover, Front Door Service Hole, Rh
[08.1977 - 08.1979] TA40..4D |
67831-14051 |
— | ||
|
67831
|
67831
67831-14051
Cover, Front Door Service Hole, Rh
[08.1979 - 07.1981] TA4#..4D |
67831-14051 |
— | ||
|
67832
|
67832
67831-14050 Cover, Front Door Service Hole, RhFRONT DOOR SERVICE HOLE, RH [08.1977 - 08.1979] TA40..4D |
67831-14050 |
US $36.40 |
||
| replacement | |||||
|
67832
|
67832
67831-14051
Cover, Front Door Service Hole, Rh
[08.1977 - 08.1979] TA40..4D |
67831-14051 |
— | ||
|
67832
|
67832
67831-14051
Cover, Front Door Service Hole, Rh
[08.1979 - 12.1979] TA4#..4D |
67831-14051 |
— | ||
|
67832
|
67832
67832-14020
Cover, Front Door Service Hole, Lh
[12.1979 - 07.1981] TA4#..4D |
67832-14020 |
— | ||
|
67861
|
67861
67861-14130
Weatherstrip, Front Door, Rh
[08.1977 - 07.1981] TA4#..4D |
67861-14130 |
— | ||
|
67861A
|
67861A
67868-30040 Retainer, Roof Side Rail, Rh[08.1977 - 07.1981] TA4# |
67868-30040 |
US $1.76 |
||
|
67862
|
67862
67862-14130
Weatherstrip, Front Door, Lh
[08.1977 - 07.1981] TA4#..4D |
67862-14130 |
— | ||
|
68101
|
68101
68111-14140
Glass Sub-Assy, Front Door, Rh
[08.1977 - 07.1981] TA4#..4D *TT,T=5.0 |
68111-14140 |
— | ||
|
68102
|
68102
68112-14150
Glass Sub-Assy, Front Door, Lh
[08.1977 - 07.1981] TA4#..4D *TT,T=5.0 |
68112-14150 |
— | ||
|
68141
|
68141
68141-14030
Run, Front Door Glass
[08.1977 - 08.1979] TA40..4D L=1701 |
68141-14030 |
— | ||
| replacement | |||||
|
68141
|
68141
68141-20100
Run, Front Door Glass
[08.1977 - 08.1979] TA40..4D L=1701 |
68141-20100 |
— | ||
|
68141
|
68141
68141-14031 Run, Front Door GlassFRONT DOOR GLASS [08.1979 - 11.1979] TA4#..4D L=1701 |
68141-14031 |
US $37.56 |
||
| replacement | |||||
|
68141
|
68141
68141-20100
Run, Front Door Glass
[08.1979 - 11.1979] TA4#..4D L=1701 |
68141-20100 |
— | ||
|
68141
|
68141
68141-20100
Run, Front Door Glass
[11.1979 - 07.1981] TA4#..4D L=1701 |
68141-20100 |
— | ||
|
68141
|
68141
68143-22010
Run, Front Door Glass
[08.1977 - 07.1981] TA4# L=431 |
68143-22010 |
— | ||
| replacement | |||||
|
68141
|
68141
68143-14020
Run, Front Door Glass
[08.1977 - 07.1981] TA4# L=431 |
68143-14020 |
— | ||
|
68170
|
68170
68170-14090
Weatherstrip Assy, Front Door Glass, Inner
[08.1977 - 07.1981] TA4#..(DLX,GL,ST)..4D |
68170-14090 |
— | ||
|
68610
|
68610
68610-14011
Check Assy, Front Door
[08.1977 - 07.1981] TA4# |
68610-14011 |
— | ||
|
68610A
|
68610A
68617-22010
Pin(For Front Door Check)
[08.1977 - 07.1981] TA4# |
68617-22010 |
— | ||
| replacement | |||||
|
68610A
|
68610A
68617-90A01 Pin(For Front Door Check)[08.1977 - 07.1981] TA4# |
68617-90A01 |
US $4.80 |
||
|
6777114010
|
6777114010
67771-14010 Retainer(For Front Door Trim Board) |
67771-14010 |
US $3.84 |
||
|
6777120022
|
6777120022
67771-20022 Retainer(For Front Door Trim Board) |
67771-20022 |
from US $1.42 |
||
|
6777222010
|
6777222010
67772-22010 Clip(For Front Door Trim Board) |
67772-22010 |
US $2.72 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9352014010
|
9352014010
93520-14010 New Genuine Part |
93520-14010 |
US $0.52 |
||
