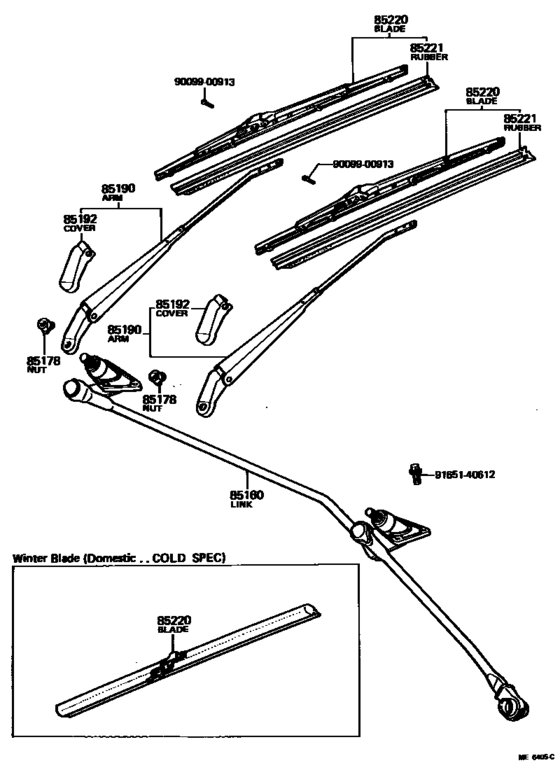

Windshield Wiper ([08.1977 - ] (7708- )) Diagram Toyota CARINA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- DLX
- body
- SED
- ENGINE
- 2T
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Destination
- GEN
- Body
- 4DS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85160
|
85160
85160-14130 Link Assy, Windshield WiperWINDSHIELD WIPER [08.1977 - 08.1979] TA40..LHD..GEN |
85160-14130 |
US $180.54 |
||
| replacement | |||||
|
85160
|
85160
85160-14180
Link Assy, Windshield Wiper
[08.1977 - 08.1979] TA40..LHD..GEN |
85160-14180 |
— | ||
|
85160
|
85160
85160-14131
Link Assy, Windshield Wiper
[08.1979 - 07.1981] TA40..LHD..GEN |
85160-14131 |
— | ||
| replacement | |||||
|
85160
|
85160
85160-14181
Link Assy, Windshield Wiper
[08.1979 - 07.1981] TA40..LHD..GEN |
85160-14181 |
— | ||
|
85178
|
85178
90176-08016 Cap Nut (For Front Wiper Arm Setting)[08.1979 - 07.1981] TA4# |
90176-08016 |
from US $1.89 |
||
|
85178
|
85178
90179-08015 Nut (For Front Wiper Arm Setting)[08.1977 - 09.1978] TA40 |
90179-08015 |
US $2.62 |
||
|
85178
|
85178
90179-08026 Nut (For Front Wiper Arm Setting)[09.1978 - 08.1979] TA40 |
90179-08026 |
US $1.28 |
||
|
85190
|
85190
85190-12450
Arm Assy, Windshield Wiper
[08.1979 - 07.1981] TA40..LHD..(DLX,STD)..GEN |
85190-12450 |
— | ||
|
85190
|
85190
85190-14180 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1977 - 02.1978] TA40..LHD |
85190-14180 |
US $55.47 |
||
| replacement | |||||
|
85190
|
85190
85190-14181
Arm Assy, Windshield Wiper
[08.1977 - 02.1978] TA40..LHD |
85190-14181 |
— | ||
|
85190
|
85190
85190-14181
Arm Assy, Windshield Wiper
[02.1978 - 08.1979] TA40..LHD |
85190-14181 |
— | ||
|
85192
|
85192
85192-12040
Cover, Windshield Wiper Arm
[08.1979 - 07.1981] TA4#..LHD |
85192-12040 |
— | ||
|
85192
|
85192
85192-14010 Cover, Rear Wiper Arm[08.1977 - 08.1979] TA40..LHD |
85192-14010 |
US $5.60 |
||
|
85220
|
85220
85220-14160
Blade Assy, Windshield Wiper
[08.1977 - 02.1978] TA40..LHD..(DLX,STD) |
85220-14160 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-20130
Blade Assy, Windshield Wiper
[08.1977 - 02.1978] TA40..LHD..(DLX,STD) |
85220-20130 |
— | ||
|
85220
|
85220
85220-14180
Blade Assy, Windshield Wiper
[02.1978 - 04.1978] TA40..LHD..(DLX,STD) |
85220-14180 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-20130
Blade Assy, Windshield Wiper
[02.1978 - 04.1978] TA40..LHD..(DLX,STD) |
85220-20130 |
— | ||
|
85220
|
85220
85220-14201
Blade Assy, Windshield Wiper
[07.1978 - 10.1978] TA40..LHD |
85220-14201 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-14290
Blade Assy, Windshield Wiper
[07.1978 - 10.1978] TA40..LHD |
85220-14290 |
— | ||
|
85220
|
85220
85220-20130
Blade Assy, Windshield Wiper
[08.1979 - 07.1981] TA40..LHD..(DLX,STD)..GEN |
85220-20130 |
— | ||
|
85220
|
85220
85220-20160 Blade Assy, Windshield WiperWINDSHIELD WIPER [10.1978 - 08.1979] TA40..LHD |
85220-20160 |
US $42.81 |
||
| replacement | |||||
|
85220
|
85220
85220-14290
Blade Assy, Windshield Wiper
[10.1978 - 08.1979] TA40..LHD |
85220-14290 |
— | ||
|
85221
|
85221
85221-14140
Rubber, Windshield Wiper
[08.1977 - 10.1977] TA40 |
85221-14140 |
— | ||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[08.1977 - 10.1977] TA40 |
85221-14H90 |
US $12.16 |
||
|
85221
|
85221
85221-14150 Blade, Windshield WiperWINDSHIELD WIPER [02.1978 - 04.1978] TA40..LHD |
85221-14150 |
US $10.05 |
||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[02.1978 - 04.1978] TA40..LHD |
85221-14H90 |
US $12.16 |
||
|
85221
|
85221
85221-14160 Blade, Windshield WiperWINDSHIELD WIPER [10.1977 - 02.1978] TA40..LHD |
85221-14160 |
US $11.36 |
||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[10.1977 - 02.1978] TA40..LHD |
85221-14H90 |
US $12.16 |
||
|
85221
|
85221
85221-20080
Blade, Windshield Wiper
[04.1978 - 08.1979] TA40..LHD |
85221-20080 |
— | ||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[04.1978 - 08.1979] TA40..LHD |
85221-14H90 |
US $12.16 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
from US $2.48 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
