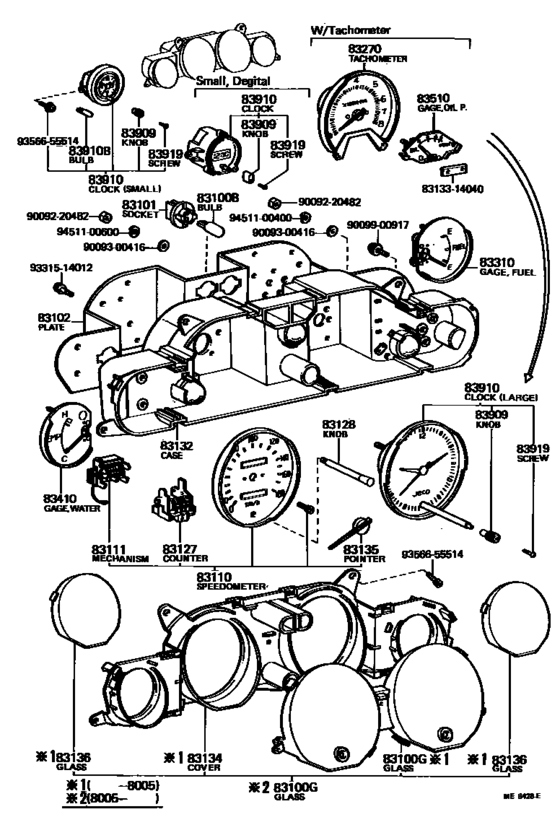

Meter ([08.1977 - ] (7708- )) Diagram Toyota CARINA
- Year
- 1978 - 1979
- Sales region
- General
- Frame
- TA40
- grade
- DLX
- body
- WG
- ENGINE
- 2TC
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 01.1978
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1977 - 07.1981] TA4# 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1977 - 07.1981] TA4# 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-14680
Glass, Combination Meter
[08.1977 - 05.1980] TA4#..LHD..(DLX,GL,STD) W/LARGE CLOCK |
83138-14680 |
— | ||
| replacement | |||||
|
83100G
|
83100G
83138-14681
Glass, Combination Meter
[08.1977 - 05.1980] TA4#..LHD..(DLX,GL,STD) W/LARGE CLOCK |
83138-14681 |
— | ||
|
83100G
|
83100G
83138-14681
Glass, Combination Meter
[05.1980 - 07.1981] TA4#..LHD..(DLX,GL,STD) W/LARGE CLOCK |
83138-14681 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1977 - 07.1981] TA4# |
83101-14030 |
from US $1.54 |
||
|
83102
|
83102
83247-14360
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1977 - 08.1979] TA40..LHD..(DLX,GL,STD) |
83247-14360 |
— | ||
|
83102
|
83102
83247-14500
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1979 - 07.1981] TA47..SDN; TA40..LHD..(DLX,GL,STD) |
83247-14500 |
— | ||
|
83110
|
83110
83241-14460 Speedometer Assy[08.1977 - 08.1979] TA40..LHD KM |
83241-14460 |
US $384.38 |
||
|
83111
|
83111
83111-14870
Mechanism, Speedometer
[08.1977 - 07.1981] TA47..SDN; TA40 KM |
83111-14870 |
— | ||
|
83127
|
83127
83127-12280
Counter, Trip
[08.1977 - 07.1981] TA47..SDN KM; TA40 KM |
83127-12280 |
— | ||
|
83128
|
83128
83128-14740
Knob, Trip Counter
[08.1977 - 07.1981] TA4# |
83128-14740 |
— | ||
|
83132
|
83132
83132-14080
Case, Combination Meter
[08.1977 - 07.1981] TA4#..LHD |
83132-14080 |
— | ||
|
83134
|
83134
83133-14030
Cover, Combination Meter, No.1
[08.1977 - 05.1980] TA4# |
83133-14030 |
— | ||
|
83135
|
83135
83135-14250
Pointer, Speedometer
[08.1977 - 07.1981] TA47..SDN; TA40 |
83135-14250 |
— | ||
|
83136
|
83136
83138-14730
Glass, Gage Meter
[08.1977 - 05.1980] TA4# |
83138-14730 |
— | ||
|
83310
|
83310
83243-14250 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1977 - 08.1979] TA40 |
83243-14250 |
US $46.88 |
||
|
83410
|
83410
83244-14110
Gage Assy, Water Temperature Receiver
[08.1977 - 08.1979] TA40 |
83244-14110 |
— | ||
|
83410
|
83410
83244-14111 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1979 - 07.1981] TA4#..LHD |
83244-14111 |
US $46.88 |
||
|
83909
|
83909
83909-14012
Knob, Clock
[08.1977 - 08.1979] TA40 |
83909-14012 |
— | ||
|
83910
|
83910
83910-14180
Clock Assy
[08.1977 - 04.1980] TA4#..LHD..(DLX,GL) LARGE CLOCK |
83910-14180 |
— | ||
|
83919
|
83919
83919-14012
Screw, Thermometer
[08.1977 - 08.1979] TA40 |
83919-14012 |
— | ||
|
8313314040
|
8313314040
83133-14040
Plate, Combination Meter, No.1
|
83133-14040 |
— | ||
|
9009220482
|
9009220482
90092-20482
New Genuine Part
|
90092-20482 |
— | ||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356655514
|
9356655514
93566-55514 New Genuine Part |
93566-55514 |
US $1.75 |
||
| replacement | |||||
|
9356655514
|
9356655514
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
