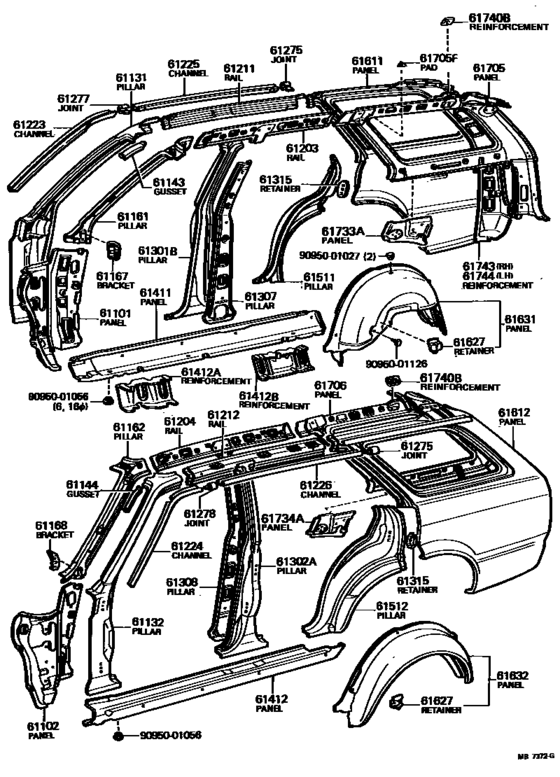

Side Member ([08.1977 - ] (7708- )WG) Diagram Toyota CARINA
- Year
- 1978 - 1979
- Sales region
- General
- Frame
- TA40
- grade
- DLX
- body
- WG
- ENGINE
- 2TC
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 01.1978
- To
- 08.1979
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61101
|
61101
61101-14070
Panel Sub-Assy, Cowl Side, Rh
[08.1977 - 07.1981] TA4#..LHD |
61101-14070 |
— | ||
|
61102
|
61102
61102-14080
Panel Sub-Assy, Cowl Side, Lh
[08.1977 - 07.1981] TA4#..LHD |
61102-14080 |
— | ||
|
61131
|
61131
61027-14020
Pillar, Front Body, Upper Outer Rh
[08.1977 - 07.1981] TA4# |
61027-14020 |
— | ||
|
61132
|
61132
61028-14010
Pillar, Front Body, Upper Outer Lh
[08.1977 - 07.1981] TA4# |
61028-14010 |
— | ||
|
61143
|
61143
61143-14030
Gusset, Front Pillar Door Opening, Upper Rh
[08.1977 - 07.1981] TA4# |
61143-14030 |
— | ||
|
61144
|
61144
61144-14030
Gusset, Front Pillar Door Opening, Upper Lh
[08.1977 - 07.1981] TA4# |
61144-14030 |
— | ||
|
61161
|
61161
61161-14040
Pillar, Front Body, Upper Inner Rh
[08.1977 - 07.1981] TA4# |
61161-14040 |
— | ||
|
61162
|
61162
61162-14040
Pillar, Front Body, Upper Inner Lh
[08.1977 - 07.1981] TA4# |
61162-14040 |
— | ||
|
61167
|
61167
61165-14050
Bracket, Instrument Panel To Cowl Side, Rh
[08.1977 - 07.1981] TA4# |
61165-14050 |
— | ||
|
61168
|
61168
61166-14060
Bracket, Instrument Panel To Cowl Side, Lh
[08.1977 - 07.1981] TA4# |
61166-14060 |
— | ||
|
61203
|
61203
61203-15040
Rail Sub-Assy, Roof Side, Inner Rh
[08.1977 - 07.1981] TA4#..WG |
61203-15040 |
— | ||
|
61204
|
61204
61204-15030
Rail Sub-Assy, Roof Side, Inner Lh
[08.1977 - 07.1981] TA4#..WG |
61204-15030 |
— | ||
|
61211
|
61211
61211-15020
Rail, Roof Side, Outer Rh
[08.1977 - 07.1981] TA4#..WG |
61211-15020 |
— | ||
|
61212
|
61212
61212-15020
Rail, Roof Side, Outer Lh
[08.1977 - 07.1981] TA4#..WG |
61212-15020 |
— | ||
|
61223
|
61223
61263-14010
Channel, Roof Drip, Front Rh
[08.1977 - 07.1981] TA4# |
61263-14010 |
— | ||
|
61224
|
61224
61264-14010
Channel, Roof Drip, Front Lh
[08.1977 - 07.1981] TA4# |
61264-14010 |
— | ||
|
61225
|
61225
61265-15020
Channel, Roof Drip, Center Rh
[08.1977 - 07.1981] TA4#..WG |
61265-15020 |
— | ||
|
61226
|
61226
61266-15020
Channel, Roof Drip, Center Lh
[08.1977 - 07.1981] TA4#..WG |
61266-15020 |
— | ||
|
61301B
|
61301B
61301-14040
Pillar, Center Body, Outer Rh
[08.1977 - 07.1981] TA4#..4D |
61301-14040 |
— | ||
|
61302A
|
61302A
61302-14040
Pillar, Center Body, Outer Lh
[08.1977 - 07.1981] TA4#..4D |
61302-14040 |
— | ||
|
61307
|
61307
61343-14020
Pillar Sub-Assy, Center Body, Inner Rh
[08.1977 - 07.1981] TA4#..4D |
61343-14020 |
— | ||
|
61308
|
61308
61344-14020
Pillar Sub-Assy, Center Body, Inner Lh
[08.1977 - 07.1981] TA4#..4D |
61344-14020 |
— | ||
|
61315
|
61315
61503-14010
Retainer, Door Lock Striker Plate
[08.1977 - 07.1981] TA4#..4D |
61503-14010 |
— | ||
|
61411
|
61411
61411-14170 Panel, Rocker, Outer RhROCKER, OUTER RH [08.1977 - 07.1981] TA4#..4D |
61411-14170 |
US $317.41 |
||
| replacement | |||||
|
61411
|
61411
61411-14150
Panel, Rocker, Outer Rh
[08.1977 - 07.1981] TA4#..4D |
61411-14150 |
— | ||
|
61412
|
61412
61412-14170 Panel, Rocker, Outer LhROCKER, OUTER LH [08.1977 - 07.1981] TA4#..4D |
61412-14170 |
US $317.41 |
||
| replacement | |||||
|
61412
|
61412
61412-14150
Panel, Rocker, Outer Lh
[08.1977 - 07.1981] TA4#..4D |
61412-14150 |
— | ||
|
61412A
|
61412A
61413-14020
Reinforcement, Rocker Panel, No.1 Lh
[08.1979 - 07.1981] TA4# RH |
61413-14020 |
— | ||
|
61412A
|
61412A
61414-14020
Reinforcement, Rocker Panel, No.1 Lh
[08.1979 - 07.1981] TA4# LH |
61414-14020 |
— | ||
|
61412B
|
61412B
61423-14010
Reinforcement, Rocker Panel, No.2
[08.1979 - 07.1981] TA4#..4D |
61423-14010 |
— | ||
|
61511
|
61511
61511-14040
Pillar, Quarter Lock, Rh
[08.1977 - 07.1981] TA4#..4D |
61511-14040 |
— | ||
|
61512
|
61512
61512-14050
Pillar, Quarter Lock, Lh
[08.1977 - 07.1981] TA4#..4D |
61512-14050 |
— | ||
|
61611
|
61611
61601-15901 Panel, Quarter, RhQUARTER, RH [08.1977 - 08.1979] TA40..WG |
61601-15901 |
US $848.85 |
||
| replacement | |||||
|
61611
|
61611
61601-15902
Panel, Quarter, Rh
[08.1977 - 08.1979] TA40..WG |
61601-15902 |
— | ||
|
61611
|
61611
61601-15902
Panel, Quarter, Rh
[08.1979 - 07.1981] TA4#..WG |
61601-15902 |
— | ||
|
61612
|
61612
61602-15901 Panel, Quarter, LhQUARTER, LH [08.1977 - 08.1979] TA40..WG |
61602-15901 |
US $848.85 |
||
| replacement | |||||
|
61612
|
61612
61602-15902
Panel, Quarter, Lh
[08.1977 - 08.1979] TA40..WG |
61602-15902 |
— | ||
|
61612
|
61612
61602-15902
Panel, Quarter, Lh
[08.1979 - 07.1981] TA4#..WG |
61602-15902 |
— | ||
|
61627
|
61627
61647-13020
Retainer, Quarter Trim, Lower
[08.1977 - 07.1981] TA4#..WG |
61647-13020 |
— | ||
|
61631
|
61631
61603-15020
Panel, Quarter Wheel House, Rh
[08.1977 - 07.1981] TA4#..WG |
61603-15020 |
— | ||
|
61632
|
61632
61604-15020
Panel, Quarter Wheel House, Lh
[08.1977 - 07.1981] TA4#..WG |
61604-15020 |
— | ||
|
61705
|
61705
61705-15900
Panel Sub-Assy, Roof Side, Inner Rh
[08.1977 - 07.1981] TA4#..WG |
61705-15900 |
— | ||
|
61705F
|
61705F
63351-15010
Pad, Roof Side, Rear
[08.1977 - 07.1981] TA4#..WG |
63351-15010 |
— | ||
|
61706
|
61706
61706-15900
Panel Sub-Assy, Roof Side, Inner Lh
[08.1977 - 07.1981] TA4#..WG |
61706-15900 |
— | ||
|
61733A
|
61733A
61733-15020
Panel, Roof Side, Inner Front Rh
[08.1977 - 07.1981] TA4#..WG |
61733-15020 |
— | ||
|
61734A
|
61734A
61734-15020
Panel, Roof Side, Inner Front Lh
[08.1977 - 07.1981] TA4#..WG |
61734-15020 |
— | ||
|
61740B
|
61740B
61766-15010
Reinforcement, Seat Belt Anchor To Roof Side, Inner
[08.1977 - 07.1981] TA4#..WG |
61766-15010 |
— | ||
|
61743
|
61743
61743-15010
Reinforcement, Back Door Opening, Inner Rh
[08.1977 - 07.1981] TA4#..WG |
61743-15010 |
— | ||
|
61744
|
61744
61744-15010
Reinforcement, Back Door Opening, Inner Lh
[08.1977 - 07.1981] TA4#..WG |
61744-15010 |
— | ||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
