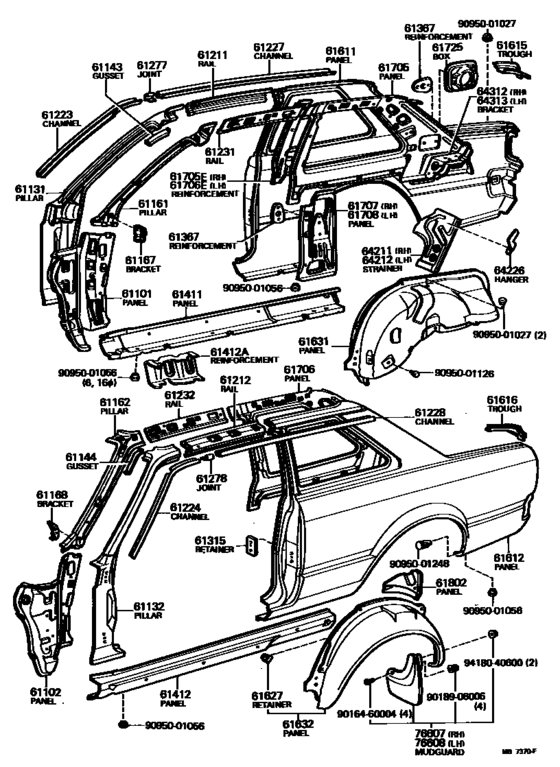

Side Member ([08.1977 - ] (7708- )2D) Diagram Toyota CARINA
- Year
- 1979 - 1981
- Sales region
- General
- Frame
- TA47
- grade
- DLX
- body
- SED
- ENGINE
- 3TC
- TRANSMISSION
- ATM
- Model
- CARINA
- From
- 08.1979
- To
- 07.1981
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Carina
- Driver's Position
- LHD
- Destination
- EUR
- Body
- 2DS
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61101
|
61101
61101-14070
Panel Sub-Assy, Cowl Side, Rh
[08.1977 - 07.1981] TA4#..LHD |
61101-14070 |
— | ||
|
61102
|
61102
61102-14080
Panel Sub-Assy, Cowl Side, Lh
[08.1977 - 07.1981] TA4#..LHD |
61102-14080 |
— | ||
|
61131
|
61131
61027-14020
Pillar, Front Body, Upper Outer Rh
[08.1977 - 07.1981] TA4# |
61027-14020 |
— | ||
|
61132
|
61132
61028-14010
Pillar, Front Body, Upper Outer Lh
[08.1977 - 07.1981] TA4# |
61028-14010 |
— | ||
|
61143
|
61143
61143-14030
Gusset, Front Pillar Door Opening, Upper Rh
[08.1977 - 07.1981] TA4# |
61143-14030 |
— | ||
|
61144
|
61144
61144-14030
Gusset, Front Pillar Door Opening, Upper Lh
[08.1977 - 07.1981] TA4# |
61144-14030 |
— | ||
|
61161
|
61161
61161-14040
Pillar, Front Body, Upper Inner Rh
[08.1977 - 07.1981] TA4# |
61161-14040 |
— | ||
|
61162
|
61162
61162-14040
Pillar, Front Body, Upper Inner Lh
[08.1977 - 07.1981] TA4# |
61162-14040 |
— | ||
|
61167
|
61167
61165-14050
Bracket, Instrument Panel To Cowl Side, Rh
[08.1977 - 07.1981] TA4# |
61165-14050 |
— | ||
|
61168
|
61168
61166-14060
Bracket, Instrument Panel To Cowl Side, Lh
[08.1977 - 07.1981] TA4# |
61166-14060 |
— | ||
|
61211
|
61211
61211-14060
Rail, Roof Side, Outer Rh
[08.1977 - 07.1981] TA4#..2D |
61211-14060 |
— | ||
|
61212
|
61212
61212-14060
Rail, Roof Side, Outer Lh
[08.1977 - 07.1981] TA4#..2D |
61212-14060 |
— | ||
|
61223
|
61223
61263-14010
Channel, Roof Drip, Front Rh
[08.1977 - 07.1981] TA4# |
61263-14010 |
— | ||
|
61224
|
61224
61264-14010
Channel, Roof Drip, Front Lh
[08.1977 - 07.1981] TA4# |
61264-14010 |
— | ||
|
61227
|
61227
61267-14010
Channel, Roof Drip Side, Rear Rh
[08.1977 - 07.1981] TA4#..SED |
61267-14010 |
— | ||
|
61228
|
61228
61268-14010
Channel, Roof Drip Side, Rear Lh
[08.1977 - 07.1981] TA4#..SED |
61268-14010 |
— | ||
|
61231
|
61231
61231-14060
Rail, Roof Side, Inner Rh
[08.1977 - 07.1981] TA4#..2D |
61231-14060 |
— | ||
|
61232
|
61232
61232-14060
Rail, Roof Side, Inner Lh
[08.1977 - 07.1981] TA4#..2D |
61232-14060 |
— | ||
|
61315
|
61315
61309-14020
Retainer, Door Lock Striker Plate
[08.1977 - 07.1981] TA4#..2D |
61309-14020 |
— | ||
|
61367
|
61367
61367-14010 Reinforcement, Belt Anchor To Center Pillar, Lower[08.1977 - 07.1981] TA4#..2D |
61367-14010 |
US $9.17 |
||
|
61411
|
61411
61411-14140
Panel, Rocker, Outer Rh
[08.1977 - 07.1981] TA4#..2D |
61411-14140 |
— | ||
|
61412
|
61412
61412-14140
Panel, Rocker, Outer Lh
[08.1977 - 07.1981] TA4#..2D |
61412-14140 |
— | ||
|
61412A
|
61412A
61413-14020
Reinforcement, Rocker Panel, No.1 Lh
[08.1979 - 07.1981] TA4# RH |
61413-14020 |
— | ||
|
61412A
|
61412A
61414-14020
Reinforcement, Rocker Panel, No.1 Lh
[08.1979 - 07.1981] TA4# LH |
61414-14020 |
— | ||
|
61611
|
61611
61611-14261
Panel, Quarter, Rh
[08.1979 - 07.1981] TA4#..2D |
61611-14261 |
— | ||
|
61612
|
61612
61612-14251
Panel, Quarter, Lh
[08.1979 - 07.1981] TA4#..2D |
61612-14251 |
— | ||
|
61615
|
61615
61621-14030
Trough, Luggage Compartment Opening, Rh
[08.1977 - 07.1981] TA4#..SED |
61621-14030 |
— | ||
|
61616
|
61616
61622-14020
Trough, Luggage Compartment Opening, Lh
[08.1977 - 07.1981] TA4#..SED |
61622-14020 |
— | ||
|
61627
|
61627
61647-14010 Retainer, Quarter Trim, LowerQUARTER TRIM, LOWER [08.1977 - 07.1981] TA4#..2D |
61647-14010 |
US $2.33 |
||
|
61631
|
61631
61603-14905
Panel, Quarter Wheel House, Rh
[08.1977 - 07.1981] TA4#..SED |
61603-14905 |
— | ||
|
61632
|
61632
61604-14905 Panel, Quarter Wheel House, LhQUARTER WHEEL HOUSE, LH [08.1977 - 07.1981] TA4#..SED |
61604-14905 |
US $448.45 |
||
|
61705
|
61705
61731-14060
Panel Sub-Assy, Roof Side, Inner Rh
[08.1977 - 07.1981] TA4#..2D |
61731-14060 |
— | ||
|
61705E
|
61705E
61347-14010
Reinforcement, Belt Anchor To Roof Side, Inner Rh
[08.1977 - 07.1981] TA4#..2D |
61347-14010 |
— | ||
|
61706
|
61706
61732-14060
Panel Sub-Assy, Roof Side, Inner Lh
[08.1977 - 07.1981] TA4#..2D |
61732-14060 |
— | ||
|
61706E
|
61706E
61348-14010
Reinforcement, Belt Anchor To Roof Side, Inner Lh
[08.1977 - 07.1981] TA4#..2D |
61348-14010 |
— | ||
|
61707
|
61707
61613-14030
Panel Sub-Assy, Quarter, Inner Rh
[08.1977 - 07.1981] TA4#..2D |
61613-14030 |
— | ||
|
61708
|
61708
61614-14040
Panel Sub-Assy, Quarter, Inner Lh
[08.1977 - 07.1981] TA4#..2D |
61614-14040 |
— | ||
|
61725
|
61725
61709-14060
Box, Fuel Inlet
[08.1977 - 07.1981] TA4#..SED |
61709-14060 |
— | ||
|
61802
|
61802
61618-14020
Panel, Quarter Inside, Rear Lh
[08.1977 - 07.1981] TA4#..2D |
61618-14020 |
— | ||
|
64211
|
64211
64211-14040
Strainer, Package Tray To Floor, Rh
[08.1977 - 07.1981] TA4#..SED |
64211-14040 |
— | ||
|
64212
|
64212
64212-14040
Strainer, Package Tray To Floor, Lh
[08.1977 - 07.1981] TA4#..SED |
64212-14040 |
— | ||
|
64312
|
64312
64312-14040
Bracket, Package Tray, Rh
[08.1977 - 07.1981] TA4#..2D |
64312-14040 |
— | ||
|
64313
|
64313
64313-14040
Bracket, Package Tray, Lh
[08.1977 - 07.1981] TA4#..2D |
64313-14040 |
— | ||
|
76607
|
76607
76607-19025
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1977 - 07.1981] TA4#..SED |
76607-19025 |
— | ||
|
76608
|
76608
76608-19025
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1977 - 07.1981] TA4#..SED |
76608-19025 |
— | ||
|
9005001056
|
9005001056
90050-01056
New Genuine Part
|
90050-01056 |
— | ||
|
9016460004
|
9016460004
90164-60004
New Genuine Part
|
90164-60004 |
— | ||
| replacement | |||||
|
9016460004
|
9016460004
93540-76020
New Genuine Part
|
93540-76020 |
— | ||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9095001248
|
9095001248
90950-01248
New Genuine Part
|
90950-01248 |
— | ||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
