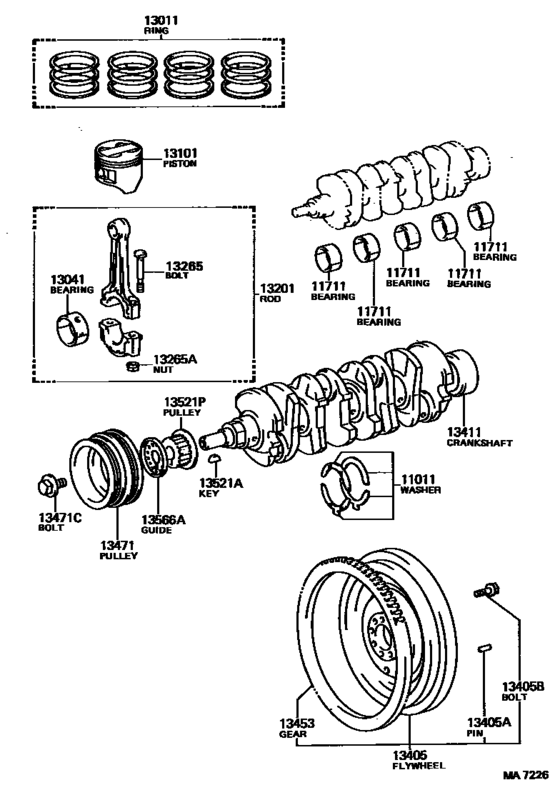

Crankshaft & Piston ([08.1983 - 07.1985] (8308-8507)4AGE) Diagram Toyota CELICA
- Year
- 1983 - 1985
- Sales region
- Europe
- Frame
- AA63
- grade
- GT
- body
- LB
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- From
- 08.1983
- To
- 07.1985
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[08.1983 - 07.1985] 4AGE..AA63 STD |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[08.1983 - 07.1985] 4AGE..AA63 STD |
11011-15021 |
from US $31.46 |
||
|
11711
|
11711
11701-15050-01 Bearing, Crankshaft[08.1983 - 03.1984] 4AGE..AA63 MARK"1",MARK 1 |
11701-15050-01 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[08.1983 - 03.1984] 4AGE..AA63 MARK"1",MARK 1 |
11701-16010-01 |
from US $20.20 |
||
|
11711
|
11711
11701-15050-02
Bearing, Crankshaft
[08.1983 - 03.1984] 4AGE..AA63 MARK"2",MARK 2 |
11701-15050-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[08.1983 - 03.1984] 4AGE..AA63 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15050-03 Bearing, Crankshaft[08.1983 - 03.1984] 4AGE..AA63 MARK"3",MARK 3 |
11701-15050-03 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[08.1983 - 03.1984] 4AGE..AA63 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[03.1984 - 07.1984] 4AGE..AA63 MARK"1",MARK 1 |
11701-16010-01 |
from US $20.20 |
||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[03.1984 - 07.1984] 4AGE..AA63 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[03.1984 - 07.1984] 4AGE..AA63 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
13011
|
13011
13011-16050 Ring Set, PistonPISTON [08.1983 - 07.1985] 4AGE..AA63 STD |
13011-16050 |
US $208.21 |
||
| replacement | |||||
|
13011
|
13011
13011-16180
Ring Set, Piston
[08.1983 - 07.1985] 4AGE..AA63 STD |
13011-16180 |
— | ||
|
13041
|
13041
13041-16040-01 Bearing, Connecting Rod[08.1983 - 07.1985] 4AGE..AA63 MARK"1",MARK 1 |
13041-16040-01 |
US $33.29 |
||
|
13041
|
13041
13041-16040-02 Bearing, Connecting Rod[08.1983 - 07.1985] 4AGE..AA63 MARK"2",MARK 2 |
13041-16040-02 |
US $33.29 |
||
|
13041
|
13041
13041-16040-03 Bearing, Connecting Rod[08.1983 - 07.1985] 4AGE..AA63 MARK"3",MARK 3 |
13041-16040-03 |
US $33.29 |
||
|
13101
|
13101
13101-16020
Piston Sub-Assy, W/pin
[08.1983 - 07.1985] 4AGE..AA63..GEN STD |
13101-16020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-16020-02
Piston Sub-Assy, W/pin
[08.1983 - 07.1985] 4AGE..AA63..GEN STD |
13101-16020-02 |
— | ||
|
13201
|
13201
13201-19065 Rod Sub-Assy, Connecting[08.1983 - 07.1985] 4AGE..AA63 |
13201-19065 |
US $158.70 |
||
| replacement | |||||
|
13201
|
13201
13201-19066 Rod Sub-Assy, Connecting[08.1983 - 07.1985] 4AGE..AA63 |
13201-19066 |
US $147.06 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[08.1983 - 07.1985] 4AGE..AA63 |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[08.1983 - 07.1985] 4AGE..AA63 |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[08.1983 - 07.1985] 4AGE..AA63 |
90170-09003 |
US $2.88 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[03.1983 - 07.1985] 4AGE..AA63; 2T#..TA60 |
90170-09001 |
US $2.72 |
||
|
13405
|
13405
13405-19145
Flywheel Sub-Assy
[08.1983 - 07.1985] 4AGE..AA63 |
13405-19145 |
— | ||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[08.1983 - 07.1985] 4AGE..AA63 L=18,OD=8 |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10076 Bolt, Flywheel Setting[08.1983 - 07.1985] 4AGE..AA63 |
90105-10076 |
from US $2.71 |
||
|
13411
|
13411
13401-16010
Crankshaft
[08.1983 - 07.1985] 4AGE..AA63 |
13401-16010 |
— | ||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[08.1983 - 07.1985] 4AGE..AA63 |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13470-16010
Pulley, Crankshaft
[08.1983 - 07.1985] 4AGE..AA63 |
13470-16010 |
— | ||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[08.1983 - 07.1985] 4AGE..AA63 |
90105-12012 |
US $4.89 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1981 - 08.1984] 4AGE..AA63; 5M#..MA61; 2T#..TA60; 21R#,18RG..RA6# |
90280-05010 |
US $4.16 |
||
|
13521P
|
13521P
13521-16010 Pulley, Crankshaft Timing[08.1983 - 07.1985] 4AGE..AA63 |
13521-16010 |
from US $19.23 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[08.1983 - 07.1985] 4AGE..AA63 |
13566-15010 |
from US $5.44 |
||
