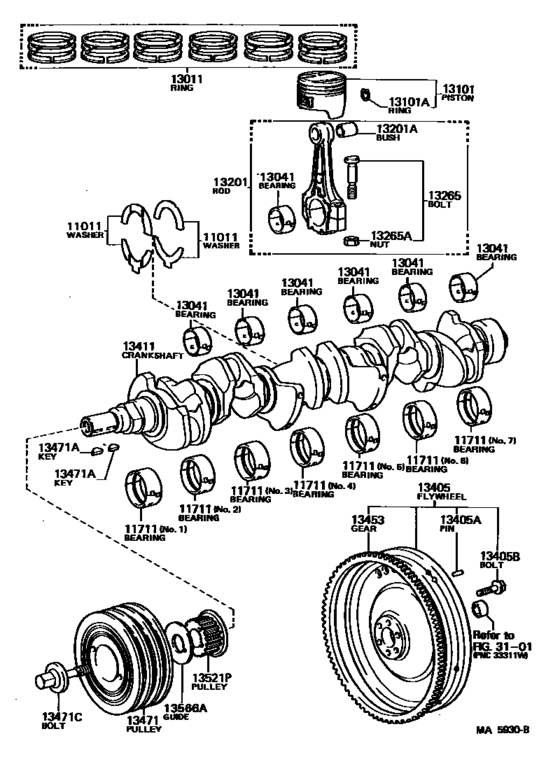

Crankshaft & Piston ([08.1982 - ] (8208- )1GGEU) Diagram Toyota CELICA
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 12.1985
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-70010 Washer Set, Crankshaft Thrust[07.1981 - 12.1985] 1G#..GA61 ＳＴＤ,STD |
11011-70010 |
US $13.10 |
||
|
11711
|
11711
11071-70010-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"1",*53,MARK 1; 1GEU..GA61 NO.1,MARK"1",MARK 1 |
11071-70010-01 |
US $49.50 |
||
| replacements | |||||
|
11711
|
11711
11071-70013-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"1",*53,MARK 1; 1GEU..GA61 NO.1,MARK"1",MARK 1 |
11071-70013-01 |
US $49.07 |
||
|
11711
|
11711
11071-88300-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"1",*53,MARK 1; 1GEU..GA61 NO.1,MARK"1",MARK 1 |
11071-88300-01 |
US $49.50 |
||
|
11711
|
11711
11071-70010-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"2",*53,MARK 2; 1GEU..GA61 NO.1,MARK"2",MARK 2 |
11071-70010-02 |
US $49.50 |
||
| replacements | |||||
|
11711
|
11711
11071-70013-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"2",*53,MARK 2; 1GEU..GA61 NO.1,MARK"2",MARK 2 |
11071-70013-02 |
US $49.07 |
||
|
11711
|
11711
11071-88300-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"2",*53,MARK 2; 1GEU..GA61 NO.1,MARK"2",MARK 2 |
11071-88300-02 |
US $49.50 |
||
|
11711
|
11711
11071-70010-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"3",*53,MARK 3; 1GEU..GA61 NO.1,MARK"3",MARK 3 |
11071-70010-03 |
US $49.50 |
||
| replacements | |||||
|
11711
|
11711
11071-70013-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"3",*53,MARK 3; 1GEU..GA61 NO.1,MARK"3",MARK 3 |
11071-70013-03 |
from US $21.47 |
||
|
11711
|
11711
11071-88300-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"3",*53,MARK 3; 1GEU..GA61 NO.1,MARK"3",MARK 3 |
11071-88300-03 |
US $49.50 |
||
|
11711
|
11711
11701-70020-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"1",MARK 1; 1GGEU..GA61 NO.2,3,MARK"1",*53,MARK 1 |
11701-70020-01 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"1",MARK 1; 1GGEU..GA61 NO.2,3,MARK"1",*53,MARK 1 |
11701-63022-01 |
from US $24.96 |
||
|
11711
|
11711
11701-70020-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"2",MARK 2; 1GGEU..GA61 NO.2,3,MARK"2",*53,MARK 2 |
11701-70020-02 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"2",MARK 2; 1GGEU..GA61 NO.2,3,MARK"2",*53,MARK 2 |
11701-63022-02 |
from US $24.96 |
||
|
11711
|
11711
11701-70020-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"3",MARK 3; 1GGEU..GA61 NO.2,3,MARK"3",*53,MARK 3 |
11701-70020-03 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"3",MARK 3; 1GGEU..GA61 NO.2,3,MARK"3",*53,MARK 3 |
11701-63022-03 |
from US $24.96 |
||
|
11711
|
11711
11701-88300-01 Bearing, Crankshaft[08.1982 - 02.1985] 1GGEU..GA61 MARK"1",MARK 1 |
11701-88300-01 |
US $38.29 |
||
| replacement | |||||
|
11711
|
11711
11701-88360-01
Bearing, Crankshaft
[08.1982 - 02.1985] 1GGEU..GA61 MARK"1",MARK 1 |
11701-88360-01 |
— | ||
|
11711
|
11711
11701-88300-02 Bearing, Crankshaft[08.1982 - 02.1985] 1GGEU..GA61 MARK"2",MARK 2 |
11701-88300-02 |
US $38.29 |
||
| replacement | |||||
|
11711
|
11711
11701-88360-02 Bearing, Crankshaft[08.1982 - 02.1985] 1GGEU..GA61 MARK"2",MARK 2 |
11701-88360-02 |
US $46.74 |
||
|
11711
|
11711
11701-88300-03 Bearing, Crankshaft[08.1982 - 02.1985] 1GGEU..GA61 MARK"3",MARK 3 |
11701-88300-03 |
US $38.29 |
||
| replacement | |||||
|
11711
|
11711
11701-88360-03 Bearing, Crankshaft[08.1982 - 02.1985] 1GGEU..GA61 MARK"3",MARK 3 |
11701-88360-03 |
US $46.74 |
||
|
13011
|
13011
13011-88300 Ring Set, Piston[08.1982 - 07.1985] 1GGEU..GA61 STD |
13011-88300 |
US $253.34 |
||
|
13011
|
13011
13011-88301
Ring Set, Piston
[07.1985 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD,*54 |
13011-88301 |
— | ||
|
13011
|
13011
13013-88300 Ring Set, Piston[08.1982 - 07.1985] 1GGEU..GA61 O/S 0.50 |
13013-88300 |
US $244.61 |
||
|
13011
|
13011
13013-88301
Ring Set, Piston
[07.1985 - 12.1985] 1GGEU..GA61 Ｏ／Ｓ ０．５０,O/S 0.50,*54 |
13013-88301 |
— | ||
|
13041
|
13041
13041-88300-03 Bearing, Connecting Rod[08.1982 - 12.1985] 1GGEU..GA61 MARK"3",MARK 3 |
13041-88300-03 |
US $25.77 |
||
|
13041
|
13041
13041-88300-04 Bearing, Connecting Rod[08.1982 - 12.1985] 1GGEU..GA61 MARK"4",MARK 4 |
13041-88300-04 |
US $25.77 |
||
|
13041
|
13041
13041-88300-05 Bearing, Connecting Rod[08.1982 - 12.1985] 1GGEU..GA61 MARK"5",MARK 5 |
13041-88300-05 |
US $25.77 |
||
|
13101
|
13101
13101-70031 Piston Sub-Assy, W/pin[08.1984 - 12.1985] 1GGEU..GA61 STD,*53 |
13101-70031 |
US $97.55 |
||
|
13101
|
13101
13101-70032 Piston Sub-Assy, W/pin[12.1985 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD,*53 |
13101-70032 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-70033-02 Piston Sub-Assy, W/pin[12.1985 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD,*53 |
13101-70033-02 |
US $81.54 |
||
|
13101
|
13101
13101-88300 Piston Sub-Assy, W/pin[08.1982 - 08.1984] 1GGEU..GA61 STD |
13101-88300 |
US $117.94 |
||
|
13101
|
13101
13101-88301 Piston Sub-Assy, W/pin[07.1985 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD,*54 |
13101-88301 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-70033-02 Piston Sub-Assy, W/pin[07.1985 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD,*54 |
13101-70033-02 |
US $81.54 |
||
|
13101
|
13101
13103-70031 Piston Sub-Assy, W/pin[08.1984 - 12.1985] 1GGEU..GA61 O/S 0.50,*53 |
13103-70031 |
US $88.82 |
||
|
13101
|
13101
13103-88300 Piston Sub-Assy, W/pin[08.1982 - 08.1984] 1GGEU..GA61 O/S 0.50 |
13103-88300 |
US $154.34 |
||
|
13101
|
13101
13103-88301 Piston Sub-Assy, W/pin[07.1985 - 12.1985] 1GGEU..GA61 Ｏ／Ｓ ０．５０,O/S 0.50,*54 |
13103-88301 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13103-70033 Piston Sub-Assy, W/pin[07.1985 - 12.1985] 1GGEU..GA61 Ｏ／Ｓ ０．５０,O/S 0.50,*54 |
13103-70033 |
US $81.54 |
||
|
13101A
|
13101A
90521-20002 Ring, Hole Snap(For Piston Pin)[08.1982 - 12.1985] 1GGEU..GA61 |
90521-20002 |
US $1.89 |
||
|
13101A
|
13101A
90521-21088 Ring, Hole Snap(For Piston Pin)[08.1984 - 12.1985] 1GGEU..GA61 ENGINE NO.=05XXXXX |
90521-21088 |
US $1.79 |
||
|
13201
|
13201
13201-79025 Rod Sub-Assy, Connecting[08.1982 - 10.1984] 1GGEU..GA61 |
13201-79025 |
US $215.49 |
||
| replacement | |||||
|
13201
|
13201
13201-79026 Rod Sub-Assy, Connecting[08.1982 - 10.1984] 1GGEU..GA61 |
13201-79026 |
US $208.21 |
||
|
13201
|
13201
13201-79026 Rod Sub-Assy, Connecting[10.1984 - 12.1985] 1GGEU..GA61 |
13201-79026 |
US $208.21 |
||
|
13201A
|
13201A
90999-73070 Bush(For Connecting Rod Small End)[07.1981 - 12.1985] 1G#..GA61 |
90999-73070 |
US $8.74 |
||
|
13265
|
13265
13265-29015
Bolt, Connecting Rod
[07.1981 - 07.1985] 1G#..GA61 |
13265-29015 |
— | ||
| replacements | |||||
|
13265
|
13265
13265-70020 Bolt, Connecting Rod[07.1981 - 07.1985] 1G#..GA61 |
13265-70020 |
from US $3.32 |
||
|
13265
|
13265
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[07.1981 - 07.1985] 1G#..GA61 |
90170-09001 |
US $2.72 |
||
|
13265
|
13265
13265-70010 Bolt, Connecting Rod[07.1985 - 12.1985] 1G#..GA61 |
13265-70010 |
US $7.13 |
||
| replacement | |||||
|
13265
|
13265
13265-70020 Bolt, Connecting Rod[07.1985 - 12.1985] 1G#..GA61 |
13265-70020 |
from US $3.32 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[07.1981 - 03.1983] 1G#..GA61 |
90170-09001 |
US $2.72 |
||
|
13405
|
13405
13405-79015 Flywheel Sub-Assy[08.1982 - 12.1985] 1GGEU..GA61 |
13405-79015 |
US $410.59 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[07.1981 - 12.1985] 18RGEU..RA63 長さ＝２３，外径＝８,L=23,OD=8; 1SU..SA60..MTM 長さ＝２３，外径＝８,L=23,OD=8; 1G#..GA61..5F 長さ＝２３，外径＝８,L=23,OD=8; 5MGEU..MA61..5F 長さ＝２３，外径＝８,L=23,OD=8; 2TGEU,3T#,4TGTEU..TA6#..5F 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[07.1981 - 12.1985] 2TGEU,3TEU..TA61,63..5F *10-1.25PX26-18; 1G#..GA61..5F *10-1.25PX26-18; 5MGEU..MA61..5F *10-1.25PX26-18 |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-70020 Crankshaft[08.1982 - 08.1984] 1GGEU..GA61 |
13411-70020 |
US $1,394.85 |
||
| replacement | |||||
|
13411
|
13411
13411-70905 Crankshaft[08.1982 - 08.1984] 1GGEU..GA61 |
13411-70905 |
US $1,394.85 |
||
|
13411
|
13411
13411-70021 Crankshaft[08.1984 - 12.1985] 1GGEU..GA61 |
13411-70021 |
US $1,394.85 |
||
| replacement | |||||
|
13411
|
13411
13411-70905 Crankshaft[08.1984 - 12.1985] 1GGEU..GA61 |
13411-70905 |
US $1,394.85 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[07.1981 - 12.1985] 18RGEU..RA63; 1SU..SA60..MTM; 1G#..GA61..5F; 5MGEU..MA61..5F; 2TGEU,3T#,4TGTEU..TA6#..5F |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13407-88300 Pulley, Crankshaft[08.1982 - 08.1983] 1GGEU..GA61 |
13407-88300 |
US $528.53 |
||
| replacement | |||||
|
13471
|
13471
13407-88301 Pulley, Crankshaft[08.1982 - 08.1983] 1GGEU..GA61 |
13407-88301 |
US $528.53 |
||
|
13471
|
13471
13407-88301 Pulley, Crankshaft[08.1983 - 12.1985] 1GGEU..GA61 |
13407-88301 |
US $528.53 |
||
|
13471A
|
13471A
95161-10519 Key(For Oil Pump Drive Spline)[07.1981 - 12.1985] 1G#..GA61; 1SU..SA60 |
95161-10519 |
from US $2.03 |
||
|
13471C
|
13471C
90105-18001 Bolt(For Crankshaft Pulley Set)[07.1981 - 12.1985] 1G#..GA61 *18-1.5PX40-20 |
90105-18001 |
US $13.92 |
||
|
13521P
|
13521P
13521-88300
Pulley, Crankshaft Timing
[08.1982 - 05.1985] 1GGEU..GA61 |
13521-88300 |
— | ||
|
13521P
|
13521P
13521-88340 Pulley, Crankshaft Timing[05.1985 - 12.1985] 1GGEU..GA61 |
13521-88340 |
US $84.45 |
||
|
13566A
|
13566A
13566-88300 Guide, Timing Belt[08.1982 - 12.1985] 1GGEU..GA61 |
13566-88300 |
US $11.94 |
||
