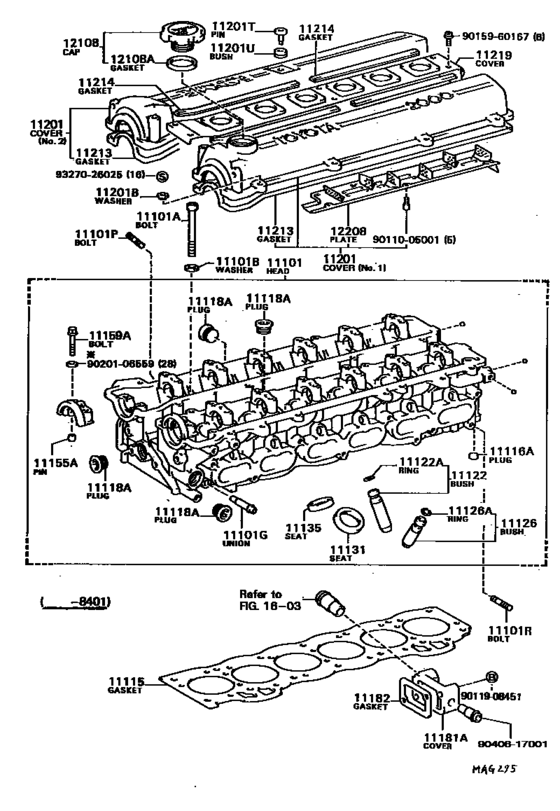

Cylinder Head ([08.1982 - ] (8208- )1GGEU) Diagram Toyota CELICA
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 12.1985
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-70022 Head Sub-Assy, Cylinder[09.1985 - 12.1985] 1GGEU..GA61 *53 |
11101-70022 |
US $2,431.52 |
||
| replacements | |||||
|
11101
|
11101
11101-70025 Head Sub-Assy, Cylinder[09.1985 - 12.1985] 1GGEU..GA61 *53 |
11101-70025 |
US $2,373.28 |
||
|
11101
|
11101
90201-16023 Washer, Plate(For Valve Spring Seat)[09.1985 - 12.1985] 1GGEU..GA61 *53 |
90201-16023 |
from US $0.86 |
||
|
11101
|
11101
11101-88300 Head Sub-Assy, Cylinder[08.1982 - 01.1984] 1GGEU..GA61 |
11101-88300 |
US $2,402.40 |
||
| replacement | |||||
|
11101
|
11101
11101-88302 Head Sub-Assy, Cylinder[08.1982 - 01.1984] 1GGEU..GA61 |
11101-88302 |
US $2,373.28 |
||
|
11101
|
11101
11101-88301 Head Sub-Assy, Cylinder[01.1984 - 09.1985] 1GGEU..GA61 |
11101-88301 |
US $2,533.44 |
||
| replacement | |||||
|
11101
|
11101
11101-88302 Head Sub-Assy, Cylinder[01.1984 - 09.1985] 1GGEU..GA61 |
11101-88302 |
US $2,373.28 |
||
|
11101A
|
11101A
90110-10003 Bolt(For Cylinder Head Set)[08.1982 - 12.1985] 1GGEU..GA61 |
90110-10003 |
from US $4.23 |
||
|
11101B
|
11101B
90201-10050 Washer, Plate(For Cylinder Head Set)[08.1982 - 11.1983] 1GGEU..GA61 |
90201-10050 |
US $2.72 |
||
|
11101G
|
11101G
90072-40625
Union(For Cylinder Head)
[08.1982 - 12.1985] 1GGEU..GA61 |
90072-40625 |
— | ||
|
11101P
|
11101P
90116-08115 Bolt, Stud(For Distributor)[08.1982 - 12.1985] 1GGEU..GA61 |
90116-08115 |
US $1.31 |
||
|
11101R
|
11101R
90116-06063 Bolt, Stud(For Fuel Pipe)[04.1985 - 12.1985] 1GGEU..GA61 ENGINE NO.=0XXXXXX |
90116-06063 |
US $1.92 |
||
|
11101R
|
11101R
92132-60614 Bolt, Stud(For Fuel Pipe)[08.1982 - 04.1985] 1GGEU..GA61 |
92132-60614 |
US $2.62 |
||
|
11115
|
11115
11115-88301 Gasket, Cylinder Head[08.1982 -] 1GGEU..GA61 |
11115-88301 |
US $90.27 |
||
| replacement | |||||
|
11115
|
11115
11115-88302 Gasket, Cylinder Head[08.1982 -] 1GGEU..GA61 |
11115-88302 |
US $99.16 |
||
|
11116A
|
11116A
96411-41800 Plug, Tight, No.1[08.1982 - 12.1985] 1GGEU..GA61 |
96411-41800 |
from US $1.72 |
||
|
11118A
|
11118A
90341-27001 Plug, Straight, No.1[08.1982 - 09.1985] 1GGEU..GA61 |
90341-27001 |
US $8.59 |
||
| replacement | |||||
|
11118A
|
11118A
90341-27003 Plug, W/head Taper Screw, No.1[08.1982 - 09.1985] 1GGEU..GA61 |
90341-27003 |
from US $7.16 |
||
|
11118A
|
11118A
90341-27003 Plug, W/head Taper Screw, No.1[09.1985 - 12.1985] 1GGEU..GA61 |
90341-27003 |
from US $7.16 |
||
|
11122
|
11122
11122-16020 Bush, Intake Valve Guide[07.1985 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD |
11122-16020 |
from US $12.46 |
||
|
11122
|
11122
11122-88310 Bush, Intake Valve Guide[08.1982 - 07.1985] 1GGEU..GA61 ＳＴＤ,STD |
11122-88310 |
US $26.06 |
||
| replacement | |||||
|
11122
|
11122
11122-88320 Bush, Intake Valve Guide[08.1982 - 07.1985] 1GGEU..GA61 ＳＴＤ,STD |
11122-88320 |
US $25.77 |
||
|
11122
|
11122
11123-16020 Bush, Intake Valve Guide[07.1985 - 12.1985] 1GGEU..GA61 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-16020 |
US $11.18 |
||
|
11122
|
11122
11123-88310 Bush, Intake Valve Guide[08.1982 - 07.1985] 1GGEU..GA61 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-88310 |
US $26.06 |
||
| replacement | |||||
|
11122
|
11122
11123-88320 Bush, Intake Valve Guide[08.1982 - 07.1985] 1GGEU..GA61 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-88320 |
US $25.77 |
||
|
11122A
|
11122A
90520-10004
Ring, Shaft Snap (For Valve Guide Bush)
[08.1982 - 12.1985] 4AGEU..AA63; 1GGEU..GA61 |
90520-10004 |
— | ||
|
11126
|
11126
11122-16010
Bush, Intake Valve Guide
[07.1985 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD |
11122-16010 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[07.1985 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD |
11122-16020 |
from US $12.46 |
||
|
11126
|
11126
11122-88310 Bush, Intake Valve Guide[08.1982 - 07.1985] 1GGEU..GA61 ＳＴＤ,STD |
11122-88310 |
US $26.06 |
||
| replacement | |||||
|
11126
|
11126
11122-88320 Bush, Intake Valve Guide[08.1982 - 07.1985] 1GGEU..GA61 ＳＴＤ,STD |
11122-88320 |
US $25.77 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[07.1985 - 12.1985] 1GGEU..GA61 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-16010 |
US $11.36 |
||
|
11126
|
11126
11123-88310 Bush, Intake Valve Guide[08.1982 - 07.1985] 1GGEU..GA61 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-88310 |
US $26.06 |
||
| replacement | |||||
|
11126
|
11126
11123-88320 Bush, Intake Valve Guide[08.1982 - 07.1985] 1GGEU..GA61 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-88320 |
US $25.77 |
||
|
11126A
|
11126A
90520-10004
Ring, Shaft Snap (For Valve Guide Bush)
[08.1982 - 12.1985] 4AGEU..AA63; 1GGEU..GA61 |
90520-10004 |
— | ||
|
11131
|
11131
11131-70010 Seat, Intake Valve[08.1982 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD |
11131-70010 |
US $15.87 |
||
|
11131
|
11131
11132-70010 Seat, Intake Valve[08.1982 - 12.1985] 1GGEU..GA61 Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-70010 |
US $16.89 |
||
|
11135
|
11135
11135-70020 Seat, Exhaust Valve[08.1982 - 11.1984] 1GGEU..GA61 STD |
11135-70020 |
US $18.05 |
||
| replacement | |||||
|
11135
|
11135
11135-70021 Seat, Exhaust Valve[08.1982 - 11.1984] 1GGEU..GA61 STD |
11135-70021 |
US $18.05 |
||
|
11135
|
11135
11135-70021 Seat, Exhaust Valve[11.1984 - 12.1985] 1GGEU..GA61 ＳＴＤ,STD |
11135-70021 |
US $18.05 |
||
|
11135
|
11135
11136-70020 Seat, Exhaust Valve[08.1982 - 11.1984] 1GGEU..GA61 Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-70020 |
US $18.05 |
||
| replacement | |||||
|
11135
|
11135
11136-70021 Seat, Exhaust Valve[08.1982 - 11.1984] 1GGEU..GA61 Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-70021 |
US $18.78 |
||
|
11135
|
11135
11136-70021 Seat, Exhaust Valve[11.1984 - 12.1985] 1GGEU..GA61 Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-70021 |
US $18.78 |
||
|
11155A
|
11155A
90253-09002 Pin, Ring W/head[08.1982 - 01.1984] 1GGEU..GA61 |
90253-09002 |
US $2.33 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[01.1984 - 12.1985] 1GGEU..GA61 |
90253-10004 |
US $1.92 |
||
|
11159A
|
11159A
90105-06034 Bolt(For Head To Camshaft Bearing Cap)[08.1982 - 01.1984] 1GGEU..GA61 |
90105-06034 |
US $4.22 |
||
|
11159A
|
11159A
90119-07002 Bolt(For Head To Camshaft Bearing Cap)[01.1984 - 12.1985] 1GGEU..GA61 |
90119-07002 |
US $3.20 |
||
|
11181A
|
11181A
11181-88300 Cover, Cylinder Head, Rear[08.1982 - 12.1985] 1GGEU..GA61 |
11181-88300 |
US $46.59 |
||
|
11182
|
11182
11182-88300
Gasket, Cylinder Head Rear Plate
[08.1982 - 12.1985] 1GGEU..GA61 |
11182-88300 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-70030 Gasket, Cylinder Head Rear Plate[08.1982 - 12.1985] 1GGEU..GA61 |
11182-70030 |
US $4.96 |
||
|
11201
|
11201
11201-79025
Cover Sub-Assy, Cylinder Head
[08.1982 - 08.1985] 1GGEU..GA61 NO.1 |
11201-79025 |
— | ||
| replacements | |||||
|
11201
|
11201
11213-88341 Gasket, Cylinder Head Cover[08.1982 - 08.1985] 1GGEU..GA61 NO.1 |
11213-88341 |
US $34.35 |
||
|
11201
|
11201
11201-88300 Cover Sub-Assy, Cylinder Head[08.1982 - 08.1985] 1GGEU..GA61 NO.1 |
11201-88300 |
US $451.36 |
||
|
11201
|
11201
11201-88300 Cover Sub-Assy, Cylinder Head[08.1985 - 12.1985] 1GGEU..GA61 NO.1 |
11201-88300 |
US $451.36 |
||
|
11201
|
11201
11212-79015 Cover Sub-Assy, Cylinder Head[08.1982 - 08.1985] 1GGEU..GA61 NO.2 |
11212-79015 |
US $281.01 |
||
| replacements | |||||
|
11201
|
11201
11213-88341 Gasket, Cylinder Head Cover[08.1982 - 08.1985] 1GGEU..GA61 NO.2 |
11213-88341 |
US $34.35 |
||
|
11201
|
11201
11212-88300 Cover Sub-Assy, Cylinder Head[08.1982 - 08.1985] 1GGEU..GA61 NO.2 |
11212-88300 |
US $310.13 |
||
|
11201
|
11201
11212-88300 Cover Sub-Assy, Cylinder Head[08.1985 - 12.1985] 1GGEU..GA61 NO.2 |
11212-88300 |
US $310.13 |
||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[08.1982 - 12.1985] 1GGEU..GA61 |
90210-07001 |
from US $2.52 |
||
|
11201T
|
11201T
90249-08089 Pin(For Cylinder Head Cover)[08.1982 - 12.1985] 1GGEU..GA61 |
90249-08089 |
US $7.86 |
||
|
11201U
|
11201U
90385-07001 Bush(For Cylinder Head Cover)[08.1982 - 12.1985] 1GGEU..GA61 |
90385-07001 |
US $9.46 |
||
|
11213
|
11213
11213-88300 Gasket, Cylinder Head Cover[08.1982 - 08.1985] 1GGEU..GA61 |
11213-88300 |
US $30.58 |
||
| replacement | |||||
|
11213
|
11213
11213-88341 Gasket, Cylinder Head Cover[08.1982 - 08.1985] 1GGEU..GA61 |
11213-88341 |
US $34.35 |
||
|
11213
|
11213
11213-88301
Gasket, Cylinder Head Cover
[08.1985 - 12.1985] 1GGEU..GA61 |
11213-88301 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-88341 Gasket, Cylinder Head Cover[08.1985 - 12.1985] 1GGEU..GA61 |
11213-88341 |
US $34.35 |
||
|
11214
|
11214
11214-88300 Gasket, Cylinder Head Cover, No.2[08.1982 - 12.1985] 1GGEU..GA61 FR |
11214-88300 |
US $8.59 |
||
|
11214
|
11214
11229-88300
Gasket, Cylinder Head Cover, No.2
[08.1982 - 12.1985] 1GGEU..GA61 RR |
11229-88300 |
— | ||
|
11219
|
11219
11219-88300
Cover, Cylinder Head, No.3
[08.1982 - 12.1985] 1GGEU..GA61 |
11219-88300 |
— | ||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[08.1982 - 07.1983] 1GGEU..GA61; 3TGTEU,4TGTEU..TA63,64 |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[08.1982 - 07.1983] 1GGEU..GA61; 3TGTEU,4TGTEU..TA63,64 |
12180-E0010 |
US $16.26 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[07.1981 - 12.1985] 4AGEU..AA63; 1G#..GA61; 5MGEU,MTEU..MA6#; 1SU..SA60; 2TGEU,3T#,4TGTEU..TA6# |
90430-37140 |
from US $1.25 |
||
|
12208
|
12208
12208-88300
Plate Sub-Assy, Ventilation Baffle
[08.1982 - 11.1983] 1GGEU..GA61 |
12208-88300 |
— | ||
|
12208
|
12208
12208-88301 Plate Sub-Assy, Ventilation Baffle[11.1983 - 12.1985] 1GGEU..GA61 |
12208-88301 |
US $53.44 |
||
|
9011005001
|
9011005001
90110-05001 New Genuine Part |
90110-05001 |
US $1.46 |
||
|
9011908451
|
9011908451
90119-08451 New Genuine Part |
90119-08451 |
US $1.89 |
||
|
9015960167
|
9015960167
90159-60167
New Genuine Part
|
90159-60167 |
— | ||
|
9020106559
|
9020106559
90201-06559 New Genuine Part |
90201-06559 |
US $1.60 |
||
|
9040617001
|
9040617001
90406-17001 Union(For Water By-Pass Hose) |
90406-17001 |
US $5.39 |
||
| replacement | |||||
|
9040617001
|
9040617001
90406-17012
Joint Or Union, Front Heater Hose Through Or Inlet Valve
|
90406-17012 |
— | ||
|
9327026025
|
9327026025
93270-26025 SCREW |
93270-26025 |
US $1.92 |
||
