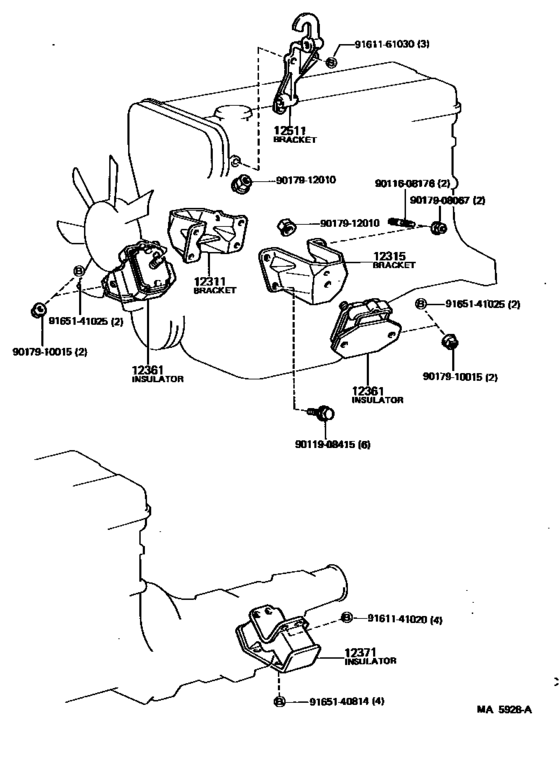

Mounting ([08.1982 - ] (8208- )1GGEU) Diagram Toyota CELICA
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- GT
- body
- LB
- ENGINE
- 1GGEU
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 12.1985
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-70040
Bracket, Engine Mounting, Front No.1 Rh
[08.1982 - 07.1984] 1GGEU..GA61 |
12311-70040 |
— | ||
| replacement | |||||
|
12311
|
12311
12311-70050
Bracket, Engine Mounting, Front No.1 Rh
[08.1982 - 07.1984] 1GGEU..GA61 |
12311-70050 |
— | ||
|
12311
|
12311
12311-70050
Bracket, Engine Mounting, Front No.1 Rh
[07.1984 - 12.1985] 1G#..GA61 |
12311-70050 |
— | ||
|
12315
|
12315
12315-70011
Bracket, Engine Mounting, Front No.1 Lh
[01.1984 - 12.1985] 1G#..GA61 |
12315-70011 |
— | ||
|
12315
|
12315
12315-88300
Bracket, Engine Mounting, Front No.1 Lh
[08.1982 - 12.1982] 1GGEU..GA61 |
12315-88300 |
— | ||
| replacement | |||||
|
12315
|
12315
12315-70011
Bracket, Engine Mounting, Front No.1 Lh
[08.1982 - 12.1982] 1GGEU..GA61 |
12315-70011 |
— | ||
|
12315
|
12315
12315-88301 Bracket, Engine Mounting, Front No.1 Lh[12.1982 - 01.1984] 1GGEU..GA61 |
12315-88301 |
US $42.66 |
||
| replacement | |||||
|
12315
|
12315
12315-70011
Bracket, Engine Mounting, Front No.1 Lh
[12.1982 - 01.1984] 1GGEU..GA61 |
12315-70011 |
— | ||
|
12361
|
12361
12361-41080
Insulator, Engine Mounting, Front
[07.1981 - 07.1983] 1G#..GA61 |
12361-41080 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-49125 Insulator, Engine Mounting, FrontENGINE MOUNTING, FRONT [07.1981 - 07.1983] 1G#..GA61 |
12361-49125 |
US $84.45 |
||
|
12361
|
12361
12361-70030 Insulator, Engine Mounting, Front[07.1983 - 12.1985] 1GGEU..GA61 |
12361-70030 |
US $85.90 |
||
| replacement | |||||
|
12361
|
12361
12361-70031
Insulator, Engine Mounting, Front
[07.1983 - 12.1985] 1GGEU..GA61 |
12361-70031 |
— | ||
|
12371
|
12371
12371-70010
Insulator, Engine Mounting, Rear No.1
[07.1981 - 09.1984] 1G#..GA61 |
12371-70010 |
— | ||
|
12511
|
12511
12511-88300 Bracket, Alternator, No.1[08.1982 - 07.1984] 1GGEU..GA61 |
12511-88300 |
US $68.58 |
||
| replacements | |||||
|
12511
|
12511
12511-88301 Bracket, Alternator, No.1[08.1982 - 07.1984] 1GGEU..GA61 |
12511-88301 |
US $68.43 |
||
|
12511
|
12511
90105-10114 Bolt(For Alternator)[08.1982 - 07.1984] 1GGEU..GA61 |
90105-10114 |
US $3.36 |
||
|
12511
|
12511
90179-10054 Nut, No.1 (For Center Support Bearing)[08.1982 - 07.1984] 1GGEU..GA61 |
90179-10054 |
from US $0.37 |
||
|
12511
|
12511
12511-88301 Bracket, Alternator, No.1[07.1984 - 12.1985] 1GGEU..GA61 |
12511-88301 |
US $68.43 |
||
|
9011608176
|
9011608176
90116-08176 New Genuine Part |
90116-08176 |
US $3.64 |
||
|
9011908415
|
9011908415
90119-08415 New Genuine Part |
90119-08415 |
US $1.44 |
||
|
9017908067
|
9017908067
90179-08067 New Genuine Part |
90179-08067 |
US $1.75 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.13 |
||
|
9017912010
|
9017912010
90179-12010 NUT |
90179-12010 |
US $3.04 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
