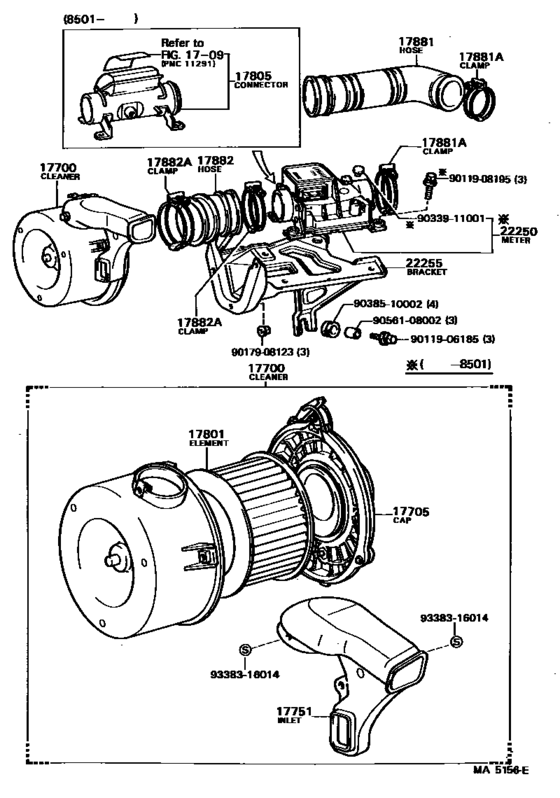

Air Cleaner ([07.1981 - ] (8107- )1GEU) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 12.1985
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-43040 Cleaner Assy, AirAIR [07.1981 - 12.1985] 1G#..GA61; 5MGEU..MA61 |
17700-43040 |
US $339.25 |
||
|
17705
|
17705
17705-43030
Cap Sub-Assy, Air Cleaner
[07.1981 - 12.1985] 1G#..GA61; 5MGEU..MA61 |
17705-43030 |
— | ||
|
17751
|
17751
17751-43020
Inlet, Air Cleaner, No.1
[07.1981 - 12.1985] 1G#..GA61; 5MGEU..MA61 |
17751-43020 |
— | ||
|
17801
|
17801
17801-41110 Element Sub-Assy, Air Cleaner Filter[07.1981 - 12.1985] 1G#..GA61; 5MGEU..MA61 |
17801-41110 |
US $44.69 |
||
|
17805
|
17805
17805-70040
Connector Sub-Assy, Intake Air
[01.1985 - 12.1985] 1GEU..GA61 |
17805-70040 |
— | ||
|
17881
|
17881
17881-70020 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [07.1981 - 12.1985] 1GEU..GA61 |
17881-70020 |
US $61.59 |
||
|
17881A
|
17881A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[07.1981 - 12.1985] 1GEU..GA61 THROTTLE BODY SIDE |
96111-10710 |
from US $2.56 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[07.1981 - 12.1985] 1GEU..GA61 AIR FLOW METER SIDE; 3TGTEU,4TGTEU..TA63,64 AIR FLOW METER SIDE |
96111-10800 |
from US $2.56 |
||
|
17882
|
17882
17882-70020
Hose, Air Cleaner, No.2
[07.1981 - 12.1985] 1GEU..GA61 |
17882-70020 |
— | ||
|
17882A
|
17882A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[07.1981 - 12.1985] 1GEU..GA61 AIR FLOW METER SIDE,ID=80; MTEU..MA63 AIR FLOW METER SIDE,ID=80 |
96111-10800 |
from US $2.56 |
||
|
17882A
|
17882A
96111-10900 Clamp, Hose[07.1981 - 12.1985] 1GEU..GA61 AIR CLEANER SIDE; 5MGEU..MA61 AIR FLOW METER SIDE |
96111-10900 |
from US $1.27 |
||
|
22250
|
22250
22250-70020 Meter Assy, Intake Air FlowINTAKE AIR FLOW [07.1981 - 08.1983] 1GEU..GA61 |
22250-70020 |
US $921.65 |
||
|
22250
|
22250
22250-70070 Meter Assy, Intake Air FlowINTAKE AIR FLOW [08.1983 - 01.1985] 1GEU..GA61 |
22250-70070 |
US $917.28 |
||
|
22255
|
22255
22255-43040 Bracket, Air Flow MeterAIR FLOW METER [07.1981 - 12.1985] 1G#..GA61; 5MGEU..MA61 |
22255-43040 |
US $101.92 |
||
|
9011906185
|
9011906185
90119-06185 New Genuine Part |
90119-06185 |
US $1.89 |
||
| replacement | |||||
|
9011906185
|
9011906185
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9011908195
|
9011908195
90119-08195
New Genuine Part
|
90119-08195 |
— | ||
| replacement | |||||
|
9011908195
|
9011908195
91651-40818 BOLT, W-WASHER |
91651-40818 |
US $1.28 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9033911001
|
9033911001
90339-11001
New Genuine Part
|
90339-11001 |
— | ||
|
9038510002
|
9038510002
90385-10002
Bush(For Brake Traction Actuator Bracket)
|
90385-10002 |
— | ||
|
9056108002
|
9056108002
90561-08002 Spacer(For Brake Traction Actuator Bracket) |
90561-08002 |
US $4.89 |
||
|
9338316014
|
9338316014
93383-16014
New Genuine Part
|
93383-16014 |
— | ||
