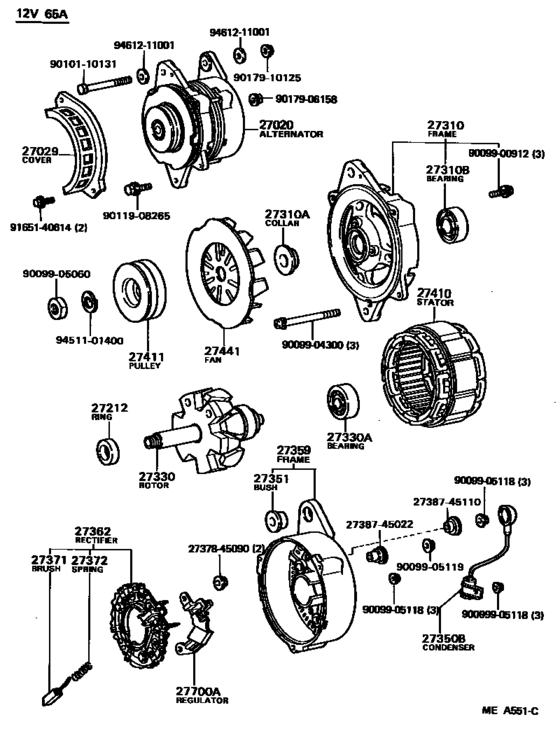

Alternator ([07.1981 - 08.1983] (8107-8308)1GEU) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 12.1985
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-70040 Alternator Assy[07.1981 - 08.1983] 1GEU..GA61 １２Ｖ ６５Ａ |
27060-70040 |
US $1,485.12 |
||
|
27020
|
27020
27060-70080 Alternator Assy[08.1983 - 12.1985] 1GEU..GA61 １２Ｖ ６０Ａ |
27060-70080 |
US $1,389.02 |
||
|
27029
|
27029
27029-70010
Cover, Alternator
[07.1981 - 08.1983] 1GEU..GA61 12V 65A |
27029-70010 |
— | ||
|
27212
|
27212
27412-45070
Ring, Space(For Alternator Rotor)
[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6# 12V 55A,60A,65A |
27412-45070 |
— | ||
|
27310
|
27310
27310-70030
Frame Assy, Drive End, Alternator
[07.1981 - 08.1983] 1GEU..GA61 12V 65A |
27310-70030 |
— | ||
|
27310
|
27310
27310-70080
Frame Assy, Drive End, Alternator
[08.1983 - 01.1985] 1GEU..GA61 12V 60A |
27310-70080 |
— | ||
|
27310
|
27310
27310-70081
Frame Assy, Drive End, Alternator
[01.1985 - 12.1985] 1GEU..GA61 12V 60A |
27310-70081 |
— | ||
|
27310A
|
27310A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6# 12V 55A,60A,65A |
27412-31040 |
— | ||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6# 12V 55A,60A,65A |
90099-10125 |
US $9.61 |
||
|
27310B
|
27310B
90099-10141
Bearing(For Alternator Drive End Frame)
[08.1983 - 09.1983] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
90099-10141 |
— | ||
|
27310B
|
27310B
90099-10152
Bearing(For Alternator Drive End Frame)
[09.1983 - 01.1985] 4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
90099-10152 |
— | ||
|
27310B
|
27310B
90099-10159
Bearing(For Alternator Drive End Frame)
[01.1985 - 12.1985] 4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
90099-10159 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[01.1985 - 12.1985] 4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
90099-10199 |
from US $19.39 |
||
|
27330
|
27330
27330-43040
Rotor Assy, Alternator
[07.1981 - 08.1983] 3TEU..TA63..4FC 12V 60A; 18RGEU,1GEU,5MGEU,2TGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,TA6# 12V 65A |
27330-43040 |
— | ||
|
27330
|
27330
27330-63021
Rotor Assy, Alternator
[08.1983 - 01.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27330-63021 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[08.1983 - 01.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27330-72101 |
— | ||
|
27330
|
27330
27330-72100
Rotor Assy, Alternator
[01.1985 - 12.1985] 4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27330-72100 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[01.1985 - 12.1985] 4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6# 12V 55A,60A,65A |
90099-10116 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1983 - 12.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
90099-10140 |
from US $9.43 |
||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,TA6# 12V 55A,60A,65A |
90099-52065 |
US $3.45 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,TA6# 12V 55A,60A,65A |
90099-52034 |
— | ||
|
27351
|
27351
27351-70010
Bush, Alternator Bracket
[07.1981 - 12.1985] 1GEU..GA61 12V 65A |
27351-70010 |
— | ||
|
27359
|
27359
27359-70030
Frame, Alternator Rectifier End
[07.1981 - 08.1983] 1GEU..GA61 12V 65A |
27359-70030 |
— | ||
|
27359
|
27359
27359-70080
Frame, Alternator Rectifier End
[08.1983 - 04.1984] 1GEU..GA61 12V 60A |
27359-70080 |
— | ||
| replacements | |||||
|
27359
|
27359
27370-58320 Holder Assy, Alternator Brush[08.1983 - 04.1984] 1GEU..GA61 12V 60A |
27370-58320 |
from US $16.97 |
||
|
27359
|
27359
27359-70081
Frame, Alternator Rectifier End
[08.1983 - 04.1984] 1GEU..GA61 12V 60A |
27359-70081 |
— | ||
|
27359
|
27359
27359-70081
Frame, Alternator Rectifier End
[04.1984 - 12.1985] 1GEU..GA61 12V 60A |
27359-70081 |
— | ||
|
27362
|
27362
27362-43040
Rectifier Assy, W/brush
[07.1981 - 08.1983] 3TEU..TA63..4FC 12V 60A; 18RGEU,1GEU,5MGEU,2TGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,TA6# 12V 65A |
27362-43040 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6# 12V 55A,60A,65A |
27371-31011 |
from US $2.80 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[08.1983 - 12.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1983 - 12.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6# 12V 55A,60A,65A |
27372-31011 |
— | ||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[08.1983 - 01.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1983 - 01.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27372-87501 |
— | ||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[01.1985 - 12.1985] 4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[01.1985 - 12.1985] 4AGEU,1G#,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27372-87501 |
— | ||
|
27410
|
27410
27410-43040
Stator Assy, Alternator
[07.1981 - 08.1983] 3TEU..TA63..4FC 12V 60A; 18RGEU,1GEU,5MGEU,1SU,2TGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,SA60,TA6# 12V 55A,65A |
27410-43040 |
— | ||
|
27411
|
27411
27411-45010
Pulley, Alternator
[07.1981 - 08.1983] 1GEU..GA61 12V 65A |
27411-45010 |
— | ||
|
27411
|
27411
27411-70090
Pulley, Alternator
[08.1983 - 01.1985] 1GEU..GA61 12V 60A |
27411-70090 |
— | ||
|
27411
|
27411
27411-70091
Pulley, Alternator
[01.1985 - 12.1985] 1GEU..GA61 12V 60A |
27411-70091 |
— | ||
|
27441
|
27441
27441-70040
Fan, Alternator
[07.1981 - 08.1983] 1GEU..GA61 12V 65A |
27441-70040 |
— | ||
|
27700A
|
27700A
27700-43010 Regulator Assy, Generator[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,2TGEU,3T#,4TGTEU,MTEU..GA61,MA6#,RA63,TA6# 12V 55A,60A,65A |
27700-43010 |
US $264.99 |
||
|
27700A
|
27700A
27700-63021 Regulator Assy, Generator[08.1983 - 12.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27700-63021 |
US $285.38 |
||
| replacement | |||||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[08.1983 - 12.1985] 4AGEU,1GEU,5MGEU,MTEU..AA63,GA61,MA6# 12V 60A |
27700-70030 |
US $263.54 |
||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9010110131
|
9010110131
90101-10131 Shaft, Clutch Pedal |
90101-10131 |
US $3.84 |
||
|
9011908265
|
9011908265
90119-08265 New Genuine Part |
90119-08265 |
US $2.48 |
||
| replacement | |||||
|
9011908265
|
9011908265
90119-08743 New Genuine Part |
90119-08743 |
US $1.44 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
