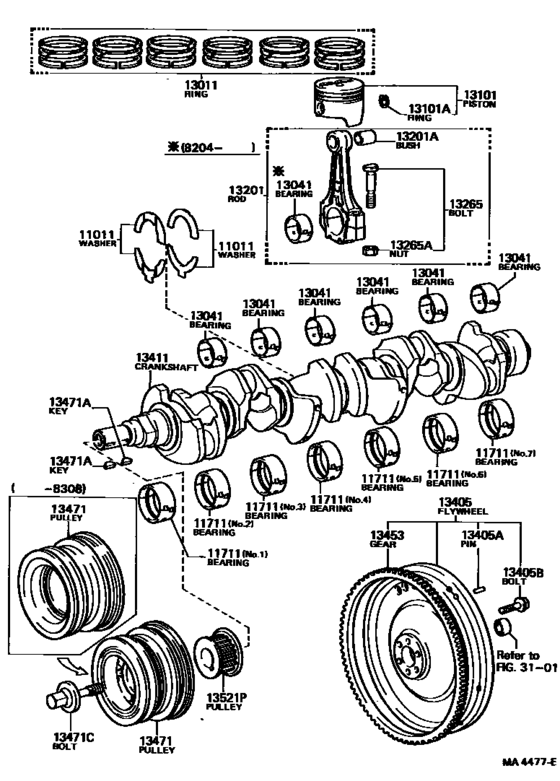

Crankshaft & Piston ([07.1981 - ] (8107- )1GEU) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 12.1985
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-70010 Washer Set, Crankshaft Thrust[07.1981 - 12.1985] 1G#..GA61 ＳＴＤ,STD |
11011-70010 |
US $13.10 |
||
|
11711
|
11711
11071-70010-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"1",*53,MARK 1; 1GEU..GA61 NO.1,MARK"1",MARK 1 |
11071-70010-01 |
US $49.50 |
||
| replacements | |||||
|
11711
|
11711
11071-70013-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"1",*53,MARK 1; 1GEU..GA61 NO.1,MARK"1",MARK 1 |
11071-70013-01 |
US $49.07 |
||
|
11711
|
11711
11071-88300-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"1",*53,MARK 1; 1GEU..GA61 NO.1,MARK"1",MARK 1 |
11071-88300-01 |
US $49.50 |
||
|
11711
|
11711
11071-70010-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"2",*53,MARK 2; 1GEU..GA61 NO.1,MARK"2",MARK 2 |
11071-70010-02 |
US $49.50 |
||
| replacements | |||||
|
11711
|
11711
11071-70013-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"2",*53,MARK 2; 1GEU..GA61 NO.1,MARK"2",MARK 2 |
11071-70013-02 |
US $49.07 |
||
|
11711
|
11711
11071-88300-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"2",*53,MARK 2; 1GEU..GA61 NO.1,MARK"2",MARK 2 |
11071-88300-02 |
US $49.50 |
||
|
11711
|
11711
11071-70010-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"3",*53,MARK 3; 1GEU..GA61 NO.1,MARK"3",MARK 3 |
11071-70010-03 |
US $49.50 |
||
| replacements | |||||
|
11711
|
11711
11071-70013-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"3",*53,MARK 3; 1GEU..GA61 NO.1,MARK"3",MARK 3 |
11071-70013-03 |
from US $19.95 |
||
|
11711
|
11711
11071-88300-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GGEU..GA61 NO.1,MARK"3",*53,MARK 3; 1GEU..GA61 NO.1,MARK"3",MARK 3 |
11071-88300-03 |
US $49.50 |
||
|
11711
|
11711
11701-70011-01 Bearing, CrankshaftCRANKSHAFT [07.1981 - 08.1981] 1GEU..GA61 NO.2,3,4,5,6 MARK"1",MARK 1 |
11701-70011-01 |
US $39.31 |
||
|
11711
|
11711
11701-70011-02 Bearing, CrankshaftCRANKSHAFT [07.1981 - 08.1981] 1GEU..GA61 NO.2,3,4,5,6 MARK"2",MARK 2 |
11701-70011-02 |
US $39.31 |
||
|
11711
|
11711
11701-70011-03
Bearing, Crankshaft
[07.1981 - 08.1981] 1GEU..GA61 NO.2,3,4,5,6 MARK"3",MARK 3 |
11701-70011-03 |
— | ||
|
11711
|
11711
11701-70012-01 Bearing, Crankshaft[07.1981 - 08.1981] 1GEU..GA61 NO.1,7 MARK"1",MARK 1 |
11701-70012-01 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-01 Bearing, Crankshaft[07.1981 - 08.1981] 1GEU..GA61 NO.1,7 MARK"1",MARK 1 |
11701-63022-01 |
from US $22.72 |
||
|
11711
|
11711
11701-70012-02 Bearing, Crankshaft[07.1981 - 08.1981] 1GEU..GA61 NO.1,7 MARK"2",MARK 2 |
11701-70012-02 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-02 Bearing, Crankshaft[07.1981 - 08.1981] 1GEU..GA61 NO.1,7 MARK"2",MARK 2 |
11701-63022-02 |
from US $22.72 |
||
|
11711
|
11711
11701-70012-03 Bearing, Crankshaft[07.1981 - 08.1981] 1GEU..GA61 NO.1,7 MARK"3",MARK 3 |
11701-70012-03 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-03 Bearing, Crankshaft[07.1981 - 08.1981] 1GEU..GA61 NO.1,7 MARK"3",MARK 3 |
11701-63022-03 |
US $48.40 |
||
|
11711
|
11711
11701-70020-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"1",MARK 1; 1GGEU..GA61 NO.2,3,MARK"1",*53,MARK 1 |
11701-70020-01 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-01 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"1",MARK 1; 1GGEU..GA61 NO.2,3,MARK"1",*53,MARK 1 |
11701-63022-01 |
from US $22.72 |
||
|
11711
|
11711
11701-70020-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"2",MARK 2; 1GGEU..GA61 NO.2,3,MARK"2",*53,MARK 2 |
11701-70020-02 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-02 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"2",MARK 2; 1GGEU..GA61 NO.2,3,MARK"2",*53,MARK 2 |
11701-63022-02 |
from US $22.72 |
||
|
11711
|
11711
11701-70020-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"3",MARK 3; 1GGEU..GA61 NO.2,3,MARK"3",*53,MARK 3 |
11701-70020-03 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-03 Bearing, Crankshaft[02.1985 - 12.1985] 1GEU..GA61 NO.2,3,MARK"3",MARK 3; 1GGEU..GA61 NO.2,3,MARK"3",*53,MARK 3 |
11701-63022-03 |
US $48.40 |
||
|
13011
|
13011
13011-70010
Ring Set, Piston
[07.1981 - 12.1985] 1GEU..GA61 ＳＴＤ,STD |
13011-70010 |
— | ||
|
13011
|
13011
13013-70010 Ring Set, Piston[07.1981 - 12.1985] 1GEU..GA61 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-70010 |
US $253.34 |
||
|
13011
|
13011
13014-70010 Ring Set, Piston[07.1981 - 12.1985] 1GEU..GA61 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-70010 |
US $253.34 |
||
|
13011
|
13011
13015-70010 Ring Set, Piston[07.1981 - 12.1985] 1GEU..GA61 Ｏ／Ｓ １．００,O/S 1.00 |
13015-70010 |
US $253.34 |
||
|
13041
|
13041
13041-70010-03 Bearing, Connecting Rod[07.1981 - 12.1985] 1GEU..GA61 MARK"3",MARK 3 |
13041-70010-03 |
US $29.85 |
||
|
13041
|
13041
13041-70010-04 Bearing, Connecting Rod[07.1981 - 12.1985] 1GEU..GA61 MARK"4",MARK 4 |
13041-70010-04 |
US $29.85 |
||
|
13041
|
13041
13041-70010-05 Bearing, Connecting Rod[07.1981 - 12.1985] 1GEU..GA61 MARK"5",MARK 5 |
13041-70010-05 |
US $29.85 |
||
|
13101
|
13101
13101-70010
Piston Sub-Assy, W/pin
[07.1981 - 12.1985] 1GEU..GA61 ＳＴＤ,STD |
13101-70010 |
— | ||
|
13101
|
13101
13103-70010 Piston Sub-Assy, W/pin[07.1981 - 12.1985] 1GEU..GA61 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-70010 |
US $90.27 |
||
|
13101
|
13101
13104-70010 Piston Sub-Assy, W/pin[07.1981 - 12.1985] 1GEU..GA61 Ｏ／Ｓ ０．７５,O/S 0.75 |
13104-70010 |
US $90.27 |
||
|
13101
|
13101
13105-70010 Piston Sub-Assy, W/pin[07.1981 - 12.1985] 1GEU..GA61 Ｏ／Ｓ １．００,O/S 1.00 |
13105-70010 |
US $90.27 |
||
|
13101A
|
13101A
90521-21088 Ring, Hole Snap(For Piston Pin)[07.1981 - 12.1985] 1GEU..GA61 |
90521-21088 |
US $1.79 |
||
|
13201
|
13201
13201-70010 Rod Sub-Assy, Connecting[07.1981 - 04.1982] 1GEU..GA61 |
13201-70010 |
US $97.55 |
||
| replacements | |||||
|
13201
|
13201
13041-70010-03 Bearing, Connecting Rod[07.1981 - 04.1982] 1GEU..GA61 |
13041-70010-03 |
US $29.85 |
||
|
13201
|
13201
13041-70010-04 Bearing, Connecting Rod[07.1981 - 04.1982] 1GEU..GA61 |
13041-70010-04 |
US $29.85 |
||
|
13201
|
13201
13041-70010-05 Bearing, Connecting Rod[07.1981 - 04.1982] 1GEU..GA61 |
13041-70010-05 |
US $29.85 |
||
|
13201
|
13201
13201-13010 Rod Sub-Assy, Connecting[07.1981 - 04.1982] 1GEU..GA61 |
13201-13010 |
US $101.92 |
||
|
13201
|
13201
13201-79015
Rod Sub-Assy, Connecting
[04.1982 - 07.1982] 1GEU..GA61 |
13201-79015 |
— | ||
| replacements | |||||
|
13201
|
13201
13041-70010-03 Bearing, Connecting Rod[04.1982 - 07.1982] 1GEU..GA61 |
13041-70010-03 |
US $29.85 |
||
|
13201
|
13201
13041-70010-04 Bearing, Connecting Rod[04.1982 - 07.1982] 1GEU..GA61 |
13041-70010-04 |
US $29.85 |
||
|
13201
|
13201
13041-70010-05 Bearing, Connecting Rod[04.1982 - 07.1982] 1GEU..GA61 |
13041-70010-05 |
US $29.85 |
||
|
13201
|
13201
13201-13010 Rod Sub-Assy, Connecting[04.1982 - 07.1982] 1GEU..GA61 |
13201-13010 |
US $101.92 |
||
|
13201
|
13201
13201-79055 Rod Sub-Assy, Connecting[07.1982 - 10.1984] 1GEU..GA61 |
13201-79055 |
US $228.59 |
||
| replacement | |||||
|
13201
|
13201
13201-79056 Rod Sub-Assy, Connecting[07.1982 - 10.1984] 1GEU..GA61 |
13201-79056 |
US $216.94 |
||
|
13201
|
13201
13201-79056 Rod Sub-Assy, Connecting[10.1984 - 12.1985] 1GEU..GA61 |
13201-79056 |
US $216.94 |
||
|
13201A
|
13201A
90999-73070 Bush(For Connecting Rod Small End)[07.1981 - 12.1985] 1G#..GA61 |
90999-73070 |
US $8.74 |
||
|
13265
|
13265
13265-29015
Bolt, Connecting Rod
[07.1981 - 07.1985] 1G#..GA61 |
13265-29015 |
— | ||
| replacements | |||||
|
13265
|
13265
13265-70020 Bolt, Connecting Rod[07.1981 - 07.1985] 1G#..GA61 |
13265-70020 |
from US $3.24 |
||
|
13265
|
13265
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[07.1981 - 07.1985] 1G#..GA61 |
90170-09001 |
US $2.72 |
||
|
13265
|
13265
13265-70010 Bolt, Connecting Rod[07.1985 - 12.1985] 1G#..GA61 |
13265-70010 |
US $7.13 |
||
| replacement | |||||
|
13265
|
13265
13265-70020 Bolt, Connecting Rod[07.1985 - 12.1985] 1G#..GA61 |
13265-70020 |
from US $3.24 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[07.1981 - 03.1983] 1G#..GA61 |
90170-09001 |
US $2.72 |
||
|
13411
|
13411
13411-70010 Crankshaft[07.1981 - 08.1981] 1GEU..GA61 |
13411-70010 |
US $1,399.22 |
||
| replacement | |||||
|
13411
|
13411
13411-70905 Crankshaft[07.1981 - 08.1981] 1GEU..GA61 |
13411-70905 |
US $1,394.85 |
||
|
13411
|
13411
13411-70011 Crankshaft[08.1981 - 08.1984] 1GEU..GA61 |
13411-70011 |
US $1,394.85 |
||
| replacement | |||||
|
13411
|
13411
13411-70905 Crankshaft[08.1981 - 08.1984] 1GEU..GA61 |
13411-70905 |
US $1,394.85 |
||
|
13411
|
13411
13411-70012 Crankshaft[08.1984 - 12.1985] 1GEU..GA61 |
13411-70012 |
US $1,394.85 |
||
| replacement | |||||
|
13411
|
13411
13411-70905 Crankshaft[08.1984 - 12.1985] 1GEU..GA61 |
13411-70905 |
US $1,394.85 |
||
|
13471
|
13471
13407-70031 Pulley, CrankshaftCRANKSHAFT [01.1982 - 08.1983] 1GEU..GA61 |
13407-70031 |
US $237.33 |
||
|
13471
|
13471
13407-70040 Pulley, Crankshaft[07.1981 - 01.1982] 1GEU..GA61 |
13407-70040 |
US $237.33 |
||
| replacement | |||||
|
13471
|
13471
13407-70031 Pulley, CrankshaftCRANKSHAFT [07.1981 - 01.1982] 1GEU..GA61 |
13407-70031 |
US $237.33 |
||
|
13471
|
13471
13407-70060 Pulley, Crankshaft[08.1983 - 12.1985] 1GEU..GA61 |
13407-70060 |
US $334.88 |
||
| replacement | |||||
|
13471
|
13471
13407-70050 Pulley, Crankshaft[08.1983 - 12.1985] 1GEU..GA61 |
13407-70050 |
US $331.97 |
||
|
13471A
|
13471A
95161-10519 Key(For Oil Pump Drive Spline)[07.1981 - 12.1985] 1G#..GA61; 1SU..SA60 |
95161-10519 |
from US $1.68 |
||
|
13471C
|
13471C
90105-18001 Bolt(For Crankshaft Pulley Set)[07.1981 - 12.1985] 1G#..GA61 *18-1.5PX40-20 |
90105-18001 |
US $13.92 |
||
|
13521P
|
13521P
13521-70010 Pulley, Crankshaft Timing[07.1981 - 05.1984] 1GEU..GA61 |
13521-70010 |
US $29.56 |
||
| replacement | |||||
|
13521P
|
13521P
13521-70011 Pulley, Crankshaft Timing[07.1981 - 05.1984] 1GEU..GA61 |
13521-70011 |
US $29.70 |
||
|
13521P
|
13521P
13521-70011 Pulley, Crankshaft Timing[05.1984 - 07.1984] 1GEU..GA61 |
13521-70011 |
US $29.70 |
||
|
13521P
|
13521P
13521-70030 Pulley, Crankshaft Timing[07.1984 - 12.1985] 1GEU..GA61 |
13521-70030 |
US $29.85 |
||
