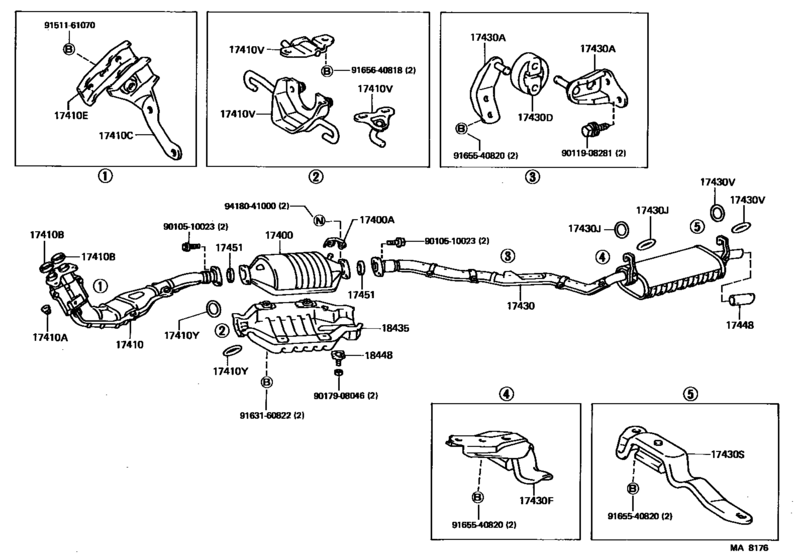

Exhaust Pipe ([01.1985 - ] (8501- )1GEU) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 12.1985
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
17400-41040 Converter Assy, W/catalyst[07.1981 - 08.1983] 1GEU,5MGEU..GA61,MA61 |
17400-41040 |
US $1,099.28 |
||
|
17400
|
17400
18450-70040 Converter Assy, W/catalyst[01.1985 - 12.1985] 1GEU..GA61 |
18450-70040 |
US $1,327.87 |
||
| replacement | |||||
|
17400
|
17400
18450-70070 Converter Assy, W/catalyst[01.1985 - 12.1985] 1GEU..GA61 |
18450-70070 |
US $1,499.68 |
||
|
17400A
|
17400A
18491-63010 Flange, Thermosenser Inlet[01.1985 - 12.1985] 1GEU..GA61 |
18491-63010 |
US $11.68 |
||
|
17400A
|
17400A
18491-70010 Flange, Thermosenser InletTHERMOSENSER INLET [07.1981 - 08.1983] 1GEU,5MGEU..GA61,MA61 |
18491-70010 |
US $13.98 |
||
|
17410
|
17410
17410-70020 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [07.1981 - 01.1985] 1GEU..GA61 |
17410-70020 |
US $347.98 |
||
|
17410
|
17410
17410-70060 Pipe Assy, Exhaust, Front[01.1985 - 12.1985] 1GEU..GA61 |
17410-70060 |
US $554.74 |
||
| replacement | |||||
|
17410
|
17410
17410-70100 Pipe Assy, Exhaust, Front[01.1985 - 12.1985] 1GEU..GA61 |
17410-70100 |
US $564.93 |
||
|
17410A
|
17410A
90179-10028 Nut, Exhaust Pipe Set Stud Bolt[07.1981 - 02.1984] 18RGEU,4AGEU,1G#,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..AA63,GA61,MA6#,RA63,SA60,TA6# |
90179-10028 |
from US $2.59 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[02.1984 - 12.1985] 4AGEU,1G#,5MGEU,1SU,3TGTEU,MTEU..AA63,GA61,MA6#,SA60,TA63 |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[02.1984 - 12.1985] 4AGEU,1G#,5MGEU,1SU,3TGTEU,MTEU..AA63,GA61,MA6#,SA60,TA63 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU..AA63,GA61,MA61,RA63 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU..AA63,GA61,MA61,RA63 |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-70020 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [07.1981 - 01.1985] 1GEU..GA61 |
17571-70020 |
US $14.85 |
||
|
17410C
|
17410C
17571-70030 Bracket, Exhaust Pipe Front (For Front)[01.1985 - 12.1985] 1GEU..GA61 |
17571-70030 |
US $14.27 |
||
|
17410E
|
17410E
90917-04030 Clamp No.1, Exhaust Pipe Front (For Front)[01.1985 - 12.1985] 1GEU..GA61 |
90917-04030 |
US $4.89 |
||
|
17410V
|
17410V
17503-70020
Bracket, Exhaust Pipe Front (For Rear)
[07.1981 - 08.1983] 1GEU,5MGEU..GA61,MA61 CCO SUPPORT |
17503-70020 |
— | ||
|
17410V
|
17410V
17503-70050 Bracket, Exhaust Pipe Front (For Rear)EXHAUST PIPE FRONT (FOR REAR) [01.1985 - 12.1985] 1GEU..GA61 CCO SUPPORT |
17503-70050 |
US $33.63 |
||
|
17410V
|
17410V
17504-70010 Bracket, Exhaust Pipe Front (For Rear)[07.1981 - 12.1985] 1G#,5MGEU,MTEU..GA61,MA6# SIDE MEMBER |
17504-70010 |
US $18.64 |
||
|
17410V
|
17410V
17505-70020
Bracket, Exhaust Pipe Front (For Rear)
[07.1981 - 12.1985] 1G#,5MGEU,MTEU..GA61,MA6# ENGINE RR SUPPORT MEMBER |
17505-70020 |
— | ||
|
17410Y
|
17410Y
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..AA63,GA61,MA6#,RA63,SA60,TA6# |
90301-36001 |
from US $5.05 |
||
|
17430
|
17430
17430-70040 Pipe Assy, Exhaust, TailEXHAUST, TAIL [07.1981 - 08.1983] 1GEU,5MGEU,MTEU..GA61,MA6# |
17430-70040 |
US $612.98 |
||
|
17430
|
17430
17430-70190 Pipe Assy, Exhaust, TailEXHAUST, TAIL [01.1985 - 12.1985] 1GEU..GA61 |
17430-70190 |
US $623.17 |
||
|
17430A
|
17430A
17506-28010 Bracket, Exhaust Tail Pipe(For Front)[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,2TGEU,3T#,MTEU..AA63,GA61,MA6#,RA63,TA61,63 UPR |
17506-28010 |
US $19.51 |
||
| replacement | |||||
|
17430A
|
17430A
17506-41070 Bracket, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,2TGEU,3T#,MTEU..AA63,GA61,MA6#,RA63,TA61,63 UPR |
17506-41070 |
US $19.36 |
||
|
17430A
|
17430A
17509-28010 Bracket, Exhaust Tail Pipe(For Front)[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,2TGEU,3T#,MTEU..AA63,GA61,MA6#,RA63,TA61,63 LWR |
17509-28010 |
US $16.60 |
||
|
17430D
|
17430D
17565-15010 Bolt Or Ring, Exhaust Pipe Front (For Center)[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,2TGEU,3T#,MTEU..AA63,GA61,MA6#,RA63,TA61,63 |
17565-15010 |
US $10.19 |
||
|
17430F
|
17430F
17507-28010
Bracket, Exhaust Tail Pipe(For Center)
[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,2TGEU,3T#,MTEU..AA63,GA61,MA6#,RA63,TA61,63 |
17507-28010 |
— | ||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..AA63,GA61,MA6#,RA63,SA60,TA6# |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17508-26100
Bracket, Exhaust Tail Pipe (For Rear)
[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..AA63,GA61,MA6#,RA63,SA60,TA6# |
17508-26100 |
— | ||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..AA63,GA61,MA6#,RA63,SA60,TA6# |
90301-34207 |
US $9.92 |
||
|
17448
|
17448
17448-70020 Baffle, Tail Pipe[07.1981 - 12.1985] 18RGEU,4AGEU,1G#,5MGEU,1SU,2TGEU,3T#,4TGTEU,MTEU..AA63,GA61,MA6#,RA63,SA60,TA6# |
17448-70020 |
US $47.90 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[07.1981 - 12.1985] 18RGEU,1G#,5MGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,TA63,64 RR |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[07.1981 - 12.1985] 18RGEU,1G#,5MGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,TA63,64 RR |
90917-06045 |
from US $1.70 |
||
|
17451
|
17451
90917-06023
Gasket, Exhaust Pipe
[07.1981 - 12.1985] 18RGEU,1G#,5MGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,TA63,64 FR |
90917-06023 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06041 Gasket, Exhaust Pipe[07.1981 - 12.1985] 18RGEU,1G#,5MGEU,3TGTEU,4TGTEU,MTEU..GA61,MA6#,RA63,TA63,64 FR |
90917-06041 |
from US $5.99 |
||
|
18435
|
18435
18407-28011 Protector, Catalytic Converter[01.1985 - 12.1985] 1GEU..GA61 |
18407-28011 |
US $46.88 |
||
|
18435
|
18435
18407-41020 Protector, Catalytic Converter[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU..GA61,MA61,RA63 |
18407-41020 |
US $87.36 |
||
|
18448
|
18448
18448-26020 Bracket, Converter Protector, Center[07.1981 - 08.1983] 18RGEU,1GEU,5MGEU,1SU,2TGEU,3TEU..GA61,MA61,RA63,SA60,TA61,63 |
18448-26020 |
US $9.92 |
||
|
18448
|
18448
18448-43010 Bracket, Converter Protector, Center[01.1985 - 12.1985] 1GEU..GA61 |
18448-43010 |
US $7.68 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.98 |
||
|
9011908281
|
9011908281
90119-08281 New Genuine Part |
90119-08281 |
US $1.75 |
||
|
9017908046
|
9017908046
90179-08046 New Genuine Part |
90179-08046 |
US $3.20 |
||
|
9151161070
|
9151161070
91511-61070
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-61070 |
— | ||
| replacement | |||||
|
9151161070
|
9151161070
91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91512-61070 |
US $4.16 |
||
|
9163160822
|
9163160822
91631-60822 BOLT |
91631-60822 |
US $1.12 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
