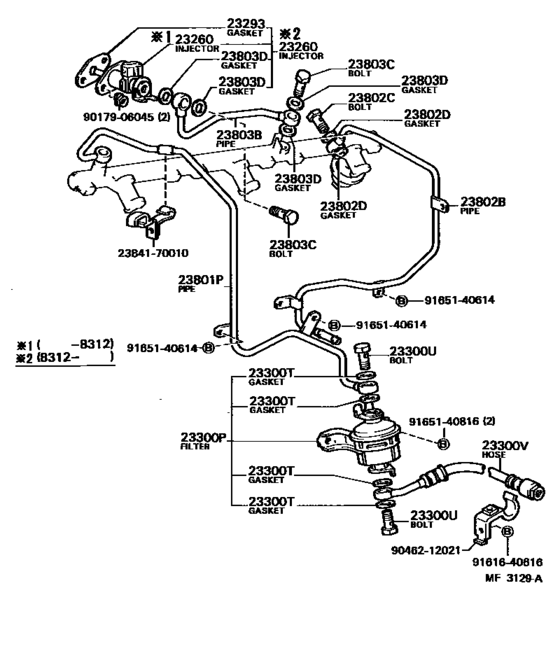

Fuel Injection System ([08.1983 - ] (8308- )1GEU) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 12.1985
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23260
|
23260
23260-70010 Injector Assy, Cold Start Fuel[07.1981 - 08.1981] 1GEU..GA61 |
23260-70010 |
US $136.86 |
||
| replacement | |||||
|
23260
|
23260
23260-79015 Injector Assy, Cold Start Fuel[07.1981 - 08.1981] 1GEU..GA61 |
23260-79015 |
US $152.88 |
||
|
23260
|
23260
23260-70020 Injector Assy, Cold Start Fuel[08.1981 - 12.1983] 1GEU..GA61 |
23260-70020 |
US $136.86 |
||
| replacement | |||||
|
23260
|
23260
23260-79025 Injector Assy, Cold Start Fuel[08.1981 - 12.1983] 1GEU..GA61 |
23260-79025 |
US $139.78 |
||
|
23260
|
23260
23260-79025 Injector Assy, Cold Start Fuel[12.1983 - 01.1985] 1GEU..GA61 |
23260-79025 |
US $139.78 |
||
|
23260
|
23260
23260-79075
Injector Assy, Cold Start Fuel
[01.1985 - 12.1985] 1GEU..GA61 |
23260-79075 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-79076
Injector Assy, Cold Start Fuel
[01.1985 - 12.1985] 1GEU..GA61 |
23260-79076 |
— | ||
|
23293
|
23293
23293-70010 Gasket, Cold Start Injector[07.1981 - 01.1985] 1GEU..GA61 |
23293-70010 |
US $4.95 |
||
|
23293
|
23293
23293-70020 Gasket, Cold Start Injector[01.1985 - 12.1985] 1GEU..GA61 |
23293-70020 |
US $5.39 |
||
| replacement | |||||
|
23293
|
23293
23293-70021 Gasket, Cold Start Injector[01.1985 - 12.1985] 1GEU..GA61 |
23293-70021 |
US $4.66 |
||
|
23300P
|
23300P
23300-70010 Filter, Fuel(For Efi)[07.1981 - 07.1982] 1GEU..GA61 |
23300-70010 |
US $110.66 |
||
| replacement | |||||
|
23300P
|
23300P
23300-79015 Filter, Fuel(For Efi)[07.1981 - 07.1982] 1GEU..GA61 |
23300-79015 |
US $102.12 |
||
|
23300P
|
23300P
23300-70011 Filter, Fuel(For Efi)[07.1982 - 01.1983] 1GEU..GA61 |
23300-70011 |
US $110.66 |
||
| replacement | |||||
|
23300P
|
23300P
23300-79015 Filter, Fuel(For Efi)[07.1982 - 01.1983] 1GEU..GA61 |
23300-79015 |
US $102.12 |
||
|
23300P
|
23300P
23300-79015 Filter, Fuel(For Efi)[01.1983 - 12.1985] 1GEU..GA61 |
23300-79015 |
US $102.12 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[07.1981 - 12.1985] 4AGEU..AA63; 1G#..GA61; 5MGEU,MTEU..MA6#; 2TGEU,3T#,4TGTEU..TA6# |
90430-12005 |
from US $0.90 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[07.1981 - 12.1985] 4AGEU..AA63; 1G#..GA61; 5MGEU,MTEU..MA6#; 2TGEU,3T#,4TGTEU..TA6# |
90401-12097 |
from US $2.98 |
||
|
23300V
|
23300V
90923-01247 Hose, Fuel(For Fuel Inlet)FUEL(FOR FUEL INLET) [07.1981 - 12.1985] 1G#..GA61 |
90923-01247 |
US $103.38 |
||
|
23801P
|
23801P
23801-70010 Pipe Sub-Assy, Fuel, No.1[07.1981 - 01.1985] 1GEU..GA61 |
23801-70010 |
US $74.26 |
||
|
23801P
|
23801P
23801-70030 Pipe Sub-Assy, Fuel, No.1[01.1985 - 12.1985] 1GEU..GA61 |
23801-70030 |
US $80.08 |
||
|
23802B
|
23802B
23802-70010 Pipe Sub-Assy, Fuel, No.2FUEL, NO.2 [07.1981 - 08.1981] 1GEU..GA61 |
23802-70010 |
US $63.48 |
||
|
23802B
|
23802B
23802-70011 Pipe Sub-Assy, Fuel, No.2[08.1981 - 08.1984] 1GEU..GA61 |
23802-70011 |
US $63.19 |
||
| replacement | |||||
|
23802B
|
23802B
23802-70040 Pipe Sub-Assy, Fuel, No.2[08.1981 - 08.1984] 1GEU..GA61 |
23802-70040 |
US $63.34 |
||
|
23802B
|
23802B
23802-70040 Pipe Sub-Assy, Fuel, No.2[08.1984 - 12.1985] 1GEU..GA61 |
23802-70040 |
US $63.34 |
||
|
23802C
|
23802C
90401-08003 Bolt, Union[08.1981 - 12.1985] 1GEU..GA61 |
90401-08003 |
US $2.24 |
||
|
23802C
|
23802C
90401-10011 Bolt, Union(For Fuel Pipe Or Hose Set)[07.1981 - 08.1981] 1GEU..GA61 |
90401-10011 |
US $3.93 |
||
|
23802D
|
23802D
90099-01459
Gasket
[07.1981 - 08.1981] 1GEU..GA61 |
90099-01459 |
— | ||
|
23802D
|
23802D
90430-08005 Gasket[08.1981 - 12.1985] 1GEU..GA61 |
90430-08005 |
US $2.24 |
||
|
23803B
|
23803B
23803-70010
Pipe Sub-Assy, Fuel, No.3
[07.1981 - 08.1981] 1GEU..GA61 |
23803-70010 |
— | ||
|
23803B
|
23803B
23803-70020 Pipe Sub-Assy, Fuel, No.3[08.1981 - 01.1985] 1GEU..GA61 |
23803-70020 |
US $28.39 |
||
|
23803B
|
23803B
23803-70030 Pipe Sub-Assy, Fuel, No.3[01.1985 - 12.1985] 1GEU..GA61 |
23803-70030 |
US $28.54 |
||
|
23803C
|
23803C
90401-08003 Bolt, Union[08.1981 - 12.1985] 1G#..GA61 |
90401-08003 |
US $2.24 |
||
|
23803C
|
23803C
90401-10011 Bolt, Union(For Fuel Pipe Or Hose Set)[07.1981 - 08.1981] 1GEU..GA61 |
90401-10011 |
US $3.93 |
||
|
23803D
|
23803D
90099-01459
Gasket
[07.1981 - 08.1981] 1GEU..GA61 |
90099-01459 |
— | ||
|
23803D
|
23803D
90430-08005 Gasket[08.1981 - 12.1985] 1G#..GA61 |
90430-08005 |
US $2.24 |
||
|
2384170010
|
2384170010
23841-70010 Clamp, Fuel Pipe(hose), No.1 |
23841-70010 |
US $10.92 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9046212021
|
9046212021
90462-12021
New Genuine Part
|
90462-12021 |
— | ||
|
9161640616
|
9161640616
91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91616-40616 |
US $1.89 |
||
| replacement | |||||
|
9161640616
|
9161640616
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
