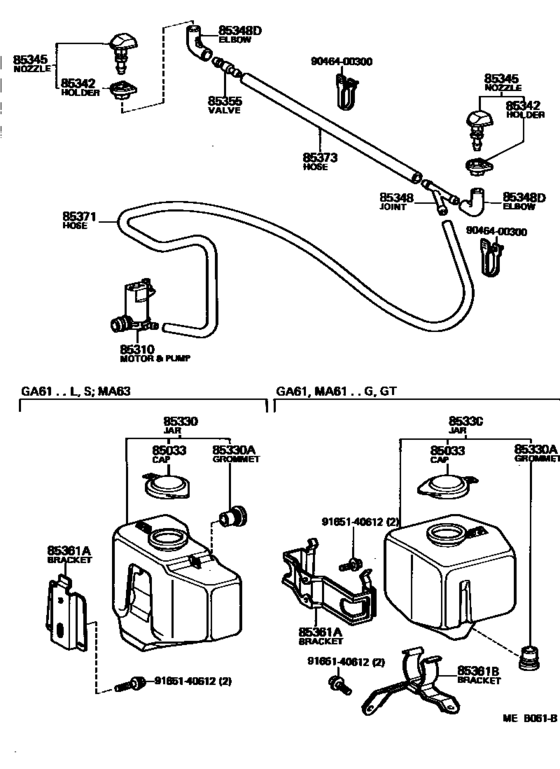

Windshield Washer ([07.1981 - ] (8107- )GA61,MA6#) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- Japan
- Frame
- GA61
- grade
- S
- body
- LB
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 12.1985
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-16010
Cap Assy, Windshield Washer
[07.1981 - 12.1985] AA63,GA61,MA6#,RA63,SA60,TA6# |
85332-16010 |
— | ||
|
85310
|
85310
85310-10130
Motor And Pump Assy, Windshield Washer
[07.1981 - 08.1982] GA61,MA6#,RA63,SA60,TA6# |
85310-10130 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[07.1981 - 08.1982] GA61,MA6#,RA63,SA60,TA6# |
85310-22080 |
from US $49.97 |
||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[08.1982 - 12.1985] GA61..L,S;AA63,MA63,SA60,TA6# |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85330-12100
Jar Assy, Windshield Washer
[07.1981 - 12.1985] MA63;GA61..L,S |
85330-12100 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[07.1981 - 12.1985] AA63,GA61,MA6#,RA63,SA60,TA6# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[07.1981 - 12.1985] AA63,GA61,MA6#,RA63,SA60,TA6# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[07.1981 - 12.1985] AA63,GA61,MA6#,RA63,SA60,TA6# |
90068-32002 |
US $7.46 |
||
|
85342
|
85342
85342-14010 Holder, Washer Nozzle[07.1981 - 12.1985] AA63,GA61,MA6#,RA63,SA60,TA6# |
85342-14010 |
US $3.84 |
||
|
85345
|
85345
85035-19015
Nozzle, Windshield Washer
[07.1981 - 12.1985] AA63,GA61,MA6#,RA63,SA60,TA6# |
85035-19015 |
— | ||
|
85348
|
85348
85349-12250
Joint, Windshield Washer Hose, No.1
[08.1984 - 12.1985] GA61,MA63 3-WAY |
85349-12250 |
— | ||
|
85348
|
85348
85355-14010
Joint, Windshield Washer Hose, No.1
[07.1981 - 08.1984] AA63,GA61,MA6#,RA63,SA60,TA6# 3-WAY |
85355-14010 |
— | ||
| replacement | |||||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[07.1981 - 08.1984] AA63,GA61,MA6#,RA63,SA60,TA6# 3-WAY |
85348-12250 |
from US $0.55 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[08.1984 - 12.1985] GA61,MA63 |
85355-14481 |
US $0.98 |
||
|
85348D
|
85348D
85355-20070
Joint, Windshield Washer Motor
[07.1981 - 08.1984] AA63,GA61,MA6#,RA63,SA60,TA6# |
85355-20070 |
— | ||
| replacement | |||||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[07.1981 - 08.1984] AA63,GA61,MA6#,RA63,SA60,TA6# |
85355-14481 |
US $0.98 |
||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[08.1984 - 12.1985] GA61,MA63 |
85031-12250 |
— | ||
|
85355
|
85355
85031-14080
Joint, Windshield Washer Hose, No.1
[07.1981 - 08.1984] AA63,GA61,MA6#,RA63,SA60,TA61,63 |
85031-14080 |
— | ||
| replacement | |||||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[07.1981 - 08.1984] AA63,GA61,MA6#,RA63,SA60,TA61,63 |
85031-12250 |
— | ||
|
85361A
|
85361A
85361-24020
Bracket, Windshield Washer, No.1
[01.1985 - 12.1985] MA63;GA61..S |
85361-24020 |
— | ||
|
85361A
|
85361A
85361-30013
Bracket Assy, Windshield Washer
[07.1981 - 01.1985] MA63;GA61..L,S |
85361-30013 |
— | ||
|
85371
|
85371
90099-33299 Joint, Windshield Washer Elbow, No.2[07.1981 - 12.1985] GA61,MA6# 長さ＝１０００ |
90099-33299 |
US $4.37 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[07.1981 - 08.1983] GA61,MA6#,RA63,SA60,TA6# ＊Ｈ，Ｌ＝５５０ |
90099-33080 |
US $9.43 |
||
|
9046400300
|
9046400300
90464-00300
New Genuine Part
|
90464-00300 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
