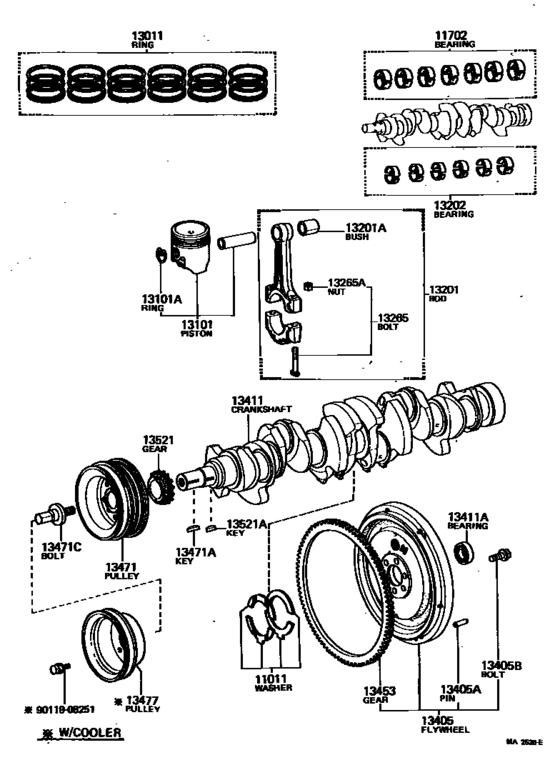

Crankshaft & Piston ([01.1979 - ] (7901- )4ME,5ME) Diagram Toyota CELICA
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- MA46
- grade
- SPR
- body
- LB
- ENGINE
- 4ME
- TRANSMISSION
- ATM
- From
- 01.1979
- To
- 08.1980
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[08.1979 - 07.1981] 4ME,5ME..MA4# STD,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11011-45010 Washer Set, Crankshaft ThrustCRANKSHAFT THRUST [01.1979 - 08.1979] 4ME..MA46 STD,STD |
11011-45010 |
US $25.92 |
||
| replacement | |||||
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[01.1979 - 08.1979] 4ME..MA46 STD,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[08.1979 - 07.1981] 4ME,5ME..MA4# O/S 0.125,O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11012-45010
Washer Set, Crankshaft Thrust
[01.1979 - 08.1979] 4ME..MA46 O/S 0.125,O/S 0.125 |
11012-45010 |
— | ||
| replacement | |||||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[01.1979 - 08.1979] 4ME..MA46 O/S 0.125,O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[08.1979 - 07.1981] 4ME,5ME..MA4# O/S 0.250,O/S 0.250 |
11013-43010 |
— | ||
|
11011
|
11011
11013-45010
Washer Set, Crankshaft Thrust
[01.1979 - 08.1979] 4ME..MA46 O/S 0.250,O/S 0.250 |
11013-45010 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[01.1979 - 08.1979] 4ME..MA46 O/S 0.250,O/S 0.250 |
11013-43010 |
— | ||
|
11702
|
11702
11702-45011
Bearing Set, Crankshaft
[01.1979 - 07.1981] 4ME,5ME..MA4# STD,STD |
11702-45011 |
— | ||
|
11702
|
11702
11703-45011 Bearing Set, Crankshaft[01.1979 - 07.1981] 4ME,5ME..MA4# U/S 0.05,U/S 0.05 |
11703-45011 |
US $301.39 |
||
|
11702
|
11702
11704-45011
Bearing Set, Crankshaft
[01.1979 - 07.1981] 4ME,5ME..MA4# U/S 0.25,U/S 0.25 |
11704-45011 |
— | ||
|
11702
|
11702
11705-45011
Bearing Set, Crankshaft
[01.1979 - 07.1981] 4ME,5ME..MA4# U/S 0.50,U/S 0.50 |
11705-45011 |
— | ||
|
13011
|
13011
13011-43010
Ring Set, Piston
[08.1980 - 07.1981] 5ME..MA47 STD,STD |
13011-43010 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-43031
Ring Set, Piston
[08.1980 - 07.1981] 5ME..MA47 STD,STD |
13011-43031 |
— | ||
|
13011
|
13011
13011-45021
Ring Set, Piston
[01.1979 - 08.1980] 4ME..MA46 STD,STD |
13011-45021 |
— | ||
|
13011
|
13011
13013-43020 Ring Set, Piston[08.1980 - 07.1981] 5ME..MA47 O/S 0.50,O/S 0.50 |
13013-43020 |
US $294.11 |
||
| replacement | |||||
|
13011
|
13011
13013-43031 Ring Set, PistonPISTON [08.1980 - 07.1981] 5ME..MA47 O/S 0.50,O/S 0.50 |
13013-43031 |
US $298.48 |
||
|
13011
|
13011
13013-45021
Ring Set, Piston
[01.1979 - 08.1980] 4ME..MA46 O/S 0.50,O/S 0.50 |
13013-45021 |
— | ||
|
13011
|
13011
13014-43020 Ring Set, Piston[08.1980 - 07.1981] 5ME..MA47 O/S 0.75,O/S 0.75 |
13014-43020 |
US $294.11 |
||
| replacement | |||||
|
13011
|
13011
13014-43031 Ring Set, PistonPISTON [08.1980 - 07.1981] 5ME..MA47 O/S 0.75,O/S 0.75 |
13014-43031 |
US $298.48 |
||
|
13011
|
13011
13014-45021 Ring Set, PistonPISTON [01.1979 - 08.1980] 4ME..MA46 O/S 0.75,O/S 0.75 |
13014-45021 |
US $302.85 |
||
|
13011
|
13011
13015-43020 Ring Set, Piston[08.1980 - 07.1981] 5ME..MA47 O/S 1.00,O/S 1.00 |
13015-43020 |
US $294.11 |
||
| replacement | |||||
|
13011
|
13011
13015-43031 Ring Set, PistonPISTON [08.1980 - 07.1981] 5ME..MA47 O/S 1.00,O/S 1.00 |
13015-43031 |
US $298.48 |
||
|
13011
|
13011
13015-45021 Ring Set, PistonPISTON [01.1979 - 08.1980] 4ME..MA46 O/S 1.00,O/S 1.00 |
13015-45021 |
US $302.85 |
||
|
13101
|
13101
13101-43010 Piston Sub-Assy, W/pinW/PIN [08.1980 - 07.1981] 5ME..MA47 STD,STD |
13101-43010 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13101-43011-02 Piston Sub-Assy, W/pinW/PIN [08.1980 - 07.1981] 5ME..MA47 STD,STD |
13101-43011-02 |
US $94.64 |
||
|
13101
|
13101
13101-45021
Piston Sub-Assy, W/pin
[01.1979 - 08.1980] 4ME..MA46 STD,STD |
13101-45021 |
— | ||
|
13101
|
13101
13103-43030 Piston Sub-Assy, W/pinW/PIN [08.1980 - 07.1981] 5ME..MA47 O/S 0.50,O/S 0.50 |
13103-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13103-43031 Piston Sub-Assy, W/pinW/PIN [08.1980 - 07.1981] 5ME..MA47 O/S 0.50,O/S 0.50 |
13103-43031 |
US $100.46 |
||
|
13101
|
13101
13103-45021
Piston Sub-Assy, W/pin
[01.1979 - 08.1980] 4ME..MA46 O/S 0.50,O/S 0.50 |
13103-45021 |
— | ||
|
13101
|
13101
13104-43030 Piston Sub-Assy, W/pinW/PIN [08.1980 - 07.1981] 5ME..MA47 O/S 0.75,O/S 0.75 |
13104-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13104-43031 Piston Sub-Assy, W/pinW/PIN [08.1980 - 07.1981] 5ME..MA47 O/S 0.75,O/S 0.75 |
13104-43031 |
US $100.46 |
||
|
13101
|
13101
13104-45021 Piston Sub-Assy, W/pinW/PIN [01.1979 - 08.1980] 4ME..MA46 O/S 0.75,O/S 0.75 |
13104-45021 |
US $107.74 |
||
|
13101
|
13101
13105-43030 Piston Sub-Assy, W/pinW/PIN [08.1980 - 07.1981] 5ME..MA47 O/S 1.00,O/S 1.00 |
13105-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13105-43031 Piston Sub-Assy, W/pinW/PIN [08.1980 - 07.1981] 5ME..MA47 O/S 1.00,O/S 1.00 |
13105-43031 |
US $100.46 |
||
|
13101
|
13101
13105-45021
Piston Sub-Assy, W/pin
[01.1979 - 08.1980] 4ME..MA46 O/S 1.00,O/S 1.00 |
13105-45021 |
— | ||
|
13101A
|
13101A
90521-25052 Ring, Hole Snap(For Piston Pin)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90521-25052 |
US $2.48 |
||
|
13201
|
13201
13201-45010 Rod Sub-Assy, Connecting[01.1979 - 07.1981] 4ME,5ME..MA4# |
13201-45010 |
US $215.49 |
||
| replacement | |||||
|
13201
|
13201
13201-49015 Rod Sub-Assy, Connecting[01.1979 - 07.1981] 4ME,5ME..MA4# |
13201-49015 |
US $214.03 |
||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13202-45011
Bearing, Connecting Rod
[01.1979 - 07.1981] 4ME,5ME..MA4# STD,STD |
13202-45011 |
— | ||
|
13202
|
13202
13203-45011 Bearing Set, Connecting Rod[01.1979 - 07.1981] 4ME,5ME..MA4# U/S 0.05,U/S 0.05 |
13203-45011 |
US $160.16 |
||
|
13202
|
13202
13204-45011
Bearing Set, Connecting Rod
[01.1979 - 07.1981] 4ME,5ME..MA4# U/S 0.25,U/S 0.25 |
13204-45011 |
— | ||
|
13202
|
13202
13205-45011
Bearing Set, Connecting Rod
[01.1979 - 07.1981] 4ME,5ME..MA4# U/S 0.50,U/S 0.50 |
13205-45011 |
— | ||
|
13265
|
13265
13265-49025
Bolt, Connecting Rod
[01.1979 - 07.1981] 4ME,5ME..MA4# |
13265-49025 |
— | ||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90170-09195 |
US $3.20 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[01.1979 - 07.1981] 4ME,5ME..MA4# L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[01.1979 - 07.1981] 4ME,5ME..MA4# |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-45012 Crankshaft[01.1979 - 07.1981] 4ME,5ME..MA4# |
13411-45012 |
US $1,747.20 |
||
| replacements | |||||
|
13411
|
13411
13411-45013 Crankshaft[01.1979 - 07.1981] 4ME,5ME..MA4# |
13411-45013 |
US $1,820 |
||
|
13411
|
13411
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90280-05003 |
US $2.62 |
||
|
13411A
|
13411A
90363-12002
Bearing (For Input Shaft)
[11.1980 - 07.1981] 22R..RA43; 5ME..MA47 |
90363-12002 |
— | ||
| replacement | |||||
|
13411A
|
13411A
90363-12024 Bearing, Radial Ball[11.1980 - 07.1981] 22R..RA43; 5ME..MA47 |
90363-12024 |
from US $5.91 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[01.1979 - 07.1981] 4ME,5ME..MA4# |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13407-41020
Pulley, Crankshaft
[01.1979 - 08.1979] 4ME..MA46 |
13407-41020 |
— | ||
|
13471
|
13471
13407-41021
Pulley, Crankshaft
[08.1979 - 07.1981] 4ME,5ME..MA4# |
13407-41021 |
— | ||
|
13471A
|
13471A
90280-05001 Key, Crankshaft(For Crankshaft Pulley Set)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90280-05001 |
US $3.32 |
||
|
13471C
|
13471C
90105-16002
Bolt(For Crankshaft Pulley Set)
[01.1979 - 07.1981] 4ME,5ME..MA4# |
90105-16002 |
— | ||
| replacement | |||||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[01.1979 - 07.1981] 4ME,5ME..MA4# |
90105-16011 |
— | ||
|
13477
|
13477
88451-30302
Pulley, Crankshaft, No.2
[01.1979 - 08.1979] 4ME..MA46 |
88451-30302 |
— | ||
|
13477
|
13477
88451-30330 Pulley, Crankshaft, No.2[08.1979 - 07.1981] 4ME,5ME..MA4# |
88451-30330 |
US $47.90 |
||
|
13521
|
13521
13521-41011 Gear Or Sprocket, Crankshaft Timing[01.1979 - 07.1981] 4ME,5ME..MA4# N=20 |
13521-41011 |
US $50.38 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90280-05010 |
from US $1.89 |
||
|
9011908251
|
9011908251
90119-08251 BOLT |
90119-08251 |
US $1.28 |
||
