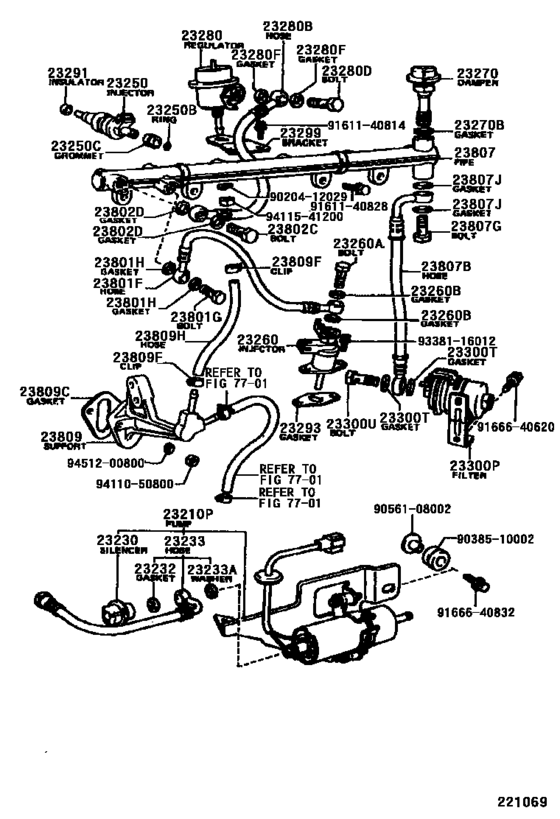

Fuel Injection System ([01.1979 - 08.1979] (7901-7908)4ME) Diagram Toyota CELICA
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- MA46
- grade
- SPR
- body
- LB
- ENGINE
- 4ME
- TRANSMISSION
- ATM
- From
- 01.1979
- To
- 08.1980
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9020412029
|
9020412029
90204-12029
Washer, Spring(For Steering Wheel Set)
|
90204-12029 |
— | ||
|
9038510002
|
9038510002
90385-10002
Bush(For Brake Traction Actuator Bracket)
|
90385-10002 |
— | ||
|
9056108002
|
9056108002
90561-08002 Spacer(For Brake Traction Actuator Bracket) |
90561-08002 |
US $4.89 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9161140828
|
9161140828
91611-40828 Bolt(For Clutch Release Cylinder Setting) |
91611-40828 |
US $2.77 |
||
| replacement | |||||
|
9161140828
|
9161140828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.76 |
||
|
9166640620
|
9166640620
91666-40620
New Genuine Part
|
91666-40620 |
— | ||
| replacement | |||||
|
9166640620
|
9166640620
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9166640832
|
9166640832
91666-40832 New Genuine Part |
91666-40832 |
US $2.18 |
||
| replacement | |||||
|
9166640832
|
9166640832
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
