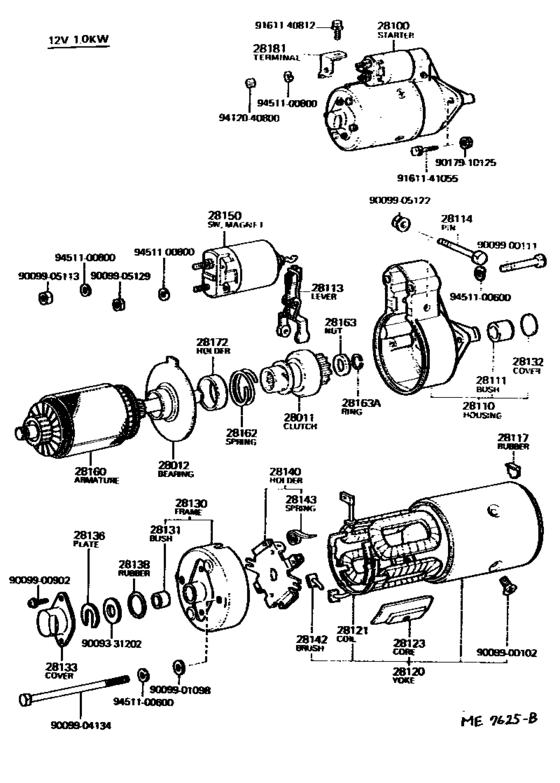

Starter ([01.1979 - 08.1980] (7901-8008)4ME) Diagram Toyota CELICA
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- MA46
- grade
- SPR
- body
- LB
- ENGINE
- 4ME
- TRANSMISSION
- ATM
- From
- 01.1979
- To
- 08.1980
- Gear Shift Type
- 4FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009900102
|
9009900102
90099-00102
New Genuine Part
|
90099-00102 |
— | ||
|
9009900111
|
9009900111
90099-00111
New Genuine Part
|
90099-00111 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009901098
|
9009901098
90099-01098
New Genuine Part
|
90099-01098 |
— | ||
|
9009904134
|
9009904134
90099-04134
New Genuine Part
|
90099-04134 |
— | ||
|
9009905113
|
9009905113
90099-05113
New Genuine Part
|
90099-05113 |
— | ||
|
9009905122
|
9009905122
90099-05122
New Genuine Part
|
90099-05122 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161141055
|
9161141055
91611-41055
Bolt(For Clutch Release Cylinder Setting)
|
91611-41055 |
— | ||
| replacement | |||||
|
9161141055
|
9161141055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $2.72 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
