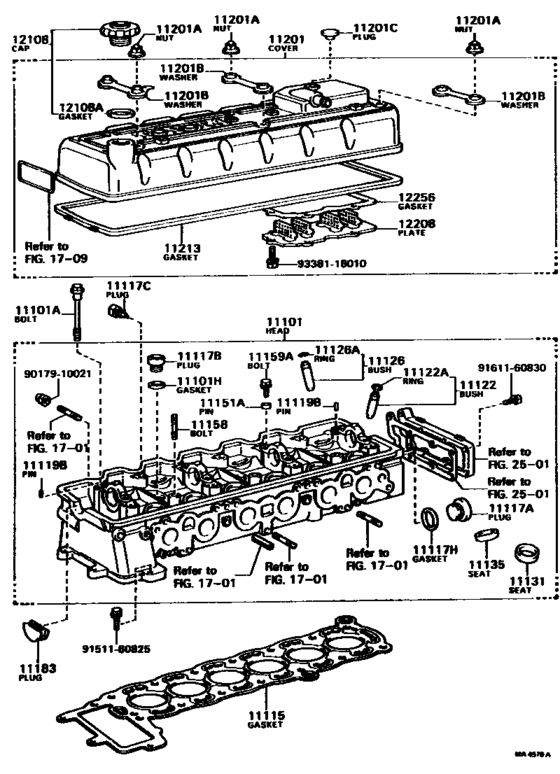

Cylinder Head ([08.1980 - ] (8008- )5ME) Diagram Toyota CELICA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- MA47
- grade
- SPR
- body
- LB
- ENGINE
- 5ME
- TRANSMISSION
- MTM
- From
- 08.1980
- To
- 07.1981
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49208
Head Sub-Assy, Cylinder
[01.1979 - 08.1980] 4ME..MA46 |
11101-49208 |
— | ||
| replacements | |||||
|
11101
|
11101
11101-45050
Head Sub-assy, Cylinder
[01.1979 - 08.1980] 4ME..MA46 |
11101-45050 |
— | ||
|
11101
|
11101
13951-45011
Support, Valve Rocker, No.1
[01.1979 - 08.1980] 4ME..MA46 |
13951-45011 |
— | ||
|
11101
|
11101
13954-45012
Support, Valve Rocker, No.4
[01.1979 - 08.1980] 4ME..MA46 |
13954-45012 |
— | ||
|
11101
|
11101
90116-10028
New Genuine Part
[01.1979 - 08.1980] 4ME..MA46 |
90116-10028 |
— | ||
|
11101
|
11101
90116-10033
New Genuine Part
[01.1979 - 08.1980] 4ME..MA46 |
90116-10033 |
— | ||
|
11101
|
11101
90179-10021 Nut[01.1979 - 08.1980] 4ME..MA46 |
90179-10021 |
US $4 |
||
|
11101
|
11101
90341-16007
Plug, No.2
[01.1979 - 08.1980] 4ME..MA46 |
90341-16007 |
— | ||
|
11101
|
11101
11101-49255
Head Sub-Assy, Cylinder
[08.1980 - 07.1981] 5ME..MA47 |
11101-49255 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-43011
Head Sub-Assy, Cylinder
[08.1980 - 07.1981] 5ME..MA47 |
11101-43011 |
— | ||
|
11101A
|
11101A
90910-02058 Bolt(For Cylinder Head Set)[01.1979 - 07.1981] 4ME,5ME..MA4# *12-1.25PX166.5-21 |
90910-02058 |
US $4.96 |
||
|
11101H
|
11101H
90430-33133 Gasket(For Cylinder Head Screw Plug)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90430-33133 |
US $3.20 |
||
|
11115
|
11115
11115-43020
Gasket, Cylinder Head
[08.1980 - 07.1981] 5ME..MA47 |
11115-43020 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-43021
Gasket, Cylinder Head
[08.1980 - 07.1981] 5ME..MA47 |
11115-43021 |
— | ||
|
11115
|
11115
11115-45030
Gasket, Cylinder Head
[01.1979 - 08.1979] 4ME..MA46 |
11115-45030 |
— | ||
|
11115
|
11115
11115-45050
Gasket, Cylinder Head
[08.1979 - 08.1980] 4ME..MA46 |
11115-45050 |
— | ||
|
11117B
|
11117B
90341-32070 Plug, W/head Taper Screw, No.1[01.1979 - 07.1981] 4ME,5ME..MA4# |
90341-32070 |
US $10.66 |
||
|
11117C
|
11117C
90341-14005 Plug, W/head Taper Screw, No.3W/HEAD TAPER SCREW, NO.3 [01.1979 - 07.1981] 4ME,5ME..MA4# |
90341-14005 |
US $4.37 |
||
|
11117H
|
11117H
90430-36001 Gasket(For Water Hole)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90430-36001 |
US $1.40 |
||
|
11119B
|
11119B
90253-08001 Pin, Straight, No.2[01.1979 - 07.1981] 4ME,5ME..MA4# L=18,OD=7.9,L=18,OD=7.9 |
90253-08001 |
US $3.35 |
||
|
11122
|
11122
11122-41020 Bush, Intake Valve Guide[01.1979 - 07.1981] 4ME,5ME..MA4# STD,STD |
11122-41020 |
US $13.25 |
||
|
11122
|
11122
11123-41020 Bush, Intake Valve Guide[01.1979 - 07.1981] 4ME,5ME..MA4# O/S 0.05,O/S 0.05 |
11123-41020 |
US $11.94 |
||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90520-12049 |
from US $2.72 |
||
|
11126
|
11126
11126-45020 Bush, Exhaust Valve GuideEXHAUST VALVE GUIDE [01.1979 - 07.1981] 4ME,5ME..MA4# STD,STD |
11126-45020 |
US $12.23 |
||
| replacement | |||||
|
11126
|
11126
11126-41040 Bush, Exhaust Valve Guide[01.1979 - 07.1981] 4ME,5ME..MA4# STD,STD |
11126-41040 |
US $7.13 |
||
|
11126
|
11126
11127-45020 Bush, Exhaust Valve GuideEXHAUST VALVE GUIDE [01.1979 - 07.1981] 4ME,5ME..MA4# O/S 0.05,O/S 0.05 |
11127-45020 |
US $12.23 |
||
| replacement | |||||
|
11126
|
11126
11127-41040 Bush, Exhaust Valve Guide[01.1979 - 07.1981] 4ME,5ME..MA4# O/S 0.05,O/S 0.05 |
11127-41040 |
US $7.13 |
||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90520-12049 |
from US $2.72 |
||
|
11131
|
11131
11131-43010 Seat, Intake Valve[08.1979 - 07.1981] 4ME,5ME..MA4# STD,STD |
11131-43010 |
US $16.45 |
||
|
11131
|
11131
11131-45010
Seat, Intake Valve
[01.1979 - 08.1979] 4ME..MA46 STD,STD |
11131-45010 |
— | ||
|
11131
|
11131
11132-43010 Seat, Intake Valve[08.1979 - 07.1981] 4ME,5ME..MA4# O/S 0.03,O/S 0.03 |
11132-43010 |
US $15.87 |
||
|
11131
|
11131
11132-45010
Seat, Intake Valve
[01.1979 - 08.1979] 4ME..MA46 O/S 0.03,O/S 0.03 |
11132-45010 |
— | ||
|
11135
|
11135
11135-45010 Seat, Exhaust Valve[01.1979 - 07.1981] 4ME,5ME..MA4# STD,STD |
11135-45010 |
US $15.58 |
||
|
11135
|
11135
11136-45010 Seat, Exhaust Valve[01.1979 - 07.1981] 4ME,5ME..MA4# O/S 0.03,O/S 0.03 |
11136-45010 |
US $10.48 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[01.1979 - 07.1981] 4ME,5ME..MA4# L=8,OD=11,L=8,OD=11 |
90253-11021 |
from US $1.50 |
||
|
11158
|
11158
90116-08003 Bolt, Stud(For Head To Cylinder Head Cover)[01.1979 - 07.1981] 4ME,5ME..MA4# L=51,L=51,S=14&8.5 |
90116-08003 |
US $2.18 |
||
|
11159A
|
11159A
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
[01.1979 - 07.1981] 4ME,5ME..MA4# |
91611-60825 |
— | ||
| replacement | |||||
|
11159A
|
11159A
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[01.1979 - 07.1981] 4ME,5ME..MA4# |
91611-B0825 |
from US $1.93 |
||
|
11183
|
11183
11183-45010
Plug, Semicircular
[01.1979 - 07.1981] 4ME,5ME..MA4# |
11183-45010 |
— | ||
| replacement | |||||
|
11183
|
11183
11183-45020 Plug, Semicircular[01.1979 - 07.1981] 4ME,5ME..MA4# |
11183-45020 |
US $14.56 |
||
|
11201
|
11201
11201-49145
Cover Sub-Assy, Cylinder Head
[01.1979 - 08.1980] 4ME..MA46 |
11201-49145 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-49147
Cover Sub-Assy, Cylinder Head
[01.1979 - 08.1980] 4ME..MA46 |
11201-49147 |
— | ||
|
11201
|
11201
11201-49146 Cover Sub-Assy, Cylinder Head[08.1980 - 07.1981] 5ME..MA47 |
11201-49146 |
US $327.60 |
||
| replacement | |||||
|
11201
|
11201
11201-49147
Cover Sub-Assy, Cylinder Head
[08.1980 - 07.1981] 5ME..MA47 |
11201-49147 |
— | ||
|
11201A
|
11201A
90176-08015 Nut, Cap(For Cylinder Head Cover)[01.1979 - 07.1981] 4ME,5ME..MA4# |
90176-08015 |
US $1.22 |
||
|
11201B
|
11201B
90210-09002 Washer, Seal(For Cylinder Head Cover)[01.1979 - 07.1981] 4ME,5ME..MA4# CTR,RR |
90210-09002 |
US $9.44 |
||
|
11201B
|
11201B
90210-09003
Washer, Seal(For Cylinder Head Cover)
[01.1979 - 07.1981] 4ME,5ME..MA4# FR |
90210-09003 |
— | ||
|
11201C
|
11201C
90339-19001
Plug(For Positive Crankcase Ventilation Valve Hole)
[01.1979 - 07.1981] 4ME,5ME..MA4# |
90339-19001 |
— | ||
|
11213
|
11213
11213-41020 Gasket, Cylinder Head Cover[01.1979 - 07.1981] 4ME,5ME..MA4# |
11213-41020 |
from US $21.74 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[08.1979 - 07.1981] 20R,22R..RA4#; 4ME,5ME..MA4# |
12180-13010 |
US $16.11 |
||
|
12108
|
12108
12181-12904
Cap Sub-Assy, Oil Filler
[01.1979 - 08.1979] 4ME..MA46 |
12181-12904 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[01.1979 - 08.1979] 4ME..MA46 |
12180-13010 |
US $16.11 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1977 - 07.1981] 20R,22R..RA4#; 4ME,5ME..MA4# |
90430-37140 |
from US $1.25 |
||
|
12208
|
12208
12208-41010 Plate Sub-Assy, Ventilation Baffle[01.1979 - 07.1981] 4ME,5ME..MA4# |
12208-41010 |
US $42.95 |
||
|
12256
|
12256
12256-41021
Gasket, Ventilation Baffle
[01.1979 - 07.1981] 4ME,5ME..MA4# |
12256-41021 |
— | ||
| replacement | |||||
|
12256
|
12256
12256-43020
Gasket, Ventilation Baffle
[01.1979 - 07.1981] 4ME,5ME..MA4# |
12256-43020 |
— | ||
|
9017910021
|
9017910021
90179-10021 Nut |
90179-10021 |
US $4 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9338118010
|
9338118010
93381-18010 New Genuine Part |
93381-18010 |
US $0.87 |
||
