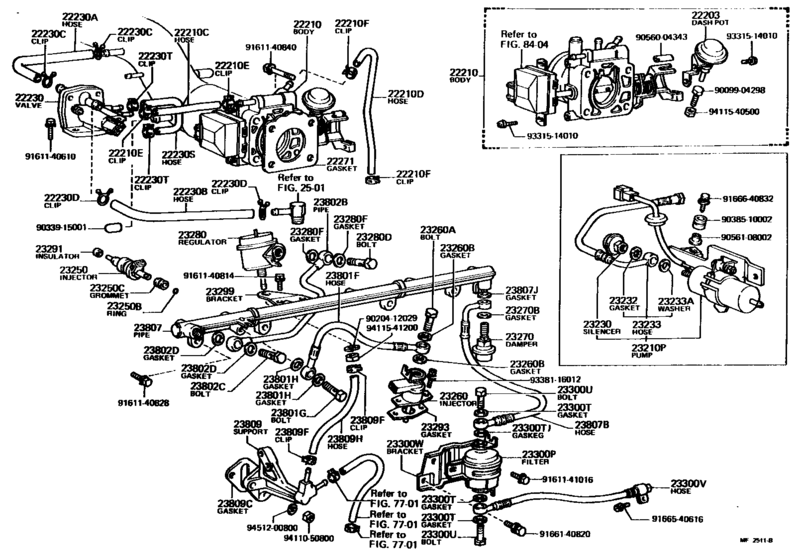

Fuel Injection System ([08.1980 - ] (8008- )5ME) Diagram Toyota CELICA
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- MA47
- grade
- SPR
- body
- LB
- ENGINE
- 5ME
- TRANSMISSION
- MTM
- From
- 08.1980
- To
- 07.1981
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-43040
Body Assy, Throttle
[08.1980 - 07.1981] 5ME..MA47 |
22210-43040 |
— | ||
|
22210D
|
22210D
16264-41050 Hose, Water By-Pass, No.2[08.1980 - 07.1981] 5ME..MA47 |
16264-41050 |
from US $14.41 |
||
|
23210P
|
23210P
23210-43030 Pump Assy, Fuel W/motor & Bracket[08.1980 - 07.1981] 5ME..MA47 |
23210-43030 |
US $828.46 |
||
|
23270
|
23270
23270-70010 Damper Assy, Fuel Pressure Pulsation[08.1980 - 07.1981] 5ME..MA47 |
23270-70010 |
US $94.72 |
||
|
23807
|
23807
23807-45020 Pipe Sub-Assy, Fuel Delivery[08.1980 - 07.1981] 5ME..MA47 |
23807-45020 |
US $244.61 |
||
|
23807B
|
23807B
90923-01244 Hose, Fuel Delivery PipeFUEL DELIVERY PIPE [08.1980 - 07.1981] 5ME..MA47 |
90923-01244 |
US $180.54 |
||
|
9009904298
|
9009904298
90099-04298
New Genuine Part
|
90099-04298 |
— | ||
|
9020412029
|
9020412029
90204-12029
Washer, Spring(For Steering Wheel Set)
|
90204-12029 |
— | ||
|
9033915001
|
9033915001
90339-15001 New Genuine Part |
90339-15001 |
US $4.80 |
||
|
9038510002
|
9038510002
90385-10002
Bush(For Brake Traction Actuator Bracket)
|
90385-10002 |
— | ||
|
9056004343
|
9056004343
90560-04343 New Genuine Part |
90560-04343 |
US $3.64 |
||
|
9056108002
|
9056108002
90561-08002 Spacer(For Brake Traction Actuator Bracket) |
90561-08002 |
US $4.89 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161140828
|
9161140828
91611-40828
Bolt(For Clutch Release Cylinder Setting)
|
91611-40828 |
— | ||
| replacement | |||||
|
9161140828
|
9161140828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.76 |
||
|
9161140840
|
9161140840
91611-40840
New Genuine Part
|
91611-40840 |
— | ||
| replacement | |||||
|
9161140840
|
9161140840
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
|
9161141016
|
9161141016
91611-41016 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91611-41016 |
US $2.91 |
||
| replacement | |||||
|
9161141016
|
9161141016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9166640832
|
9166640832
91666-40832 New Genuine Part |
91666-40832 |
US $2.18 |
||
| replacement | |||||
|
9166640832
|
9166640832
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
