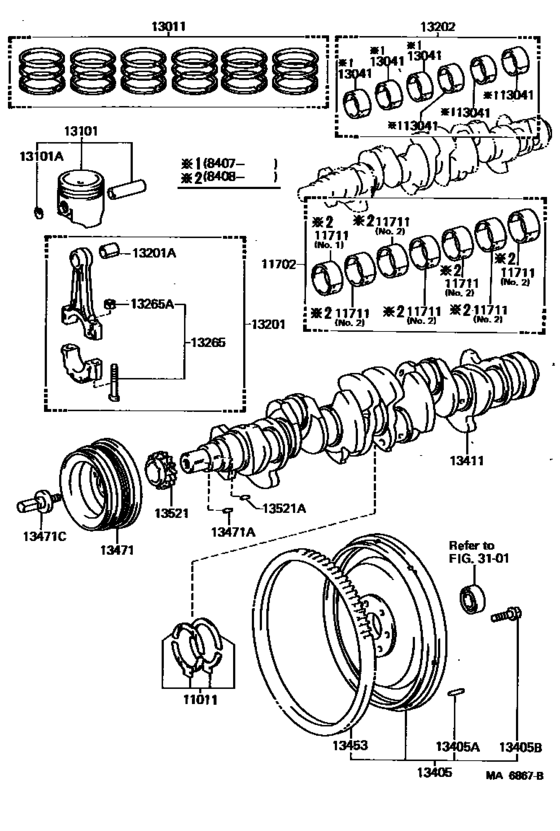

Crankshaft & Piston ([08.1983 - ] (8308- )5ME) Diagram Toyota CELICA
- Year
- 1983 - 1985
- Sales region
- Europe
- Frame
- MA61
- grade
- SPR
- body
- LB
- ENGINE
- 5ME
- TRANSMISSION
- MTM
- From
- 08.1983
- To
- 12.1985
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[12.1981 - 12.1985] 5M#..MA61 STD,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[12.1981 - 12.1985] 5M#..MA61 O/S 0.125,O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[12.1981 - 12.1985] 5M#..MA61 O/S 0.250,O/S 0.250 |
11013-43010 |
— | ||
|
11702
|
11702
11702-45011
Bearing Set, Crankshaft
[12.1981 - 08.1984] 5M#..MA61 STD,STD |
11702-45011 |
— | ||
|
11702
|
11702
11703-45011 Bearing Set, Crankshaft[12.1981 - 08.1984] 5M#..MA61 U/S 0.05,U/S 0.05 |
11703-45011 |
US $301.39 |
||
|
11702
|
11702
11704-43010
Bearing Set, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 U/S 0.25,U/S 0.25 |
11704-43010 |
— | ||
|
11702
|
11702
11704-45011
Bearing Set, Crankshaft
[12.1981 - 08.1984] 5M#..MA61 U/S 0.25,U/S 0.25 |
11704-45011 |
— | ||
|
11702
|
11702
11705-43010 Bearing Set, Crankshaft[08.1984 - 12.1985] 5M#..MA61 U/S 0.50,U/S 0.50 |
11705-43010 |
US $301.39 |
||
|
11702
|
11702
11705-45011
Bearing Set, Crankshaft
[12.1981 - 08.1984] 5M#..MA61 U/S 0.50,U/S 0.50 |
11705-45011 |
— | ||
|
11711
|
11711
11071-43010-01
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.1,MARK"1",MARK 1 |
11071-43010-01 |
— | ||
|
11711
|
11711
11071-43010-02
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.1,MARK"2",MARK 2 |
11071-43010-02 |
— | ||
|
11711
|
11711
11071-43010-03
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.1,MARK"3",MARK 3 |
11071-43010-03 |
— | ||
|
11711
|
11711
11071-43010-04
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.1,MARK"4",MARK 4 |
11071-43010-04 |
— | ||
|
11711
|
11711
11071-43010-05
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.1,MARK"5",MARK 5 |
11071-43010-05 |
— | ||
|
11711
|
11711
11701-43010-01
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.2,MARK"1",MARK 1 |
11701-43010-01 |
— | ||
|
11711
|
11711
11701-43010-02
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.2,MARK"2",MARK 2 |
11701-43010-02 |
— | ||
|
11711
|
11711
11701-43010-03
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.2,MARK"3",MARK 3 |
11701-43010-03 |
— | ||
|
11711
|
11711
11701-43010-04
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.2,MARK"4",MARK 4 |
11701-43010-04 |
— | ||
|
11711
|
11711
11701-43010-05
Bearing, Crankshaft
[08.1984 - 12.1985] 5M#..MA61 NO.2,MARK"5",MARK 5 |
11701-43010-05 |
— | ||
|
13011
|
13011
13011-43030
Ring Set, Piston
[08.1983 - 12.1985] 5ME..MA61 STD,STD |
13011-43030 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-43031
Ring Set, Piston
[08.1983 - 12.1985] 5ME..MA61 STD,STD |
13011-43031 |
— | ||
|
13011
|
13011
13013-43030 Ring Set, PistonPISTON [08.1983 - 12.1985] 5ME..MA61 O/S 0.50,O/S 0.50 |
13013-43030 |
US $304.30 |
||
| replacement | |||||
|
13011
|
13011
13013-43031 Ring Set, PistonPISTON [08.1983 - 12.1985] 5ME..MA61 O/S 0.50,O/S 0.50 |
13013-43031 |
US $298.48 |
||
|
13011
|
13011
13014-43030 Ring Set, PistonPISTON [08.1983 - 12.1985] 5ME..MA61 O/S 0.75,O/S 0.75 |
13014-43030 |
US $304.30 |
||
| replacement | |||||
|
13011
|
13011
13014-43031 Ring Set, PistonPISTON [08.1983 - 12.1985] 5ME..MA61 O/S 0.75,O/S 0.75 |
13014-43031 |
US $298.48 |
||
|
13011
|
13011
13015-43030 Ring Set, PistonPISTON [08.1983 - 12.1985] 5ME..MA61 O/S 1.00,O/S 1.00 |
13015-43030 |
US $304.30 |
||
| replacement | |||||
|
13011
|
13011
13015-43031 Ring Set, PistonPISTON [08.1983 - 12.1985] 5ME..MA61 O/S 1.00,O/S 1.00 |
13015-43031 |
US $298.48 |
||
|
13041
|
13041
13041-42010-01
Bearing, Connecting Rod
[07.1984 - 12.1985] 5M#..MA61 MARK"1",MARK 1 |
13041-42010-01 |
— | ||
|
13041
|
13041
13041-42010-02 Bearing, Connecting Rod[07.1984 - 12.1985] 5M#..MA61 MARK"2",MARK 2 |
13041-42010-02 |
US $12.68 |
||
|
13041
|
13041
13041-42010-03
Bearing, Connecting Rod
[07.1984 - 12.1985] 5M#..MA61 MARK"3",MARK 3 |
13041-42010-03 |
— | ||
|
13041
|
13041
13041-42010-04
Bearing, Connecting Rod
[07.1984 - 12.1985] 5M#..MA61 MARK"4",MARK 4 |
13041-42010-04 |
— | ||
|
13041
|
13041
13041-42010-05
Bearing, Connecting Rod
[07.1984 - 12.1985] 5M#..MA61 MARK"5",MARK 5 |
13041-42010-05 |
— | ||
|
13101
|
13101
13101-43010 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1984] 5ME..MA61 STD,STD |
13101-43010 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13101-43011-02 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1984] 5ME..MA61 STD,STD |
13101-43011-02 |
US $94.64 |
||
|
13101
|
13101
13101-43011 Piston Sub-Assy, W/pinW/PIN [07.1984 - 12.1985] 5ME..MA61 STD,STD |
13101-43011 |
US $94.64 |
||
| replacement | |||||
|
13101
|
13101
13101-43011-02 Piston Sub-Assy, W/pinW/PIN [07.1984 - 12.1985] 5ME..MA61 STD,STD |
13101-43011-02 |
US $94.64 |
||
|
13101
|
13101
13103-43030 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1984] 5ME..MA61 O/S 0.50,O/S 0.50 |
13103-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13103-43031 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1984] 5ME..MA61 O/S 0.50,O/S 0.50 |
13103-43031 |
US $100.46 |
||
|
13101
|
13101
13103-43031 Piston Sub-Assy, W/pinW/PIN [07.1984 - 12.1985] 5ME..MA61 O/S 0.50,O/S 0.50 |
13103-43031 |
US $100.46 |
||
|
13101
|
13101
13104-43030 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1984] 5ME..MA61 O/S 0.75,O/S 0.75 |
13104-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13104-43031 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1984] 5ME..MA61 O/S 0.75,O/S 0.75 |
13104-43031 |
US $100.46 |
||
|
13101
|
13101
13104-43031 Piston Sub-Assy, W/pinW/PIN [07.1984 - 12.1985] 5ME..MA61 O/S 0.75,O/S 0.75 |
13104-43031 |
US $100.46 |
||
|
13101
|
13101
13105-43030 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1984] 5ME..MA61 O/S 1.00,O/S 1.00 |
13105-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13105-43031 Piston Sub-Assy, W/pinW/PIN [08.1983 - 07.1984] 5ME..MA61 O/S 1.00,O/S 1.00 |
13105-43031 |
US $100.46 |
||
|
13101
|
13101
13105-43031 Piston Sub-Assy, W/pinW/PIN [07.1984 - 12.1985] 5ME..MA61 O/S 1.00,O/S 1.00 |
13105-43031 |
US $100.46 |
||
|
13101A
|
13101A
90521-25001
Ring, Hole Snap(For Piston Pin)
[07.1984 - 12.1985] 5M#..MA61 |
90521-25001 |
— | ||
|
13101A
|
13101A
90521-25052 Ring, Hole Snap(For Piston Pin)[12.1981 - 07.1984] 5M#..MA61 |
90521-25052 |
US $2.48 |
||
|
13201
|
13201
13201-43010 Rod Sub-Assy, Connecting[01.1984 - 07.1984] 5M#..MA61 |
13201-43010 |
US $215.49 |
||
| replacement | |||||
|
13201
|
13201
13201-49026 Rod Sub-Assy, ConnectingCONNECTING [01.1984 - 07.1984] 5M#..MA61 |
13201-49026 |
US $214.03 |
||
|
13201
|
13201
13201-43011
Rod Sub-Assy, Connecting
[07.1984 - 03.1985] 5M#..MA61 |
13201-43011 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-49026 Rod Sub-Assy, ConnectingCONNECTING [07.1984 - 03.1985] 5M#..MA61 |
13201-49026 |
US $214.03 |
||
|
13201
|
13201
13201-45010 Rod Sub-Assy, Connecting[12.1981 - 01.1984] 5M#..MA61 |
13201-45010 |
US $215.49 |
||
| replacement | |||||
|
13201
|
13201
13201-49015 Rod Sub-Assy, Connecting[12.1981 - 01.1984] 5M#..MA61 |
13201-49015 |
US $214.03 |
||
|
13201
|
13201
13201-49025 Rod Sub-Assy, ConnectingCONNECTING [03.1985 - 12.1985] 5M#..MA61 |
13201-49025 |
US $228.59 |
||
| replacement | |||||
|
13201
|
13201
13201-49026 Rod Sub-Assy, ConnectingCONNECTING [03.1985 - 12.1985] 5M#..MA61 |
13201-49026 |
US $214.03 |
||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[12.1981 - 12.1985] 5M#..MA61 |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13202-45011
Bearing, Connecting Rod
[12.1981 - 07.1984] 5M#..MA61 STD,STD |
13202-45011 |
— | ||
|
13202
|
13202
13203-45011 Bearing Set, Connecting Rod[12.1981 - 07.1984] 5M#..MA61 U/S 0.05,U/S 0.05 |
13203-45011 |
US $160.16 |
||
|
13202
|
13202
13204-42010
Bearing Set, Connecting Rod
[07.1984 - 12.1985] 5M#..MA61 U/S 0.25,U/S 0.25 |
13204-42010 |
— | ||
|
13202
|
13202
13204-45011
Bearing Set, Connecting Rod
[12.1981 - 07.1984] 5M#..MA61 U/S 0.25,U/S 0.25 |
13204-45011 |
— | ||
|
13202
|
13202
13205-42010 Bearing Set, Connecting Rod[07.1984 - 12.1985] 5M#..MA61 U/S 0.50,U/S 0.50 |
13205-42010 |
US $161.62 |
||
|
13202
|
13202
13205-45011
Bearing Set, Connecting Rod
[12.1981 - 07.1984] 5M#..MA61 U/S 0.50,U/S 0.50 |
13205-45011 |
— | ||
|
13265
|
13265
13265-49025
Bolt, Connecting Rod
[12.1981 - 12.1985] 5M#..MA61 |
13265-49025 |
— | ||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[03.1983 - 12.1985] 5M#..MA61 |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-49116 Flywheel Sub-Assy[08.1983 - 12.1985] 5ME..MA61..5F N=115 |
13405-49116 |
US $416.42 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[08.1981 - 12.1985] 2T#..TA60..5F L=23,OD=8,L=23,OD=8; 2SC..SA63..5F L=23,OD=8,L=23,OD=8; 21R#,22REC,18RG..RA6#..5F L=23,OD=8,L=23,OD=8; 5M#..MA61..5F L=23,OD=8,L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[08.1981 - 12.1985] 2T#..TA60..5F; 5M#..MA61..5F |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-45012 Crankshaft[12.1981 - 08.1984] 5M#..MA61 |
13411-45012 |
US $1,747.20 |
||
| replacements | |||||
|
13411
|
13411
13411-45013 Crankshaft[12.1981 - 08.1984] 5M#..MA61 |
13411-45013 |
US $1,820 |
||
|
13411
|
13411
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[12.1981 - 08.1984] 5M#..MA61 |
90280-05003 |
US $2.62 |
||
|
13411
|
13411
13411-45013 Crankshaft[08.1984 - 12.1985] 5M#..MA61 |
13411-45013 |
US $1,820 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[08.1981 - 12.1985] 2T#..TA60..5F; 2SC..SA63..5F; 21R#,22REC,18RG..RA6#..5F; 5M#..MA61..5F |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13407-41030
Pulley, Crankshaft
[08.1983 - 12.1985] 5ME..MA61 |
13407-41030 |
— | ||
|
13471A
|
13471A
90280-05001 Key, Crankshaft(For Crankshaft Pulley Set)[12.1981 - 08.1984] 5M#..MA61 |
90280-05001 |
US $3.32 |
||
|
13471A
|
13471A
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[08.1984 - 12.1985] 5M#..MA61 |
90280-05003 |
US $2.62 |
||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[03.1982 - 12.1985] 5M#..MA61 |
90105-16011 |
— | ||
|
13521
|
13521
13521-41011 Gear Or Sprocket, Crankshaft Timing[08.1983 - 12.1985] 5ME..MA61 N=20 |
13521-41011 |
US $50.38 |
||
|
13521A
|
13521A
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[08.1984 - 12.1985] 5M#..MA61 |
90280-05003 |
US $2.62 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1981 - 08.1984] 4AGE..AA63; 5M#..MA61; 2T#..TA60; 21R#,18RG..RA6# |
90280-05010 |
from US $1.89 |
||
