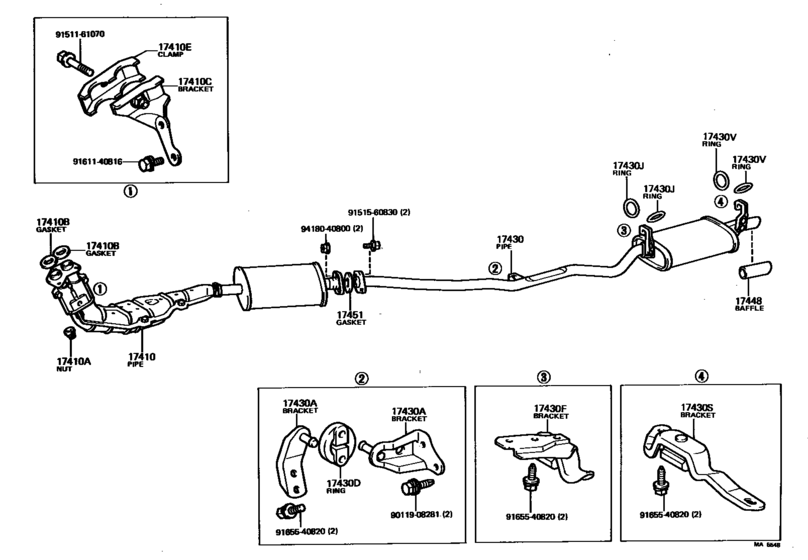

Exhaust Pipe ([12.1981 - ] (8112- )5M#) Diagram Toyota CELICA
- Year
- 1983 - 1985
- Sales region
- Europe
- Frame
- MA61
- grade
- SPR
- body
- LB
- ENGINE
- 5ME
- TRANSMISSION
- MTM
- From
- 08.1983
- To
- 12.1985
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-43080 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [12.1981 - 12.1985] 5M#..MA61 |
17410-43080 |
US $592.59 |
||
|
17410A
|
17410A
90179-10028 Nut, Exhaust Pipe Set Stud Bolt[08.1981 - 02.1984] 21R#,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA6#,SA63,TA60 |
90179-10028 |
from US $2.91 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[02.1984 - 12.1985] 21R#,22REC,4AGE,5M#,2SC,2TB..AA63,MA61,RA6#,SA63,TA60 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[02.1984 - 12.1985] 21R#,22REC,4AGE,5M#,2SC,2TB..AA63,MA61,RA6#,SA63,TA60 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1981 - 12.1985] 18RG,4AGE,5M#..AA63,MA61,RA63 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1981 - 12.1985] 18RG,4AGE,5M#..AA63,MA61,RA63 |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-41080
Bracket, Exhaust Pipe Front (For Front)
[12.1981 - 12.1985] 5M#..MA61 |
17571-41080 |
— | ||
| replacement | |||||
|
17410C
|
17410C
17571-42070
Bracket, Exhaust Pipe Front (For Front)
[12.1981 - 12.1985] 5M#..MA61 |
17571-42070 |
— | ||
|
17410E
|
17410E
90917-04030 Clamp No.1, Exhaust Pipe Front (For Front)[12.1981 - 12.1985] 5M#,2SC..MA61,SA63 |
90917-04030 |
US $4.89 |
||
|
17430
|
17430
17430-43110
Pipe Assy, Exhaust, Tail
[12.1981 - 12.1985] 5M#..MA61 |
17430-43110 |
— | ||
|
17430A
|
17430A
17506-28010 Bracket, Exhaust Tail Pipe(For Front)[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC..AA63,MA61,RA61,63,65,SA63 UPR |
17506-28010 |
US $19.51 |
||
| replacement | |||||
|
17430A
|
17430A
17506-41070 Bracket, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC..AA63,MA61,RA61,63,65,SA63 UPR |
17506-41070 |
US $19.36 |
||
|
17430A
|
17430A
17509-28010 Bracket, Exhaust Tail Pipe(For Front)[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC..AA63,MA61,RA61,63,65,SA63 LWR |
17509-28010 |
US $16.60 |
||
|
17430D
|
17430D
17565-15010 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC..AA63,MA61,RA61,63,65,SA63 |
17565-15010 |
US $10.19 |
||
|
17430F
|
17430F
17507-28010
Bracket, Exhaust Tail Pipe(For Center)
[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC..AA63,MA61,RA61,63,65,SA63 |
17507-28010 |
— | ||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA6#,SA63,TA60 |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17508-26100
Bracket, Exhaust Tail Pipe (For Rear)
[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA6#,SA63,TA60 |
17508-26100 |
— | ||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA6#,SA63,TA60 |
90301-34207 |
US $9.92 |
||
|
17448
|
17448
17448-70020 Baffle, Tail Pipe[12.1981 - 12.1985] 5M#..MA61 |
17448-70020 |
US $47.90 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA6#,SA63,TA60 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1981 - 12.1985] 21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA6#,SA63,TA60 |
90917-06045 |
from US $1.70 |
||
|
9011908281
|
9011908281
90119-08281 New Genuine Part |
90119-08281 |
US $1.75 |
||
|
9151161070
|
9151161070
91511-61070
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-61070 |
— | ||
| replacement | |||||
|
9151161070
|
9151161070
91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91512-61070 |
US $4.16 |
||
|
9151560830
|
9151560830
91515-60830 Bolt Or Ring, Exhaust Pipe Front (for Front) |
91515-60830 |
US $1.89 |
||
| replacement | |||||
|
9151560830
|
9151560830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $1.01 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
