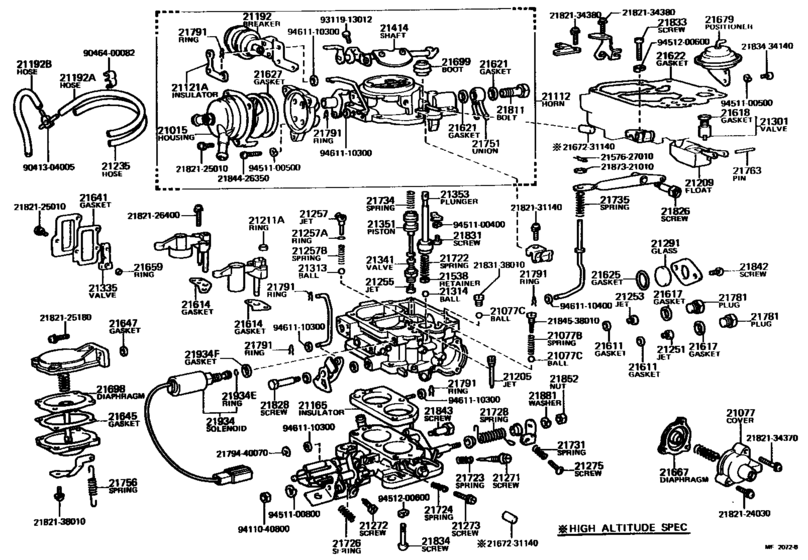

Carburetor ([08.1977 - 08.1978] (7708-7808)) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- U.S.A.
- Frame
- RA42
- grade
- ST
- body
- LB
- ENGINE
- 20R
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21015
|
21015
21015-38011 Housing Sub-Assy, CoilCOIL [08.1977 - 08.1978] 20R..RA42 |
21015-38011 |
US $128.13 |
||
|
21077
|
21077
21077-38013
Cover(For Auxiliary Acceleration Pump)
[08.1977 - 11.1977] 20R..RA42 |
21077-38013 |
— | ||
|
21112
|
21112
21112-38016
Horn, Air
[08.1977 - 08.1978] 20R..RA42 |
21112-38016 |
— | ||
|
21112
|
21112
21112-38252
Horn, Air
[08.1977 - 08.1978] 20R..RA42 HIGH ALTITUDE SPEC |
21112-38252 |
— | ||
|
21112
|
21112
21112-38261
Horn, Air
[08.1977 - 08.1978] 20R..RA42 CANADA SPEC |
21112-38261 |
— | ||
|
21165
|
21165
21165-38012 Insulator[08.1977 - 08.1978] 20R..RA42 |
21165-38012 |
US $133.95 |
||
|
21165
|
21165
21165-38220 Insulator[08.1977 - 08.1978] 20R..RA42 HIGH ALTITUDE SPEC;CALIFORNIA SPEC |
21165-38220 |
US $148.51 |
||
| replacement | |||||
|
21165
|
21165
21165-38221 Insulator[08.1977 - 08.1978] 20R..RA42 HIGH ALTITUDE SPEC;CALIFORNIA SPEC |
21165-38221 |
US $145.60 |
||
|
21192
|
21192
21192-38210
Breaker
[08.1977 - 08.1978] 20R..RA42 |
21192-38210 |
— | ||
|
21192A
|
21192A
95411-19930
Hose(For Carburetor To Manifold)
[08.1977 - 08.1978] 20R..RA42..3FC *H,L=260; 20R..RA42..MTM *H,L=200 |
95411-19930 |
— | ||
| replacement | |||||
|
21192A
|
21192A
90999-92002
Air Hose (300 mm)
[08.1977 - 08.1978] 20R..RA42..3FC *H,L=260; 20R..RA42..MTM *H,L=200 |
90999-92002 |
— | ||
|
21192B
|
21192B
95411-19930
Hose(For Carburetor To Manifold)
[08.1977 - 08.1978] 20R..RA42..MTM *H,L=60 |
95411-19930 |
— | ||
| replacement | |||||
|
21192B
|
21192B
90999-92002
Air Hose (300 mm)
[08.1977 - 08.1978] 20R..RA42..MTM *H,L=60 |
90999-92002 |
— | ||
|
21209
|
21209
21209-38010 Float Sub-Assy[08.1977 - 06.1978] 20R..RA42 |
21209-38010 |
US $11.50 |
||
| replacement | |||||
|
21209
|
21209
21209-33011
Float Sub-Assy
[08.1977 - 06.1978] 20R..RA42 |
21209-33011 |
— | ||
|
21211A
|
21211A
21659-38110 Ring(For Small Venturi)[08.1977 - 08.1978] 20R..RA42 HIGH ALTITUDE SPEC |
21659-38110 |
US $15.43 |
||
|
21235
|
21235
95411-19930
Hose(For Carburetor To Manifold)
[08.1977 - 08.1978] 20R..RA42 *H,L=140 |
95411-19930 |
— | ||
| replacement | |||||
|
21235
|
21235
90999-92002
Air Hose (300 mm)
[08.1977 - 08.1978] 20R..RA42 *H,L=140 |
90999-92002 |
— | ||
|
21251
|
21251
90999-41119
Jet, 1St Main
[08.1977 - 08.1978] 20R..RA42..MTM ID=1.19 |
90999-41119 |
— | ||
|
21251
|
21251
90999-41123 Jet, 1St Main1ST MAIN [08.1977 - 08.1978] 20R..RA42..MTM HIGH ALTITUDE SPEC,ID=1.23; 20R..RA42..3FC CALIFORNIA SPEC,ID=1.23 |
90999-41123 |
US $5.39 |
||
|
21253
|
21253
90999-42165
Jet, 2Nd Main
[08.1977 - 08.1978] 20R..RA42 HIGH ALTITUDE SPEC,ID=1.65 |
90999-42165 |
— | ||
|
21255
|
21255
90999-43050 Jet, Power[08.1977 - 08.1978] 20R..RA42 ID=0.50 |
90999-43050 |
US $6.12 |
||
|
21275
|
21275
21844-26030
Screw, Adjusting
[08.1977 - 08.1978] 20R..RA42 |
21844-26030 |
— | ||
|
21335
|
21335
21335-38010
Valve, Thermostatic
[08.1977 - 08.1978] 20R..RA42 |
21335-38010 |
— | ||
|
21622
|
21622
21622-38240 Gasket, Air Horn[08.1977 - 08.1978] 20R..RA42 |
21622-38240 |
US $10.19 |
||
| replacement | |||||
|
21622
|
21622
21622-38221 Gasket, Air Horn[08.1977 - 08.1978] 20R..RA42 |
21622-38221 |
US $9.46 |
||
|
21679
|
21679
21609-38010 Positioner[08.1977 - 05.1978] 20R..RA42 |
21609-38010 |
US $115.02 |
||
| replacement | |||||
|
21679
|
21679
21609-38220
Positioner
[08.1977 - 05.1978] 20R..RA42 |
21609-38220 |
— | ||
|
21679
|
21679
21609-38220
Positioner
[05.1978 - 08.1978] 20R..RA42 |
21609-38220 |
— | ||
|
21728
|
21728
21756-34330
Spring, Back(For Throttle Shaft)
[08.1977 - 08.1978] 20R..RA42 |
21756-34330 |
— | ||
|
21731
|
21731
21723-10010
Spring, Dash Pot Or Positioner Adjusting
[08.1977 - 08.1978] 20R..RA42 |
21723-10010 |
— | ||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[08.1977 - 08.1978] 20R..RA42 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[08.1977 - 08.1978] 20R..RA42 |
21791-13010 |
from US $1.76 |
||
|
21826
|
21826
21826-38010
Screw, Pump Arm Set
[08.1977 - 08.1978] 20R..RA42 |
21826-38010 |
— | ||
|
21828
|
21828
21828-38010
Screw, 1St Idle Set
[08.1977 - 08.1978] 20R..RA42 |
21828-38010 |
— | ||
|
21843
|
21843
21842-38010 Screw Or Pin (For Dash Pot Or Positioner Lever)[08.1977 - 08.1978] 20R..RA42 |
21842-38010 |
US $6.99 |
||
|
21934
|
21934
21062-38013
Solenoid, Throttle Valve
[08.1977 - 08.1978] 20R..RA42 |
21062-38013 |
— | ||
|
21934
|
21934
21062-38220 Solenoid, Throttle Valve[08.1977 - 08.1978] 20R..RA42 HIGH ALTITUDE SPEC;CALIFORNIA SPEC |
21062-38220 |
US $149.97 |
||
| replacement | |||||
|
21934
|
21934
21062-61060
Solenoid, Throttle Valve
[08.1977 - 08.1978] 20R..RA42 HIGH ALTITUDE SPEC;CALIFORNIA SPEC |
21062-61060 |
— | ||
|
2157627010
|
2157627010
21576-27010
Clip, Pump Strainer
|
21576-27010 |
— | ||
|
2167231140
|
2167231140
21672-31140
Cap
|
21672-31140 |
— | ||
|
2179440070
|
2179440070
21794-40070 Ring, Retainer, No.1(For Throttle Shaft) |
21794-40070 |
US $2.77 |
||
|
2182124030
|
2182124030
21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set) |
21821-24030 |
US $3.79 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
2182126400
|
2182126400
21821-26400 Screw, 2nd Throttle Valve Set |
21821-26400 |
US $3.20 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2182134370
|
2182134370
21821-34370
Screw, 2nd Throttle Valve Set
|
21821-34370 |
— | ||
|
2182134380
|
2182134380
21821-34380
Screw, 2nd Throttle Valve Set
|
21821-34380 |
— | ||
|
2182138010
|
2182138010
21821-38010
Screw, 2nd Throttle Valve Set
|
21821-38010 |
— | ||
|
2183138010
|
2183138010
21831-38010 Screw, Power Piston Stop |
21831-38010 |
US $4.37 |
||
|
2183434140
|
2183434140
21834-34140
Screw, Set, No.2(for Carburetor Body Set)
|
21834-34140 |
— | ||
|
2184426350
|
2184426350
21844-26350
Screw, Thermostat Case Set
|
21844-26350 |
— | ||
|
2184538010
|
2184538010
21845-38010 Screw, 1St Idle Set |
21845-38010 |
US $5.39 |
||
|
2187321010
|
2187321010
21873-21010
Washer, Plunger
|
21873-21010 |
— | ||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9311913012
|
9311913012
93119-13012 New Genuine Part |
93119-13012 |
US $1.75 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
