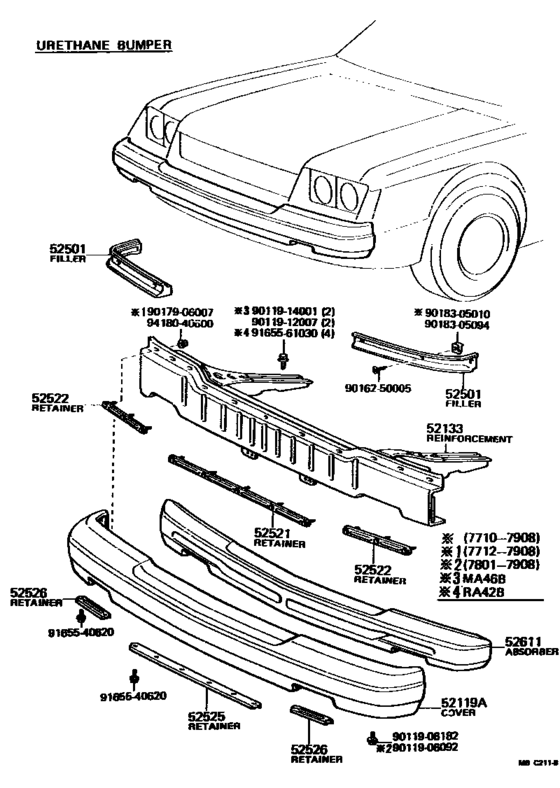

Front Bumper & Bumper Stay ([08.1977 - 08.1979] (7708-7908)) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- U.S.A.
- Frame
- RA42
- grade
- ST
- body
- LB
- ENGINE
- 20R
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52119A
|
52119A
52119-14020
Cover, Front Bumper
[08.1977 - 08.1979] RA42 |
52119-14020 |
— | ||
|
52119A
|
52119A
52119-14021
Cover, Front Bumper
[08.1979 - 07.1981] RA4# |
52119-14021 |
— | ||
|
52133
|
52133
52021-14020
Reinforcement, Front Bumper
[08.1977 - 08.1979] RA42 |
52021-14020 |
— | ||
|
52133
|
52133
52021-14021 Reinforcement, Front BumperFRONT BUMPER [08.1979 - 07.1981] RA4# |
52021-14021 |
US $490.67 |
||
|
52501
|
52501
52502-14010
Filler Sub-Assy, Front Bumper
[08.1977 - 08.1979] MA46,RA42 RH |
52502-14010 |
— | ||
|
52501
|
52501
52503-14010
Filler Sub-Assy, Front Bumper
[08.1977 - 08.1979] MA46,RA42 LH |
52503-14010 |
— | ||
|
52521
|
52521
52521-14020
Retainer, Front Bumper, Upper Center
[08.1977 - 07.1981] MA4#,RA4# |
52521-14020 |
— | ||
|
52522
|
52522
52522-14010
Retainer, Front Bumper Upper Side
[08.1977 - 07.1981] RA4# |
52522-14010 |
— | ||
|
52525
|
52525
52525-14010
Retainer, Front Bumper, Lower Center
[08.1977 - 08.1979] RA42 |
52525-14010 |
— | ||
|
52525
|
52525
52525-14020
Retainer, Front Bumper, Lower Center
[08.1979 - 07.1981] MA4#,RA4# |
52525-14020 |
— | ||
|
52526
|
52526
52526-14010 Retainer, Front Bumper, Lower Side Rh[08.1977 - 07.1981] MA4#,RA4# |
52526-14010 |
US $4.66 |
||
|
52611
|
52611
52611-14010
Absorber, Front Bumper Energy
[08.1977 - 08.1979] RA42 |
52611-14010 |
— | ||
|
52611
|
52611
52611-14011 Absorber, Front Bumper EnergyFRONT BUMPER ENERGY [08.1979 - 07.1981] RA4# |
52611-14011 |
US $273.73 |
||
|
9011906092
|
9011906092
90119-06092
New Genuine Part
|
90119-06092 |
— | ||
| replacement | |||||
|
9011906092
|
9011906092
90119-06699 BOLT WWASHER |
90119-06699 |
from US $0.74 |
||
|
9011906182
|
9011906182
90119-06182 Bolt, W/washer (For Floor Shift) |
90119-06182 |
US $1.44 |
||
|
9011912007
|
9011912007
90119-12007 New Genuine Part |
90119-12007 |
US $4.16 |
||
|
9011914001
|
9011914001
90119-14001 New Genuine Part |
90119-14001 |
US $7.28 |
||
|
9016250005
|
9016250005
90162-50005 New Genuine Part |
90162-50005 |
US $1.75 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9018305010
|
9018305010
90183-05010 NUT |
90183-05010 |
US $2.33 |
||
| replacement | |||||
|
9018305010
|
9018305010
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
|
9165561030
|
9165561030
91655-61030
Bolt(For Transaxle Case & Engine Setting)
|
91655-61030 |
— | ||
| replacement | |||||
|
9165561030
|
9165561030
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
