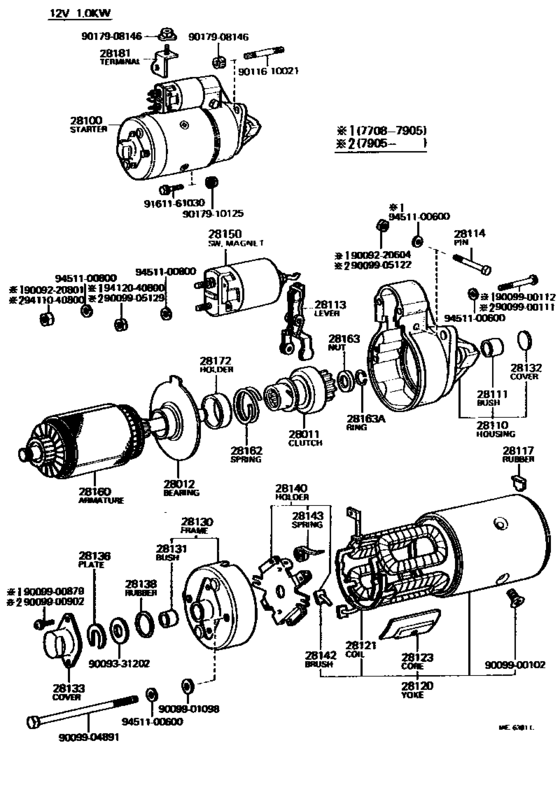

Starter ([08.1977 - 08.1980] (7708-8008)20R) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- U.S.A.
- Frame
- RA42
- grade
- ST
- body
- LB
- ENGINE
- 20R
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9009220604
|
9009220604
90092-20604
Nut, Wire Adjusting, No.1
|
90092-20604 |
— | ||
| replacement | |||||
|
9009220604
|
9009220604
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9009220801
|
9009220801
90092-20801
New Genuine Part
|
90092-20801 |
— | ||
| replacement | |||||
|
9009220801
|
9009220801
90099-05809
New Genuine Part
|
90099-05809 |
— | ||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009900102
|
9009900102
90099-00102
New Genuine Part
|
90099-00102 |
— | ||
|
9009900111
|
9009900111
90099-00111
New Genuine Part
|
90099-00111 |
— | ||
|
9009900112
|
9009900112
90099-00112
New Genuine Part
|
90099-00112 |
— | ||
|
9009900879
|
9009900879
90099-00879
Screw, W/washer(For Bearing Cover Setting)
|
90099-00879 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009901098
|
9009901098
90099-01098
New Genuine Part
|
90099-01098 |
— | ||
|
9009904891
|
9009904891
90099-04891
New Genuine Part
|
90099-04891 |
— | ||
|
9009905122
|
9009905122
90099-05122
New Genuine Part
|
90099-05122 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9011610021
|
9011610021
90116-10021 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10021 |
from US $3.14 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.09 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
