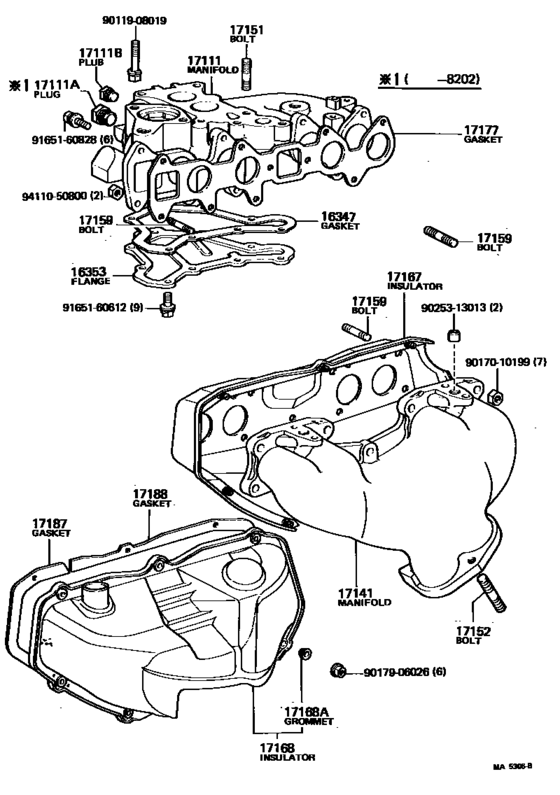

Manifold ([08.1981 - 08.1982] (8108-8208)21RC..RA61) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- General
- Frame
- RA61
- grade
- ST
- body
- LB
- ENGINE
- 21RC
- TRANSMISSION
- MTM
- From
- 08.1981
- To
- 07.1985
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16347
|
16347
16347-35030
Gasket, Water By-Pass
[08.1984 - 07.1985] 21R#..RA61 |
16347-35030 |
— | ||
| replacement | |||||
|
16347
|
16347
16347-35040
Gasket, Water By-Pass
[08.1984 - 07.1985] 21R#..RA61 |
16347-35040 |
— | ||
|
16347
|
16347
16347-37010 Gasket, Water By-PassWATER BY-PASS [08.1981 - 08.1982] 21R#..RA60,61..EUR,GEN,ME |
16347-37010 |
US $9.90 |
||
| replacement | |||||
|
16347
|
16347
16347-37011 Gasket, Water By-Pass[08.1981 - 08.1982] 21R#..RA60,61..EUR,GEN,ME |
16347-37011 |
US $9.76 |
||
|
16347
|
16347
16347-37020 Gasket, Water By-PassWATER BY-PASS [08.1982 - 08.1984] 21R#..RA60,61..EUR,GEN,ME,SAA |
16347-37020 |
US $6.84 |
||
| replacement | |||||
|
16347
|
16347
16347-37021 Gasket, Water By-Pass[08.1982 - 08.1984] 21R#..RA60,61..EUR,GEN,ME,SAA |
16347-37021 |
US $6.70 |
||
|
16353
|
16353
16353-35030 Flange, Water By-Pass[08.1984 - 07.1985] 21R#..RA61 |
16353-35030 |
US $91.73 |
||
|
16353
|
16353
16353-37020 Flange, Water By-PassWATER BY-PASS [08.1981 - 04.1982] 21R#..RA60,61..EUR,GEN,ME |
16353-37020 |
US $93.18 |
||
|
16353
|
16353
16353-37030
Flange, Water By-Pass
[08.1982 - 08.1984] 21R#..RA61..EUR |
16353-37030 |
— | ||
|
17111
|
17111
17111-35040 Manifold, Intake[08.1984 - 07.1985] 21R#..RA61 |
17111-35040 |
US $422.24 |
||
|
17111
|
17111
17111-37010
Manifold, Intake
[08.1981 - 07.1982] 21R#..RA60,61..EUR,GEN,ME |
17111-37010 |
— | ||
|
17111
|
17111
17111-37020 Manifold, IntakeINTAKE [07.1982 - 08.1984] 21R#..RA60,61..EUR,GEN,ME,SAA |
17111-37020 |
US $381.47 |
||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[08.1981 - 02.1982] 21R#..RA60,61; 2TB..TA60 |
90345-51025 |
US $3.36 |
||
|
17111B
|
17111B
90345-53007 Plug, W/head Taper Screw, No.1[08.1982 - 07.1985] 21RC..RA60,61 |
90345-53007 |
from US $4.04 |
||
|
17141
|
17141
17141-35040 Manifold, ExhaustEXHAUST [07.1982 - 08.1984] 21RC..RA61 |
17141-35040 |
US $451.36 |
||
|
17141
|
17141
17141-35090
Manifold, Exhaust
[08.1984 - 07.1985] 21RC..RA61 |
17141-35090 |
— | ||
|
17141
|
17141
17141-38021
Manifold, Exhaust
[08.1981 - 07.1982] 21RC..RA61 |
17141-38021 |
— | ||
|
17151
|
17151
90116-08051
Bolt, Stud(For Manifold To Carburetor)
[08.1981 - 07.1985] 21R#..RA60,61 L=40,S=11&11 |
90116-08051 |
— | ||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[08.1981 - 03.1983] 5MGE..MA61 L=46.5,S=14&20; 21R#,18RG..RA6# L=46.5,S=14&20 |
90116-10058 |
from US $2.44 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[03.1983 - 07.1985] 21R#,22REC..RA60,61,65 L=46.5,S=14&20 |
90116-10087 |
from US $2.40 |
||
|
17159
|
17159
90116-08013
Bolt, Stud(For Fuel Pump)
[08.1981 - 10.1982] 21R#..RA60,61 INTAKE MANIFOLD |
90116-08013 |
— | ||
|
17159
|
17159
90116-08172 Bolt, Stud(For Manifold To Cylinder Head)[10.1982 - 07.1985] 21R#,22REC..RA60,61,65 INTAKE MANIFOLD,L=37,S=9&18.5 |
90116-08172 |
US $2.80 |
||
|
17159
|
17159
90116-10011
Bolt, Stud(For Manifold To Cylinder Head)
[08.1981 - 06.1982] 21R#..RA60,61 EXHAUST MANIFOLD,L=42,S=12&25 |
90116-10011 |
— | ||
|
17159
|
17159
90116-10064 Bolt, Stud(For Manifold To Cylinder Head)[06.1982 - 07.1985] 21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,LWR |
90116-10064 |
US $3.20 |
||
|
17159
|
17159
90116-10067 Bolt, Stud(For Manifold To Cylinder Head)[06.1982 - 07.1985] 21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,UPR |
90116-10067 |
US $3.20 |
||
|
17159
|
17159
90116-10317 Bolt, Stud(For Manifold To Cylinder Head)[08.1981 - 06.1982] 21R#..RA60,61 EXHAUST MANIFOLD,L=36,S=13&13 |
90116-10317 |
US $1.75 |
||
|
17167
|
17167
17167-35010
Insulator, Exhaust Manifold Heat, No.1
[08.1981 - 12.1981] 21RC..RA60,61 |
17167-35010 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-35011
Insulator, Exhaust Manifold Heat, No.1
[08.1981 - 12.1981] 21RC..RA60,61 |
17167-35011 |
— | ||
|
17167
|
17167
17167-35011
Insulator, Exhaust Manifold Heat, No.1
[12.1981 - 08.1982] 21RC..RA60,61 |
17167-35011 |
— | ||
|
17168
|
17168
17167-35040
Insulator, Exhaust Manifold Heat, No.2
[08.1982 - 07.1985] 21RC..RA60,61 |
17167-35040 |
— | ||
| replacement | |||||
|
17168
|
17168
17167-35041
Insulator, Exhaust Manifold Heat, No.2
[08.1982 - 07.1985] 21RC..RA60,61 |
17167-35041 |
— | ||
|
17168
|
17168
17168-37020 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [08.1981 - 08.1982] 21R#..RA60,61 |
17168-37020 |
US $100.46 |
||
|
17168A
|
17168A
90480-11001
Grommet(For Exhaust Manifold Heat Insulator)
[08.1981 - 08.1982] 21R#..RA60,61 OD=11.5 |
90480-11001 |
— | ||
|
17168A
|
17168A
90480-12001
Grommet(For Exhaust Manifold Heat Insulator)
[08.1981 - 08.1982] 21R#..RA60,61 OD=12.5 |
90480-12001 |
— | ||
|
17177
|
17177
17177-35030 Gasket, Intake Manifold To Head, No.1[08.1984 - 07.1985] 21R..RA61..4FC..SAA; 21R#,22REC..RA6#..ARL,EUR |
17177-35030 |
US $9.90 |
||
| replacement | |||||
|
17177
|
17177
17177-35050 Gasket, Intake Manifold To Head, No.1[08.1984 - 07.1985] 21R..RA61..4FC..SAA; 21R#,22REC..RA6#..ARL,EUR |
17177-35050 |
US $11.53 |
||
|
17177
|
17177
17177-37020 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [03.1983 - 08.1984] 21RC..RA61 |
17177-37020 |
US $9.17 |
||
| replacement | |||||
|
17177
|
17177
17177-37021
Gasket, Intake Manifold To Head, No.1
[03.1983 - 08.1984] 21RC..RA61 |
17177-37021 |
— | ||
|
17177
|
17177
17177-38021
Gasket, Intake Manifold To Head, No.1
[08.1981 - 03.1983] 21RC..RA61 |
17177-38021 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-37021
Gasket, Intake Manifold To Head, No.1
[08.1981 - 03.1983] 21RC..RA61 |
17177-37021 |
— | ||
|
17187
|
17187
17187-38020
Gasket, Heat Insulator, No.1
[08.1981 - 08.1982] 21R#..RA60,61 |
17187-38020 |
— | ||
|
17188
|
17188
17188-38010
Gasket, Heat Insulator, No.2
[08.1981 - 08.1982] 21R#..RA60,61 |
17188-38010 |
— | ||
|
9011908019
|
9011908019
90119-08019 Bolt, Stud(For Manifold To Carburetor) |
90119-08019 |
US $3.06 |
||
|
9017010199
|
9017010199
90170-10199 Nut, Exhaust Pipe Set Stud Bolt |
90170-10199 |
US $4 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9025313013
|
9025313013
90253-13013
Pin, Ring(For Oil Seal Retainer, No.2)
|
90253-13013 |
— | ||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165160828
|
9165160828
91651-60828 Bolt |
91651-60828 |
from US $1.89 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
