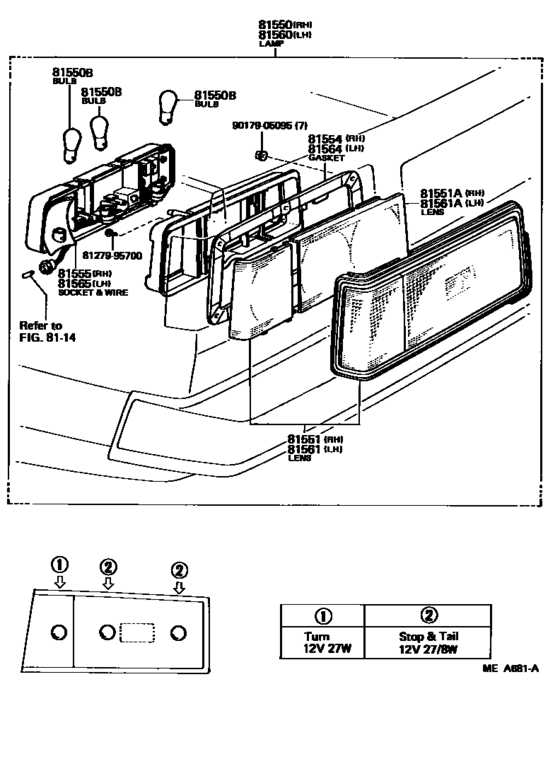

Rear Combination Lamp ([08.1981 - 08.1983] (8108-8308)CP) Diagram Toyota CELICA
- Year
- 1982 - 1985
- Sales region
- U.S.A.
- Frame
- RA65
- grade
- GTS
- body
- CP
- ENGINE
- 22REC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1985
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80138
Lamp Assy, Rear Combination, Rh
[07.1982 - 08.1983] RA6#..CP |
81550-80138 |
— | ||
|
81550
|
81550
81550-80192
Lamp Assy, Rear Combination, Rh
[08.1983 - 07.1985] RA6#..CP,CVT |
81550-80192 |
— | ||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1981 - 12.1985] MA61,RA6# 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1981 - 12.1985] MA61,RA6# 12V 27/8W,12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-14430 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1981 - 08.1983] RA6#..CP |
81551-14430 |
US $190.74 |
||
|
81551
|
81551
81551-14431 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1983 - 07.1985] RA6#..CP,CVT |
81551-14431 |
US $200.93 |
||
|
81551A
|
81551A
81552-14460 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [07.1982 - 08.1983] RA6#..CP |
81552-14460 |
US $33.63 |
||
|
81554
|
81554
81554-14430
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 08.1983] RA6#..CP |
81554-14430 |
— | ||
|
81554
|
81554
81554-14431
Gasket, Rear Combination Lamp Body, Rh
[08.1983 - 07.1985] RA6#..CP,CVT |
81554-14431 |
— | ||
|
81555
|
81555
81555-14461 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [07.1982 - 08.1983] RA6#..CP |
81555-14461 |
US $66.83 |
||
|
81555
|
81555
81555-14462 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1983 - 07.1985] RA6#..CP,CVT |
81555-14462 |
US $62.03 |
||
|
81560
|
81560
81560-80142
Lamp Assy, Rear Combination, Lh
[07.1982 - 08.1983] RA6#..CP |
81560-80142 |
— | ||
|
81560
|
81560
81560-80197
Lamp Assy, Rear Combination, Lh
[08.1983 - 07.1985] RA6#..CP,CVT |
81560-80197 |
— | ||
|
81561
|
81561
81561-14430 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1981 - 08.1983] RA6#..CP |
81561-14430 |
US $190.74 |
||
|
81561
|
81561
81561-14431
Lens, Rear Combination Lamp, Lh
[08.1983 - 07.1985] RA6#..CP,CVT |
81561-14431 |
— | ||
|
81561A
|
81561A
81562-14460 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [07.1982 - 08.1983] RA6#..CP |
81562-14460 |
US $33.63 |
||
|
81564
|
81564
81554-14430
Gasket, Rear Combination Lamp Body, Rh
[08.1981 - 08.1983] RA6#..CP |
81554-14430 |
— | ||
|
81564
|
81564
81554-14431
Gasket, Rear Combination Lamp Body, Rh
[08.1983 - 07.1985] RA6#..CP,CVT |
81554-14431 |
— | ||
|
81565
|
81565
81565-14461
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[07.1982 - 08.1983] RA6#..CP |
81565-14461 |
— | ||
|
81565
|
81565
81565-14462 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1983 - 07.1985] RA6#..CP,CVT |
81565-14462 |
US $62.03 |
||
|
8127995700
|
8127995700
81279-95700
Washer, Side Turn Signal Lamp
|
81279-95700 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
