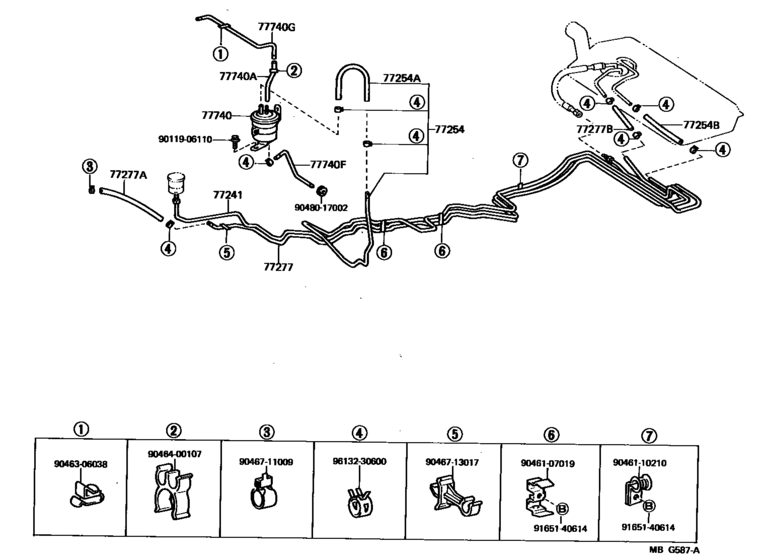

Fuel Tank & Tube ([08.1984 - 07.1985] (8408-8507)RA65) Diagram Toyota CELICA
- Year
- 1984 - 1985
- Sales region
- Europe
- Frame
- RA65
- grade
- ST
- body
- CP
- ENGINE
- 22REC
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 07.1985
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77241
|
77241
77251-14360 Tube, Fuel Main, No.1FUEL MAIN, NO.1 [08.1984 - 07.1985] RA65 |
77251-14360 |
US $63.34 |
||
|
77254
|
77254
77261-14191 Tube, Fuel Emission, No.1[08.1984 - 07.1985] RA65 |
77261-14191 |
US $64.94 |
||
|
77254A
|
77254A
95332-06030
Hose(For Carburetor)
[08.1981 - 07.1985] RA60,65,SA63..ARL *H,L=260 |
95332-06030 |
— | ||
| replacement | |||||
|
77254A
|
77254A
95333-06030
Hose, Fuel
[08.1981 - 07.1985] RA60,65,SA63..ARL *H,L=260 |
95333-06030 |
— | ||
|
77254B
|
77254B
95332-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1983 - 12.1985] MA61,RA65,SA63..ARL *H,L=140 |
95332-06020 |
— | ||
| replacement | |||||
|
77254B
|
77254B
95337-06020 Hose, Differential Pressure Control[08.1983 - 12.1985] MA61,RA65,SA63..ARL *H,L=140 |
95337-06020 |
from US $9.12 |
||
|
77277
|
77277
77255-14210
Tube, Fuel Return, No.1
[08.1984 - 07.1985] RA65 |
77255-14210 |
— | ||
|
77277A
|
77277A
90447-12022
Hose, Fuel
[08.1984 - 07.1985] RA65 L=300 |
90447-12022 |
— | ||
|
77277B
|
77277B
95332-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1981 - 07.1985] AA63,RA61,65,SA63 *H,L=140 |
95332-06020 |
— | ||
| replacement | |||||
|
77277B
|
77277B
95337-06020 Hose, Differential Pressure Control[08.1981 - 07.1985] AA63,RA61,65,SA63 *H,L=140 |
95337-06020 |
from US $9.12 |
||
|
77740
|
77740
77740-14300
Canister Assy, Charcoal
[08.1981 - 07.1985] RA60,65,SA63..ARL |
77740-14300 |
— | ||
|
77740A
|
77740A
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
[08.1984 - 07.1985] RA65 *H,L=420,MARK=#* |
95411-19960 |
— | ||
| replacement | |||||
|
77740A
|
77740A
90999-92003
Hose, Breather (For Transfer Case)
[08.1984 - 07.1985] RA65 *H,L=420,MARK=#* |
90999-92003 |
— | ||
|
77740F
|
77740F
77264-14090
Tube, Fuel, No.1(For Charcoal Canister)
[08.1981 - 07.1985] RA60,65,SA63..ARL |
77264-14090 |
— | ||
|
77740G
|
77740G
23819-27020 Tube, Fuel, No.2(For Charcoal Canister)[08.1981 - 07.1985] RA60,65,SA63..ARL |
23819-27020 |
US $15.43 |
||
|
9011906110
|
9011906110
90119-06110
New Genuine Part
|
90119-06110 |
— | ||
| replacement | |||||
|
9011906110
|
9011906110
90119-06442 BOLT WWASHER |
90119-06442 |
US $1.92 |
||
|
9046107019
|
9046107019
90461-07019
New Genuine Part
|
90461-07019 |
— | ||
|
9046110210
|
9046110210
90461-10210
New Genuine Part
|
90461-10210 |
— | ||
|
9046306038
|
9046306038
90463-06038
New Genuine Part
|
90463-06038 |
— | ||
|
9046400107
|
9046400107
90464-00107
New Genuine Part
|
90464-00107 |
— | ||
|
9046711009
|
9046711009
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-11009 |
— | ||
| replacement | |||||
|
9046711009
|
9046711009
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
|
9046713017
|
9046713017
90467-13017 New Genuine Part |
90467-13017 |
US $2.18 |
||
|
9048017002
|
9048017002
90480-17002 New Genuine Part |
90480-17002 |
US $3.20 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
