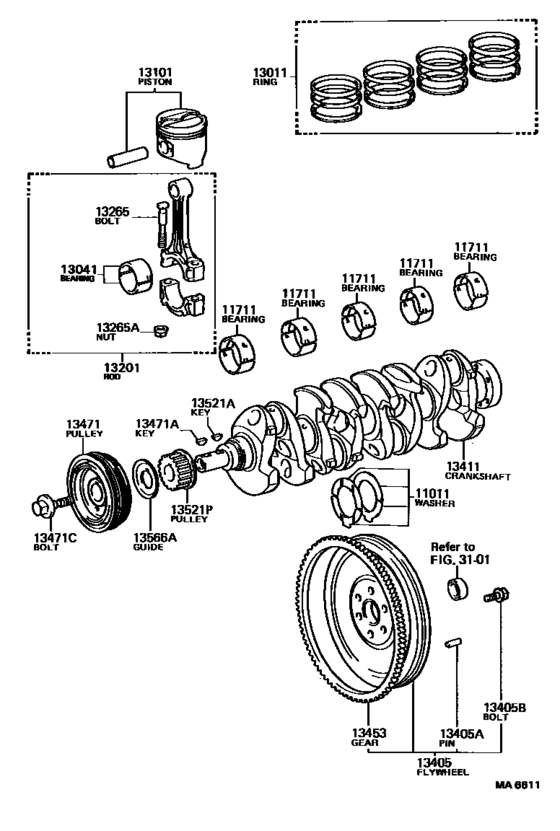

Crankshaft & Piston ([08.1983 - 08.1984] (8308-8408)2SC) Diagram Toyota CELICA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- SA63
- grade
- ST
- body
- CP
- ENGINE
- 2SC
- TRANSMISSION
- ATM
- From
- 08.1983
- To
- 08.1984
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[08.1981 - 07.1985] 2SC..SA63 STD,STD; 2T#..TA60 STD,STD |
11011-25010 |
from US $20.67 |
||
|
11711
|
11711
11701-63020-01 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.3 MARK"1",MARK 1 |
11701-63020-01 |
US $44.99 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-01
Bearing, Crankshaft
[08.1983 - 08.1984] 2SC..SA63 NO.3 MARK"1",MARK 1 |
11071-63021-01 |
— | ||
|
11711
|
11711
11701-63020-02 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.3 MARK"2",MARK 2 |
11701-63020-02 |
US $44.99 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-02
Bearing, Crankshaft
[08.1983 - 08.1984] 2SC..SA63 NO.3 MARK"2",MARK 2 |
11071-63021-02 |
— | ||
|
11711
|
11711
11701-63020-03 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.3 MARK"3",MARK 3 |
11701-63020-03 |
US $44.99 |
||
| replacement | |||||
|
11711
|
11711
11071-63021-03 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.3 MARK"3",MARK 3 |
11071-63021-03 |
US $53.14 |
||
|
11711
|
11711
11701-70012-01 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.1,2,4,5 MARK"1",MARK 1 |
11701-70012-01 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-01 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.1,2,4,5 MARK"1",MARK 1 |
11701-63022-01 |
US $49.80 |
||
|
11711
|
11711
11701-70012-02 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.1,2,4,5 MARK"2",MARK 2 |
11701-70012-02 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-02 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.1,2,4,5 MARK"2",MARK 2 |
11701-63022-02 |
US $49.80 |
||
|
11711
|
11711
11701-70012-03 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.1,2,4,5 MARK"3",MARK 3 |
11701-70012-03 |
US $42.66 |
||
| replacement | |||||
|
11711
|
11711
11701-63022-03 Bearing, Crankshaft[08.1983 - 08.1984] 2SC..SA63 NO.1,2,4,5 MARK"3",MARK 3 |
11701-63022-03 |
US $48.40 |
||
|
13011
|
13011
13011-74030
Ring Set, Piston
[08.1983 - 08.1984] 2SC..SA63 STD |
13011-74030 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-74041 Ring Set, PistonPISTON [08.1983 - 08.1984] 2SC..SA63 STD |
13011-74041 |
US $232.96 |
||
|
13011
|
13011
13013-74030
Ring Set, Piston
[08.1983 - 08.1984] 2SC..SA63 O/S 0.50 |
13013-74030 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-74041 Ring Set, PistonPISTON [08.1983 - 08.1984] 2SC..SA63 O/S 0.50 |
13013-74041 |
US $227.14 |
||
|
13011
|
13011
13014-74030
Ring Set, Piston
[08.1983 - 08.1984] 2SC..SA63 O/S 0.75 |
13014-74030 |
— | ||
| replacement | |||||
|
13011
|
13011
13014-74041 Ring Set, Piston[08.1983 - 08.1984] 2SC..SA63 O/S 0.75 |
13014-74041 |
US $227.14 |
||
|
13011
|
13011
13015-74030
Ring Set, Piston
[08.1983 - 08.1984] 2SC..SA63 O/S 1.00 |
13015-74030 |
— | ||
| replacement | |||||
|
13011
|
13011
13015-74041 Ring Set, PistonPISTON [08.1983 - 08.1984] 2SC..SA63 O/S 1.00 |
13015-74041 |
US $227.14 |
||
|
13041
|
13041
13041-63020-01 Bearing, Connecting Rod[08.1983 - 08.1984] 2SC..SA63 MARK"1",MARK 1 |
13041-63020-01 |
US $15.38 |
||
|
13041
|
13041
13041-63020-02 Bearing, Connecting Rod[08.1983 - 08.1984] 2SC..SA63 MARK"2",MARK 2 |
13041-63020-02 |
US $15.87 |
||
|
13041
|
13041
13041-63020-03 Bearing, Connecting Rod[08.1983 - 08.1984] 2SC..SA63 MARK"3",MARK 3 |
13041-63020-03 |
US $15.87 |
||
|
13101
|
13101
13101-74010 Piston Sub-Assy, W/pinW/PIN [08.1983 - 08.1984] 2SC..SA63 STD |
13101-74010 |
US $100.46 |
||
|
13101
|
13101
13103-74010 Piston Sub-Assy, W/pinW/PIN [08.1983 - 08.1984] 2SC..SA63 O/S 0.50 |
13103-74010 |
from US $60.06 |
||
|
13101
|
13101
13104-74010 Piston Sub-Assy, W/pinW/PIN [08.1983 - 08.1984] 2SC..SA63 O/S 0.75 |
13104-74010 |
US $100.46 |
||
|
13101
|
13101
13105-74010 Piston Sub-Assy, W/pinW/PIN [08.1983 - 08.1984] 2SC..SA63 O/S 1.00 |
13105-74010 |
US $100.46 |
||
|
13201
|
13201
13201-69015 Rod Sub-Assy, Connecting[08.1983 - 05.1984] 2SC..SA63 |
13201-69015 |
US $180.54 |
||
| replacement | |||||
|
13201
|
13201
13201-69055
Rod Sub-Assy, Connecting
[08.1983 - 05.1984] 2SC..SA63 |
13201-69055 |
— | ||
|
13201
|
13201
13201-69055
Rod Sub-Assy, Connecting
[05.1984 - 08.1984] 2SC..SA63 |
13201-69055 |
— | ||
|
13265
|
13265
13265-63010
Bolt, Connecting Rod
[08.1983 - 08.1984] 2SC..SA63 |
13265-63010 |
— | ||
|
13265A
|
13265A
90179-09001
Nut, Hexagon(For Connecting Rod Bolt)
[08.1983 - 08.1984] 2SC..SA63 |
90179-09001 |
— | ||
|
13411
|
13411
13411-63010 Crankshaft[08.1983 - 08.1984] 2SC..SA63 |
13411-63010 |
US $1,201.20 |
||
|
13471
|
13471
13408-63011 Pulley, Crankshaft[08.1983 - 08.1984] 2SC..SA63 |
13408-63011 |
US $170.35 |
||
|
13471A
|
13471A
95161-10519 Key(For Oil Pump Drive Spline)[08.1983 - 08.1984] 2SC..SA63 |
95161-10519 |
from US $4.16 |
||
|
13471C
|
13471C
90105-14011 Bolt(For Crankshaft Pulley Set)[08.1983 - 08.1984] 2SC..SA63 |
90105-14011 |
US $15.72 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[08.1983 - 08.1984] 2SC..SA63 |
95161-10519 |
from US $4.16 |
||
|
13521P
|
13521P
13521-63010 Pulley, Crankshaft Timing[08.1983 - 08.1984] 2SC..SA63 |
13521-63010 |
US $29.99 |
||
|
13566A
|
13566A
13567-63010 Guide, Timing Belt[08.1983 - 08.1984] 2SC..SA63 |
13567-63010 |
US $11.65 |
||
