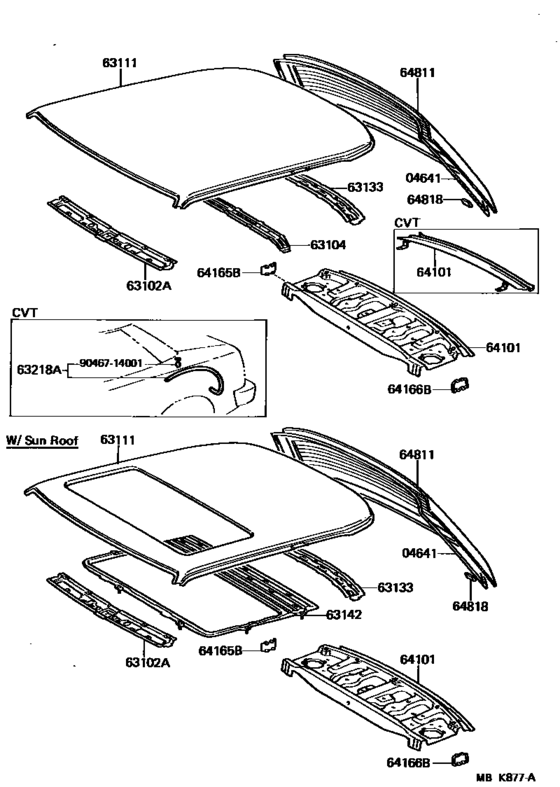

Roof Panel & Back Window Glass ([08.1985 - ] (8508- )CP,CVT) Diagram Toyota CELICA
- Year
- 1985 - 1986
- Sales region
- Europe
- Frame
- ST161
- grade
- ST
- body
- CP
- ENGINE
- 2SELC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1985
- To
- 08.1986
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641
|
04641
04562-30040 Dam Kit, Windshield Glass[08.1985 - 08.1987] ST16#..CP |
04562-30040 |
from US $36.33 |
||
|
63102A
|
63102A
63102-20090 Panel Sub-Assy, Windshield Header[08.1985 - 08.1987] ST16#..CP,LB |
63102-20090 |
US $54.16 |
||
|
63104
|
63104
63141-20060 Reinforcement Sub-Assy, Roof Panel, Center[08.1985 - 08.1987] ST16# |
63141-20060 |
US $29.27 |
||
|
63111
|
63111
63111-20220 Panel, Roof[08.1985 - 08.1987] ST16#..CP,CVT W/O SUN ROOF |
63111-20220 |
US $474.66 |
||
|
63111
|
63111
63111-20230 Panel, Roof[08.1985 - 08.1987] ST16#..CP W/SUN ROOF |
63111-20230 |
US $474.66 |
||
|
63133
|
63133
63133-20120 Frame, Back Window Opening, Upper[08.1985 - 08.1987] ST16#..CP,CVT |
63133-20120 |
US $36.40 |
||
|
63142
|
63142
63142-20040 Reinforcement, Roof Panel, No.2[08.1985 - 08.1987] ST16#..CP,LB |
63142-20040 |
US $225.68 |
||
|
63218A
|
63218A
63249-20060 Hose(For Sliding Roof Or Removable Roof Drain)[08.1985 - 08.1987] ST16#..CP RR RH |
63249-20060 |
US $11.36 |
||
|
63218A
|
63218A
63249-20080 Hose(For Sliding Roof Or Removable Roof Drain)[08.1985 - 08.1987] ST16#..CP,LB FR |
63249-20080 |
US $16.45 |
||
| replacement | |||||
|
63218A
|
63218A
63249-16190 Hose(For Sliding Roof Or Removable Roof Drain)[08.1985 - 08.1987] ST16#..CP,LB FR |
63249-16190 |
US $19.66 |
||
|
63218A
|
63218A
63249-20090 Hose(For Sliding Roof Or Removable Roof Drain)[08.1985 - 08.1987] ST16#..CP RR LH |
63249-20090 |
US $23.44 |
||
|
64101
|
64101
64101-20230
Panel Sub-Assy, Upper Back
[08.1985 - 08.1987] ST16#..ST |
64101-20230 |
— | ||
|
64165B
|
64165B
64165-20030 Cover, Upper Back Panel Hole, No.1[08.1985 - 08.1987] ST16#..CP |
64165-20030 |
US $6.84 |
||
|
64166B
|
64166B
64166-20020 Cover, Upper Back Panel Hole, No.2[08.1985 - 08.1987] ST16#..CP |
64166-20020 |
US $6.84 |
||
|
64811
|
64811
64801-20110 Glass, Back Window[08.1985 - 08.1987] ST16#..CP..USA *EHTT,T=4.0,*EHTT,T=4.0 |
64801-20110 |
US $981.34 |
||
|
64811
|
64811
64801-20120 Glass, Back WindowBACK WINDOW [08.1985 - 08.1987] ST16#..CP *EHTT,T=4.0,HEAVY *DEF,*EHTT,T=4.0 |
64801-20120 |
US $981.34 |
||
|
64818
|
64818
64818-30030
Spacer, Back Window Glass
[08.1985 - 08.1987] ST16#..CP |
64818-30030 |
— | ||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.78 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
