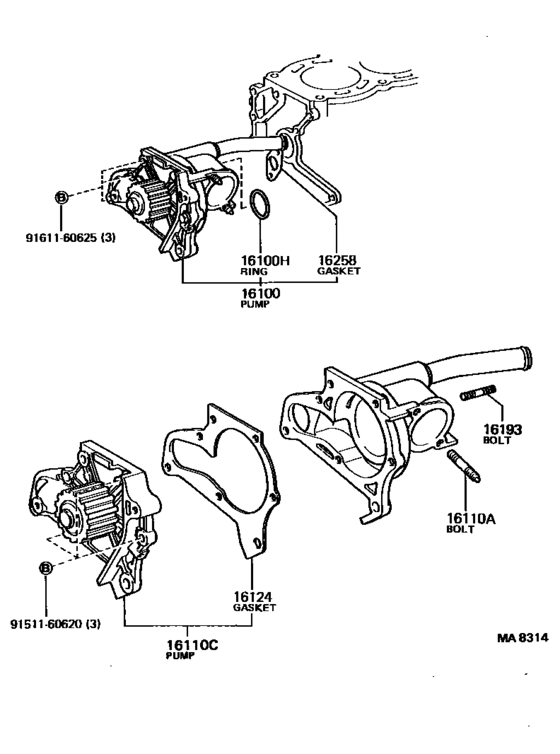

Water Pump ([08.1985 - 08.1986] (8508-8608)2SELC) Diagram Toyota CELICA
- Year
- 1985 - 1986
- Sales region
- Europe
- Frame
- ST161
- grade
- ST
- body
- CP
- ENGINE
- 2SELC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1985
- To
- 08.1986
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-69075
Pump Assy, Engine Water
[08.1985 - 08.1986] 2SELC..ST161 |
16100-69075 |
— | ||
| replacements | |||||
|
16100
|
16100
16100-69077
Pump Assy, Engine Water
[08.1985 - 08.1986] 2SELC..ST161 |
16100-69077 |
— | ||
|
16100
|
16100
90179-06045 New Genuine Part[08.1985 - 08.1986] 2SELC..ST161 |
90179-06045 |
from US $1.92 |
||
|
16100H
|
16100H
96711-24037 Ring, O(For Water Pump)[08.1985 - 08.1987] 2SELC,3S#..ST16# |
96711-24037 |
from US $3.08 |
||
|
16110A
|
16110A
16193-63010 Bolt, Stud(For Water Outlet Setting)[08.1985 - 08.1987] 2SELC,3S#..ST16# |
16193-63010 |
US $5.60 |
||
|
16110C
|
16110C
16110-69035
Pump Assy, Water, W/o Coupling
[08.1985 - 08.1986] 2SELC..ST161 |
16110-69035 |
— | ||
| replacements | |||||
|
16110C
|
16110C
16110-69037
Pump Assy, Water, W/o Coupling
[08.1985 - 08.1986] 2SELC..ST161 |
16110-69037 |
— | ||
|
16110C
|
16110C
93220-16020 SCREW[08.1985 - 08.1986] 2SELC..ST161 |
93220-16020 |
US $4.16 |
||
|
16124
|
16124
16124-63010 Gasket, Water Pump Cover[08.1985 - 08.1986] 2SELC..ST161 |
16124-63010 |
US $4.66 |
||
|
16193
|
16193
90029-01500 Bolt, Stud(For Water Pump Cover)[08.1985 - 08.1987] 2SELC,3S#..ST16# |
90029-01500 |
US $1.49 |
||
|
16258
|
16258
16258-15011 Gasket(For Heater Return)[08.1985 - 08.1987] 2SELC,3S#..ST16# |
16258-15011 |
US $8 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
9161160625
|
9161160625
91611-60625
Bolt, W/washer (For Parking Cove & Case)
|
91611-60625 |
— | ||
| replacement | |||||
|
9161160625
|
9161160625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
