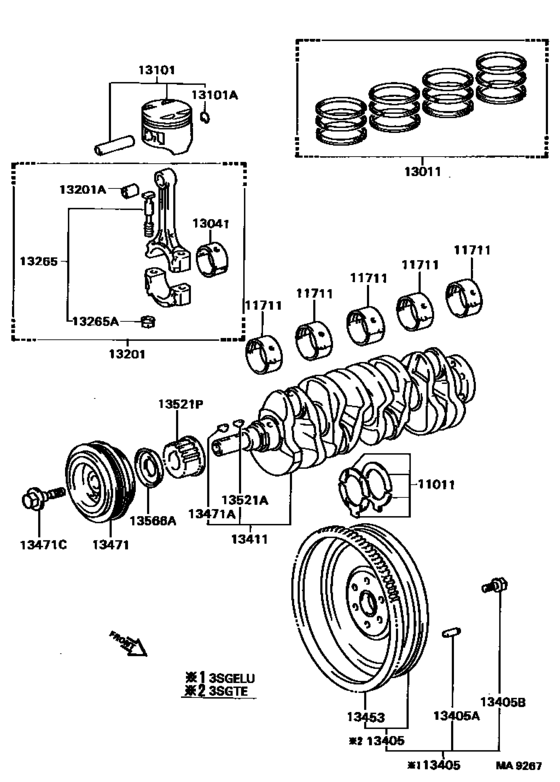

Crankshaft & Piston ([08.1985 - ] (8508- )3SG#) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[08.1985 - 08.1987] 1SILU,3SG#..ST16# ＳＴＤ |
11011-25010 |
from US $20.67 |
||
|
11711
|
11711
11071-88360-01
Bearing, Crankshaft
[08.1985 - 08.1987] 3SG#..ST162,165 NO.3 MARK"1",MARK 1 |
11071-88360-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-88570-01 Bearing, Crankshaft[08.1985 - 08.1987] 3SG#..ST162,165 NO.3 MARK"1",MARK 1 |
11071-88570-01 |
US $56.09 |
||
|
11711
|
11711
11071-88360-02
Bearing, Crankshaft
[08.1985 - 08.1987] 3SG#..ST162,165 NO.3 MARK"2",MARK 2 |
11071-88360-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-88570-02 Bearing, Crankshaft[08.1985 - 08.1987] 3SG#..ST162,165 NO.3 MARK"2",MARK 2 |
11071-88570-02 |
US $56.09 |
||
|
11711
|
11711
11071-88360-03
Bearing, Crankshaft
[08.1985 - 08.1987] 3SG#..ST162,165 NO.3 MARK"3",MARK 3 |
11071-88360-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-88570-03 Bearing, Crankshaft[08.1985 - 08.1987] 3SG#..ST162,165 NO.3 MARK"3",MARK 3 |
11071-88570-03 |
US $56.09 |
||
|
11711
|
11711
11071-88360-04
Bearing, Crankshaft
[08.1986 - 08.1987] 3SG#..ST162,165 NO.3 MARK"4",MARK 4 |
11071-88360-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-88570-04 Bearing, Crankshaft[08.1986 - 08.1987] 3SG#..ST162,165 NO.3 MARK"4",MARK 4 |
11071-88570-04 |
US $56.09 |
||
|
11711
|
11711
11071-88360-05
Bearing, Crankshaft
[08.1986 - 08.1987] 3SG#..ST162,165 NO.3 MARK"5",MARK 5 |
11071-88360-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11071-88570-05 Bearing, Crankshaft[08.1986 - 08.1987] 3SG#..ST162,165 NO.3 MARK"5",MARK 5 |
11071-88570-05 |
US $56.09 |
||
|
11711
|
11711
11701-88360-01
Bearing, Crankshaft
[08.1985 - 08.1987] 3SG#..ST162,165 NO.1,2,4,5 MARK"1",MARK 1 |
11701-88360-01 |
— | ||
|
11711
|
11711
11701-88360-02 Bearing, Crankshaft[08.1985 - 08.1987] 3SG#..ST162,165 NO.1,2,4,5 MARK"2",MARK 2 |
11701-88360-02 |
US $46.74 |
||
|
11711
|
11711
11701-88360-03 Bearing, Crankshaft[08.1985 - 08.1987] 3SG#..ST162,165 NO.1,2,4,5 MARK"3",MARK 3 |
11701-88360-03 |
US $46.74 |
||
|
11711
|
11711
11701-88360-04 Bearing, Crankshaft[08.1986 - 08.1987] 3SG#..ST162,165 NO.1,2,4,5 MARK"4",MARK 4 |
11701-88360-04 |
US $46.74 |
||
|
11711
|
11711
11701-88360-05 Bearing, Crankshaft[08.1986 - 08.1987] 3SG#..ST162,165 NO.1,2,4,5 MARK"5",MARK 5 |
11701-88360-05 |
US $46.74 |
||
|
13011
|
13011
13011-74100 Ring Set, Piston[12.1985 - 08.1987] 3SGELU..ST162 ＳＴＤ |
13011-74100 |
US $230.05 |
||
| replacement | |||||
|
13011
|
13011
13011-88363
Ring Set, Piston
[12.1985 - 08.1987] 3SGELU..ST162 ＳＴＤ |
13011-88363 |
— | ||
|
13011
|
13011
13011-88362 Ring Set, Piston[08.1985 - 12.1985] 3SGELU..ST162 |
13011-88362 |
US $228.59 |
||
| replacement | |||||
|
13011
|
13011
13011-88363
Ring Set, Piston
[08.1985 - 12.1985] 3SGELU..ST162 |
13011-88363 |
— | ||
|
13041
|
13041
13041-88360-01 Bearing, Connecting Rod[08.1985 - 08.1987] 3SG#..ST162,165 MARK"1",MARK 1 |
13041-88360-01 |
US $34.81 |
||
|
13041
|
13041
13041-88360-02 Bearing, Connecting Rod[08.1985 - 08.1987] 3SG#..ST162,165 MARK"2",MARK 2 |
13041-88360-02 |
US $34.81 |
||
|
13041
|
13041
13041-88360-03 Bearing, Connecting Rod[08.1985 - 08.1987] 3SG#..ST162,165 MARK"3",MARK 3 |
13041-88360-03 |
US $34.81 |
||
|
13101
|
13101
13101-74030
Piston Sub-Assy, W/pin
[08.1985 - 12.1986] 3SGELU..ST162 ＳＴＤ |
13101-74030 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-74032-02
Piston Sub-Assy, W/pin
[08.1985 - 12.1986] 3SGELU..ST162 ＳＴＤ |
13101-74032-02 |
— | ||
|
13101
|
13101
13101-74031
Piston Sub-Assy, W/pin
[12.1986 - 08.1987] 3SGELU..ST162 ＳＴＤ |
13101-74031 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-74032-02
Piston Sub-Assy, W/pin
[12.1986 - 08.1987] 3SGELU..ST162 ＳＴＤ |
13101-74032-02 |
— | ||
|
13101A
|
13101A
90072-52104 Ring, Hole Snap(For Piston Pin)[08.1985 - 05.1986] 3SGELU..ST162 |
90072-52104 |
US $2.04 |
||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[08.1985 - 05.1986] 3SGELU..ST162 |
90520-22025 |
from US $1.76 |
||
|
13101A
|
13101A
90521-25004
Ring, Hole Snap(For Piston Pin)
[05.1986 - 08.1987] 3SG#..ST162,165 |
90521-25004 |
— | ||
| replacement | |||||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[05.1986 - 08.1987] 3SG#..ST162,165 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-79065 Rod Sub-Assy, Connecting[08.1985 - 08.1986] 3SGELU..ST162 |
13201-79065 |
US $301.39 |
||
| replacement | |||||
|
13201
|
13201
13201-79425
Rod Sub-Assy, Connecting
[08.1985 - 08.1986] 3SGELU..ST162 |
13201-79425 |
— | ||
|
13201
|
13201
13201-79095 Rod Sub-Assy, Connecting[08.1986 - 08.1987] 3SG#..ST162,165 |
13201-79095 |
US $234.42 |
||
| replacement | |||||
|
13201
|
13201
13201-79425
Rod Sub-Assy, Connecting
[08.1986 - 08.1987] 3SG#..ST162,165 |
13201-79425 |
— | ||
|
13201A
|
13201A
90999-73106 Bush(For Connecting Rod Small End)[08.1985 - 08.1987] 3SGELU..ST162 |
90999-73106 |
US $3.64 |
||
| replacement | |||||
|
13201A
|
13201A
90999-73112 Bush(For Connecting Rod Small End)[08.1985 - 08.1987] 3SGELU..ST162 |
90999-73112 |
US $3.32 |
||
|
13265
|
13265
13265-39025 Bolt, Connecting Rod[08.1985 - 08.1987] 3SG#..ST162,165 |
13265-39025 |
US $10.31 |
||
|
13265A
|
13265A
90179-10042 Nut, Hexagon(For Connecting Rod Bolt)[08.1985 - 08.1987] 3SG#..ST162,165 |
90179-10042 |
US $2.56 |
||
|
13405
|
13405
13405-79075 Flywheel Sub-Assy[08.1985 - 08.1987] 3SGELU..ST162..5F |
13405-79075 |
US $340.70 |
||
| replacement | |||||
|
13405
|
13405
13405-74011 Flywheel Sub-Assy[08.1985 - 08.1987] 3SGELU..ST162..5F |
13405-74011 |
US $294.11 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[08.1985 - 08.1987] 1SILU,3SG#..ST16#..5F 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10071 Bolt, Flywheel Setting[08.1985 - 08.1987] 1SILU,3SG#..ST16#..5F |
90105-10071 |
US $6.08 |
||
|
13411
|
13411
13411-74900 Crankshaft[08.1985 - 08.1987] 3SG#..ST162,165 |
13411-74900 |
US $1,346.80 |
||
| replacements | |||||
|
13411
|
13411
90311-89010 Seal, Engine Rear Oil[08.1985 - 08.1987] 3SG#..ST162,165 |
90311-89010 |
from US $21.13 |
||
|
13411
|
13411
13411-74907
Crankshaft
[08.1985 - 08.1987] 3SG#..ST162,165 |
13411-74907 |
— | ||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[08.1985 - 08.1987] 1SILU,3SGELU..ST160,162..5F |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13407-88360
Pulley, Crankshaft
[08.1985 - 08.1987] 3SG#..ST162,165 |
13407-88360 |
— | ||
| replacement | |||||
|
13471
|
13471
13407-88380
Pulley, Crankshaft
[08.1985 - 08.1987] 3SG#..ST162,165 |
13407-88380 |
— | ||
|
13471A
|
13471A
95161-10519 Key(For Oil Pump Drive Spline)[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
95161-10519 |
from US $4.16 |
||
|
13471C
|
13471C
90105-14011 Bolt(For Crankshaft Pulley Set)[08.1985 - 08.1986] 3SGELU..ST162 |
90105-14011 |
US $15.72 |
||
|
13471C
|
13471C
90105-14057 Bolt(For Crankshaft Pulley Set)[08.1986 - 08.1987] 3SGELU..ST162 *53 |
90105-14057 |
US $8.15 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14011 Bolt(For Crankshaft Pulley Set)[08.1986 - 08.1987] 3SGELU..ST162 *53 |
90105-14011 |
US $15.72 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
95161-10519 |
from US $4.16 |
||
|
13521P
|
13521P
13521-88360
Pulley, Crankshaft Timing
[08.1985 - 08.1987] 3SG#..ST162,165 |
13521-88360 |
— | ||
|
13566A
|
13566A
13566-88360 Guide, Timing Belt[08.1985 - 08.1987] 3SG#..ST162,165 |
13566-88360 |
US $14.56 |
||
