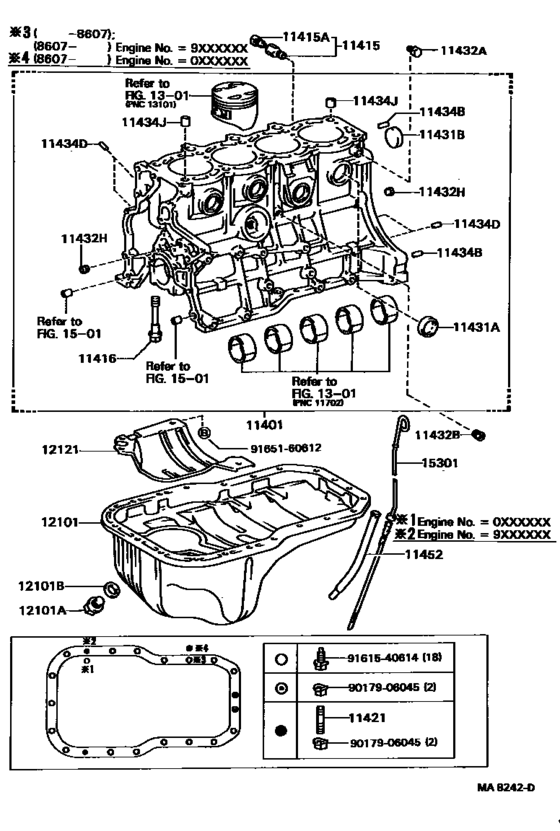

Cylinder Block ([08.1985 - ] (8508- )3SGELU) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-79185 Block Sub-Assy, Cylinder[08.1985 - 03.1986] 3SGELU..ST162 |
11401-79185 |
US $2,518.88 |
||
| replacements | |||||
|
11401
|
11401
11381-63012 Retainer, Engine Rear Oil Seal[08.1985 - 03.1986] 3SGELU..ST162 |
11381-63012 |
US $64.60 |
||
|
11401
|
11401
11401-79189 Block Sub-Assy, Cylinder[08.1985 - 03.1986] 3SGELU..ST162 |
11401-79189 |
US $2,271.36 |
||
|
11401
|
11401
15707-88362 Pipe, Oil CoolerOIL COOLER [08.1985 - 03.1986] 3SGELU..ST162 |
15707-88362 |
US $94.64 |
||
|
11401
|
11401
12101-74050 Pan Sub-Assy, Oil[08.1985 - 03.1986] 3SGELU..ST162 |
12101-74050 |
US $403.31 |
||
|
11401
|
11401
90430-12028 Gasket (For Drain Plug)[08.1985 - 03.1986] 3SGELU..ST162 |
90430-12028 |
from US $1.41 |
||
|
11401
|
11401
90341-12012 Plug(For Oil Pan Drain)[08.1985 - 03.1986] 3SGELU..ST162 |
90341-12012 |
from US $2.56 |
||
|
11401
|
11401
11401-79186 Block Sub-Assy, Cylinder[03.1986 - 07.1986] 3SGELU..ST162 |
11401-79186 |
US $2,518.88 |
||
| replacements | |||||
|
11401
|
11401
11381-63012 Retainer, Engine Rear Oil Seal[03.1986 - 07.1986] 3SGELU..ST162 |
11381-63012 |
US $64.60 |
||
|
11401
|
11401
12101-74050 Pan Sub-Assy, Oil[03.1986 - 07.1986] 3SGELU..ST162 |
12101-74050 |
US $403.31 |
||
|
11401
|
11401
90430-12028 Gasket (For Drain Plug)[03.1986 - 07.1986] 3SGELU..ST162 |
90430-12028 |
from US $1.41 |
||
|
11401
|
11401
15707-88362 Pipe, Oil CoolerOIL COOLER [03.1986 - 07.1986] 3SGELU..ST162 |
15707-88362 |
US $94.64 |
||
|
11401
|
11401
90341-12012 Plug(For Oil Pan Drain)[03.1986 - 07.1986] 3SGELU..ST162 |
90341-12012 |
from US $2.56 |
||
|
11401
|
11401
11401-79189 Block Sub-Assy, Cylinder[03.1986 - 07.1986] 3SGELU..ST162 |
11401-79189 |
US $2,271.36 |
||
|
11401
|
11401
11401-79187 Block Sub-Assy, Cylinder[07.1986 - 08.1987] 3SGELU..ST162 |
11401-79187 |
US $2,649.92 |
||
| replacements | |||||
|
11401
|
11401
11401-79189 Block Sub-Assy, Cylinder[07.1986 - 08.1987] 3SGELU..ST162 |
11401-79189 |
US $2,271.36 |
||
|
11401
|
11401
15707-88362 Pipe, Oil CoolerOIL COOLER [07.1986 - 08.1987] 3SGELU..ST162 |
15707-88362 |
US $94.64 |
||
|
11415
|
11415
90910-09076 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1985 - 08.1987] 1SILU..ST160; 3SGELU..ST162 *53 |
90910-09076 |
US $12.52 |
||
| replacement | |||||
|
11415
|
11415
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1985 - 08.1987] 1SILU..ST160; 3SGELU..ST162 *53 |
90345-52001 |
from US $3.68 |
||
|
11415
|
11415
90910-09091 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1985 - 08.1987] 3SGELU..ST162 *54 |
90910-09091 |
US $9.03 |
||
|
11415A
|
11415A
90109-14003 Plug, Water Drain Cock(For Cylinder Block)[08.1985 - 08.1987] 1SILU..ST160; 3SGELU..ST162 *53 |
90109-14003 |
US $6.26 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.1985 - 08.1987] 4AGELU..AT160; 3SGTE..ST165; 3SGELU..ST162 *54 |
90910-09087 |
from US $3.68 |
||
|
11416
|
11416
90105-10028 Bolt(For Crankshaft Bearing Cap Set)[08.1985 - 08.1987] 1SILU,3SG#..ST16# *10-1.25PX67-18 |
90105-10028 |
US $3.84 |
||
|
11421
|
11421
90116-06014 Bolt, Stud(For Oil Pan)[08.1985 - 08.1987] 3SGELU..ST162 *54 |
90116-06014 |
US $1.05 |
||
|
11421
|
11421
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[08.1985 - 08.1987] 1SILU..ST160; 3SGELU..ST162 *53 |
90116-06022 |
from US $1.95 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[08.1985 - 08.1987] 4AGELU..AT160 OD=35; 1SILU,3SG#..ST16# OD=35 |
96411-43500 |
from US $3.86 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[08.1985 - 08.1987] 4AGELU..AT160 OD=40; 1SILU,3SG#..ST16# OD=40 |
96411-44000 |
from US $4.19 |
||
|
11432A
|
11432A
90345-51006 Plug, W/head Taper Screw, No.2[08.1985 - 08.1987] 3SG#..ST162,165 |
90345-51006 |
from US $0.96 |
||
|
11432B
|
11432B
90344-52003 Plug, W/head Taper Screw, No.1[08.1985 - 08.1987] 3SGELU..ST162 *53 |
90344-52003 |
US $1.40 |
||
|
11432B
|
11432B
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1985 - 08.1987] 3SGELU..ST162 *54 |
90345-52001 |
from US $3.68 |
||
|
11432H
|
11432H
90344-53008 Plug, W/head Taper Screw, No.2[08.1985 - 08.1987] 1SILU..ST160 NO.1; 3SGELU..ST162 *53 |
90344-53008 |
US $1.76 |
||
|
11432H
|
11432H
90344-53015 Plug, W/head Taper Screw, No.1[08.1985 - 08.1987] 3SGELU..ST162 *54 |
90344-53015 |
US $4.80 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1985 - 08.1987] 4AGELU..AT160 長さ＝２２，外径＝１０; 1SILU,3SG#..ST16# 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.03 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[08.1985 - 08.1987] 4AGELU..AT160 長さ＝１４，外径＝６; 1SILU,3SG#..ST16# 長さ＝１４，外径＝６ |
90250-06003 |
US $1.44 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
90253-13017 |
from US $1.40 |
||
|
11452
|
11452
11452-88360
Guide, Oil Level Gage
[08.1985 - 08.1987] 3SGELU..ST162 |
11452-88360 |
— | ||
|
12101
|
12101
12101-74020 Pan Sub-Assy, Oil[08.1985 - 07.1986] 3SGELU..ST162 |
12101-74020 |
US $406.22 |
||
| replacements | |||||
|
12101
|
12101
12101-74050 Pan Sub-Assy, Oil[08.1985 - 07.1986] 3SGELU..ST162 |
12101-74050 |
US $403.31 |
||
|
12101
|
12101
90430-12028 Gasket (For Drain Plug)[08.1985 - 07.1986] 3SGELU..ST162 |
90430-12028 |
from US $1.41 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[08.1985 - 07.1986] 3SGELU..ST162 |
90341-12012 |
from US $2.56 |
||
|
12101
|
12101
12101-74021 Pan Sub-Assy, Oil[07.1986 - 08.1987] 3SGELU..ST162 |
12101-74021 |
US $451.36 |
||
| replacements | |||||
|
12101
|
12101
12101-74050 Pan Sub-Assy, Oil[07.1986 - 08.1987] 3SGELU..ST162 |
12101-74050 |
US $403.31 |
||
|
12101
|
12101
90430-12028 Gasket (For Drain Plug)[07.1986 - 08.1987] 3SGELU..ST162 |
90430-12028 |
from US $1.41 |
||
|
12101
|
12101
90341-12012 Plug(For Oil Pan Drain)[07.1986 - 08.1987] 3SGELU..ST162 |
90341-12012 |
from US $2.56 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
90033-41020 |
from US $2.69 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
90430-18023 |
from US $1.07 |
||
|
12121
|
12121
12123-88360
Plate, Oil Pan Baffle, No.1
[08.1985 - 08.1987] 3SG#..ST162,165 |
12123-88360 |
— | ||
|
15301
|
15301
15301-88361
Gage Sub-Assy, Oil Level
[08.1985 - 07.1986] 3SGELU..ST162 |
15301-88361 |
— | ||
| replacement | |||||
|
15301
|
15301
15301-88362
Gage Sub-Assy, Oil Level
[08.1985 - 07.1986] 3SGELU..ST162 |
15301-88362 |
— | ||
|
15301
|
15301
15301-88362
Gage Sub-Assy, Oil Level
[07.1986 - 08.1987] 3SGELU..ST162 |
15301-88362 |
— | ||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9161540614
|
9161540614
91615-40614 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40614 |
US $1.89 |
||
| replacement | |||||
|
9161540614
|
9161540614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
