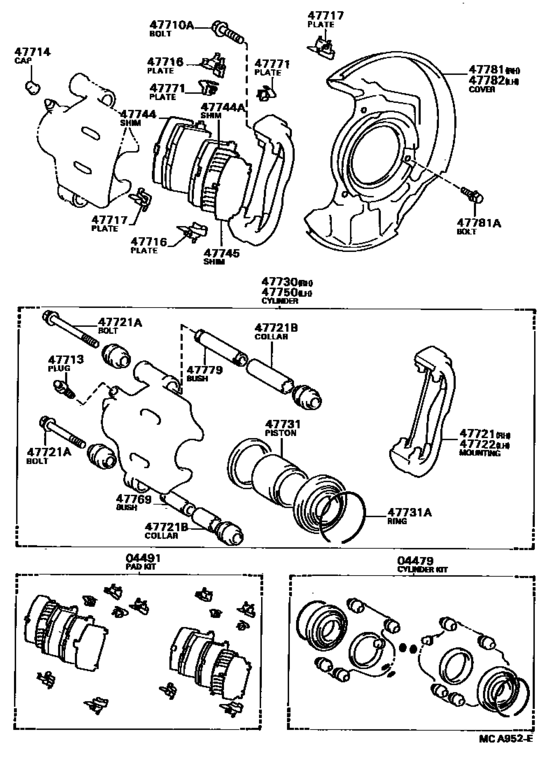

Front Disc Brake Caliper & Dust Cover ([08.1985 - ] (8508- )) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-20080
Cylinder Kit, Disc Brake, Front
[08.1985 - 08.1987] AT160,ST162 |
04479-20080 |
— | ||
|
04491
|
04491
04491-20201 Pad Kit, Disc Brake, Front[08.1985 - 12.1986] AT160,ST162 |
04491-20201 |
US $152.88 |
||
| replacement | |||||
|
04491
|
04491
04465-17021 Pad Kit, Disc Brake, Front[08.1985 - 12.1986] AT160,ST162 |
04465-17021 |
US $136.86 |
||
|
04491
|
04491
04491-20202 Pad Kit, Disc Brake, Front[12.1986 - 08.1987] AT160,ST162 |
04491-20202 |
US $151.42 |
||
| replacement | |||||
|
04491
|
04491
04465-17021 Pad Kit, Disc Brake, Front[12.1986 - 08.1987] AT160,ST162 |
04465-17021 |
US $136.86 |
||
|
47710A
|
47710A
90119-12040 Bolt, Hexagon(For Front Disc Brake Caliper)[08.1985 - 08.1987] AT160,ST16# ＊１２−１．２５ＰＸ２５．８−１９．５ |
90119-12040 |
from US $3.68 |
||
|
47713
|
47713
47547-12040 Plug, Bleeder(For Front Disc Brake)[08.1985 - 08.1987] AT160,ST162 |
47547-12040 |
US $4.80 |
||
|
47714
|
47714
31478-30010 Bleeder Plug Cap[08.1985 - 08.1987] AT160,ST16# |
31478-30010 |
from US $1.66 |
||
|
47716
|
47716
47716-32010 Plate, Pad Support, No.1(For Front Disc Brake)[08.1985 - 08.1987] AT160,ST162 |
47716-32010 |
US $8.01 |
||
| replacement | |||||
|
47716
|
47716
47716-32031 Plate, Pad Support, No.1(For Front Disc Brake)[08.1985 - 08.1987] AT160,ST162 |
47716-32031 |
from US $6.06 |
||
|
47717
|
47717
47717-32010 Plate, Pad Support, No.2(For Front Disc Brake)[08.1985 - 08.1987] AT160,ST162 |
47717-32010 |
US $8.01 |
||
| replacement | |||||
|
47717
|
47717
47717-32031 Plate, Pad Support, No.2(For Front Disc Brake)[08.1985 - 08.1987] AT160,ST162 |
47717-32031 |
US $6.24 |
||
|
47721
|
47721
47721-20120 Mounting, Front Disc Brake Cylinder, Rh[08.1985 - 08.1987] AT160,ST162 |
47721-20120 |
US $96.10 |
||
|
47721A
|
47721A
90119-09007 Bolt(For Front Disc Brake Cylinder Slide)[08.1985 - 08.1987] AT160,ST162 ＊９−１．２５ＰＸ７３−２５,*9-1.25PX73-25 |
90119-09007 |
from US $1.93 |
||
|
47721A
|
47721A
90119-09008 Bolt(For Front Disc Brake Cylinder Slide)[08.1985 - 08.1987] AT160,ST162 ＊９−１．２５ＰＸ９３−２５,*9-1.25PX93-25 |
90119-09008 |
from US $2.20 |
||
|
47722
|
47722
47721-20120 Mounting, Front Disc Brake Cylinder, Rh[08.1985 - 08.1987] AT160,ST162 |
47721-20120 |
US $96.10 |
||
|
47730
|
47730
47730-20220 Cylinder Assy, Front Disc Brake, Rh[08.1985 - 08.1987] AT160,ST162 |
47730-20220 |
US $623.17 |
||
|
47731
|
47731
47731-20100 Piston, Front Disc Brake[08.1985 - 08.1987] AT160,ST162 |
47731-20100 |
US $39.46 |
||
|
47731A
|
47731A
90522-64003 Ring, Set(For Front Disc Brake Piston)[08.1985 - 08.1987] AT160,ST160,162 |
90522-64003 |
US $2.18 |
||
|
47744
|
47744
47744-20060 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1985 - 08.1987] AT160,ST162 |
47744-20060 |
US $3.49 |
||
| replacement | |||||
|
47744
|
47744
47744-32010 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1985 - 08.1987] AT160,ST162 |
47744-32010 |
US $4.48 |
||
|
47744A
|
47744A
47742-17010 Shim, Anti-Squeal, No.1(For Front Disc Brake)[12.1986 - 08.1987] AT160,ST162 |
47742-17010 |
US $3.49 |
||
|
47745
|
47745
47744-20060 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1985 - 12.1986] AT160,ST162 |
47744-20060 |
US $3.49 |
||
| replacement | |||||
|
47745
|
47745
47744-32010 Shim, Anti-Squeal, No.1(For Front Disc Brake)[08.1985 - 12.1986] AT160,ST162 |
47744-32010 |
US $4.48 |
||
|
47745
|
47745
47745-17020 Shim, Anti-Squeal, No.1(For Front Disc Brake)[12.1986 - 08.1987] AT160,ST162 |
47745-17020 |
US $3.49 |
||
|
47750
|
47750
47750-20210 Cylinder Assy, Disc Brake, Lh[08.1985 - 08.1987] AT160,ST162 |
47750-20210 |
US $623.17 |
||
|
47769
|
47769
47769-32010
Bush, Cylinder Slide, No.1(For Front Disc Brake)
[08.1985 - 08.1987] AT160,ST162 |
47769-32010 |
— | ||
|
47771
|
47771
47771-32010 Plate, Pad Wear Indicator, No.1[08.1985 - 08.1987] AT160,ST162,165 |
47771-32010 |
US $4 |
||
|
47779
|
47779
47779-32010
Bush, Cylinder Slide, No.2(For Front Disc Brake)
[08.1985 - 08.1987] AT160,ST162 |
47779-32010 |
— | ||
|
47781
|
47781
47781-20150
Cover, Disc Brake Dust, Front Rh
[08.1985 - 08.1987] AT160,ST162 |
47781-20150 |
— | ||
|
47781A
|
47781A
90119-06227 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[08.1985 - 08.1987] AT160,ST16# |
90119-06227 |
from US $0.72 |
||
|
47782
|
47782
47782-20150
Cover, Disc Brake Dust, Front Lh
[08.1985 - 08.1987] AT160,ST162 |
47782-20150 |
— | ||
