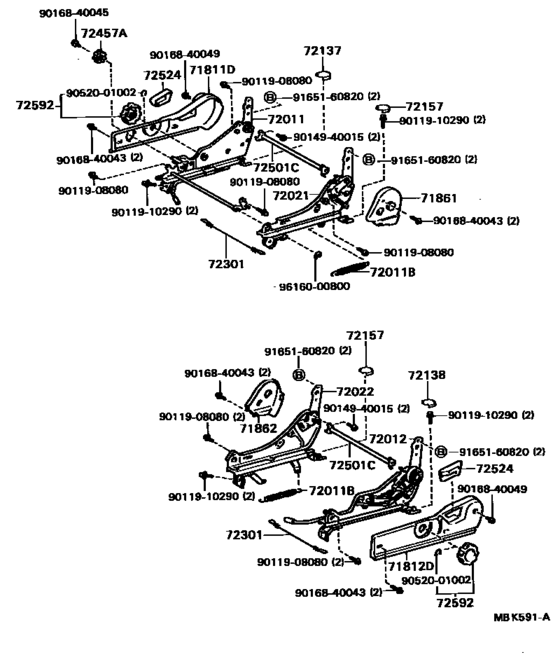

Front Seat & Seat Track ([08.1985 - ] (8508- )AT160,ST162,165) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-20120-03 Shield, Front Seat Cushion, Rh[08.1985 - 08.1987] AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
71811-20120-03 |
US $48.63 |
||
| replacement | |||||
|
71811D
|
71811D
71811-20120-13 Shield, Front Seat Cushion, Rh[08.1985 - 08.1987] AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
71811-20120-13 |
US $48.63 |
||
|
71811D
|
71811D
71811-20120-04 Shield, Front Seat Cushion, Rh[08.1985 - 08.1987] AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
71811-20120-04 |
US $48.63 |
||
|
71812D
|
71812D
71812-20070-03 Shield, Front Seat Cushion, Lh[08.1985 - 08.1987] AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
71812-20070-03 |
US $48.63 |
||
| replacement | |||||
|
71812D
|
71812D
71812-20070-01 Shield, Front Seat Cushion, Lh[08.1985 - 08.1987] AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
71812-20070-01 |
US $48.48 |
||
|
71812D
|
71812D
71812-20070-04 Shield, Front Seat Cushion, Lh[08.1985 - 08.1987] AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
71812-20070-04 |
US $48.63 |
||
| replacement | |||||
|
71812D
|
71812D
71812-20070-01 Shield, Front Seat Cushion, Lh[08.1985 - 08.1987] AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
71812-20070-01 |
US $48.48 |
||
|
71861
|
71861
71861-20030-03
Shield, Front Seat Cushion, Inner Rh
[08.1985 - 08.1987] AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
71861-20030-03 |
— | ||
|
71861
|
71861
71861-20030-04 Shield, Front Seat Cushion, Inner Rh[08.1985 - 08.1987] AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
71861-20030-04 |
US $24.61 |
||
|
71862
|
71862
71862-20030-03
Shield, Front Seat Cushion, Inner Lh
[08.1985 - 08.1987] AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
71862-20030-03 |
— | ||
|
71862
|
71862
71862-20030-04 Shield, Front Seat Cushion, Inner Lh[08.1985 - 08.1987] AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
71862-20030-04 |
US $24.61 |
||
|
72011
|
72011
72011-20010 Adjuster Sub-Assy, Front Seat, Outer Rh[08.1985 - 08.1987] AT160,ST162 |
72011-20010 |
US $432.43 |
||
| replacement | |||||
|
72011
|
72011
72011-20011 Adjuster Sub-Assy, Front Seat, Outer Rh[08.1985 - 08.1987] AT160,ST162 |
72011-20011 |
US $490.67 |
||
|
72011B
|
72011B
90507-18014 Spring, Tension (For Front Seat Adjuster Outer)[08.1985 - 08.1987] AT160,ST162,165 |
90507-18014 |
US $5.53 |
||
|
72012
|
72012
72012-20020 Adjuster Sub-Assy, Front Seat, Outer Lh[08.1985 - 08.1987] AT160,ST162 |
72012-20020 |
US $355.26 |
||
| replacement | |||||
|
72012
|
72012
72012-20021 Adjuster Sub-Assy, Front Seat, Outer Lh[08.1985 - 08.1987] AT160,ST162 |
72012-20021 |
US $355.26 |
||
|
72021
|
72021
72021-20010 Adjuster Sub-Assy, Front Seat, Inner Rh[08.1985 - 08.1987] AT160,ST162 |
72021-20010 |
US $326.14 |
||
| replacement | |||||
|
72021
|
72021
72021-20011 Adjuster Sub-Assy, Front Seat, Inner Rh[08.1985 - 08.1987] AT160,ST162 |
72021-20011 |
US $256.26 |
||
|
72022
|
72022
72022-20010 Adjuster Sub-Assy, Front Seat, Inner Lh[08.1985 - 08.1987] AT160,ST162 |
72022-20010 |
US $326.14 |
||
| replacement | |||||
|
72022
|
72022
72022-20011 Adjuster Sub-Assy, Front Seat, Inner Lh[08.1985 - 08.1987] AT160,ST162 |
72022-20011 |
US $282.46 |
||
|
72137
|
72137
72137-20030
Cover, Seat Track, Outer Rh
[08.1985 - 08.1987] AT160,ST16# |
72137-20030 |
— | ||
|
72138
|
72138
72138-20020
Cover, Seat Track, Outer Lh
[08.1985 - 08.1987] AT160,ST16# |
72138-20020 |
— | ||
|
72157
|
72157
72137-20030
Cover, Seat Track, Outer Rh
[08.1985 - 08.1987] AT160,ST160,162 LH |
72137-20030 |
— | ||
|
72157
|
72157
72138-20020
Cover, Seat Track, Outer Lh
[08.1985 - 08.1987] AT160,ST160,162 RH |
72138-20020 |
— | ||
|
72301
|
72301
72301-20190 Wire Sub-Assy, Seat Track Equalizing[08.1985 - 08.1987] AT160,ST160,162 |
72301-20190 |
US $4.08 |
||
|
72457A
|
72457A
72457-17010-03 Knob, Seat Adjuster[08.1985 - 08.1987] AT160,ST16# RH,GRAY,SHADOW GRAY,TRIM1# |
72457-17010-03 |
US $16.02 |
||
| replacement | |||||
|
72457A
|
72457A
72457-17010-11
Knob, Seat Adjuster
[08.1985 - 08.1987] AT160,ST16# RH,GRAY,SHADOW GRAY,TRIM1# |
72457-17010-11 |
— | ||
|
72457A
|
72457A
72457-17010-04 Knob, Seat Adjuster[08.1985 - 08.1987] AT160,ST160,162 RH,BLUE,DEEP BLUE,TRIM8# |
72457-17010-04 |
US $16.02 |
||
| replacement | |||||
|
72457A
|
72457A
72457-17010-11
Knob, Seat Adjuster
[08.1985 - 08.1987] AT160,ST160,162 RH,BLUE,DEEP BLUE,TRIM8# |
72457-17010-11 |
— | ||
|
72501C
|
72501C
72501-20010 Pipe Sub-Assy, Reclining Connecting[08.1985 - 08.1987] AT160,ST162,165 |
72501-20010 |
US $45.72 |
||
|
72524
|
72524
72525-20060-03 Handle, Reclining Adjuster Release[08.1985 - 08.1987] AT160,ST162,165 RH,GRAY,SHADOW GRAY,TRIM1# |
72525-20060-03 |
US $13.54 |
||
| replacement | |||||
|
72524
|
72524
72525-20060-01 Handle, Reclining Adjuster Release[08.1985 - 08.1987] AT160,ST162,165 RH,GRAY,SHADOW GRAY,TRIM1# |
72525-20060-01 |
US $13.54 |
||
|
72524
|
72524
72525-20060-04 Handle, Reclining Adjuster Release[08.1985 - 08.1987] AT160,ST162 RH,BLUE,DEEP BLUE,TRIM8# |
72525-20060-04 |
US $13.54 |
||
| replacement | |||||
|
72524
|
72524
72525-20060-01 Handle, Reclining Adjuster Release[08.1985 - 08.1987] AT160,ST162 RH,BLUE,DEEP BLUE,TRIM8# |
72525-20060-01 |
US $13.54 |
||
|
72524
|
72524
72526-20050-03 Handle, Reclining Adjuster Release[08.1985 - 08.1987] AT160,ST162,165 LH,GRAY,SHADOW GRAY,TRIM1# |
72526-20050-03 |
US $13.40 |
||
| replacement | |||||
|
72524
|
72524
72526-20050-01 Handle, Reclining Adjuster Release[08.1985 - 08.1987] AT160,ST162,165 LH,GRAY,SHADOW GRAY,TRIM1# |
72526-20050-01 |
US $13.40 |
||
|
72524
|
72524
72526-20050-04 Handle, Reclining Adjuster Release[08.1985 - 08.1987] AT160,ST162 LH,BLUE,DEEP BLUE,TRIM8# |
72526-20050-04 |
US $13.40 |
||
| replacement | |||||
|
72524
|
72524
72526-20050-01 Handle, Reclining Adjuster Release[08.1985 - 08.1987] AT160,ST162 LH,BLUE,DEEP BLUE,TRIM8# |
72526-20050-01 |
US $13.40 |
||
|
72592
|
72592
72592-20010-03 Knob, Reclining Adjuster[08.1985 - 08.1987] AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
72592-20010-03 |
US $29.27 |
||
| replacement | |||||
|
72592
|
72592
72592-20010-01 Knob, Reclining Adjuster[08.1985 - 08.1987] AT160,ST162,165 GRAY,SHADOW GRAY,TRIM1# |
72592-20010-01 |
US $29.27 |
||
|
72592
|
72592
72592-20010-04 Knob, Reclining Adjuster[08.1985 - 08.1987] AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
72592-20010-04 |
US $29.27 |
||
| replacement | |||||
|
72592
|
72592
72592-20010-01 Knob, Reclining Adjuster[08.1985 - 08.1987] AT160,ST162 BLUE,DEEP BLUE,TRIM8# |
72592-20010-01 |
US $29.27 |
||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.44 |
||
|
9011910290
|
9011910290
90119-10290 New Genuine Part |
90119-10290 |
US $3.06 |
||
| replacement | |||||
|
9011910290
|
9011910290
91651-G1028 New Genuine Part |
91651-G1028 |
US $2.62 |
||
|
9014940015
|
9014940015
90149-40015 New Genuine Part |
90149-40015 |
US $0.87 |
||
|
9016840043
|
9016840043
90168-40043 SCREW |
90168-40043 |
from US $0.80 |
||
|
9016840045
|
9016840045
90168-40045
New Genuine Part
|
90168-40045 |
— | ||
|
9016840049
|
9016840049
90168-40049 SCREW |
90168-40049 |
from US $0.68 |
||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $1.01 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
