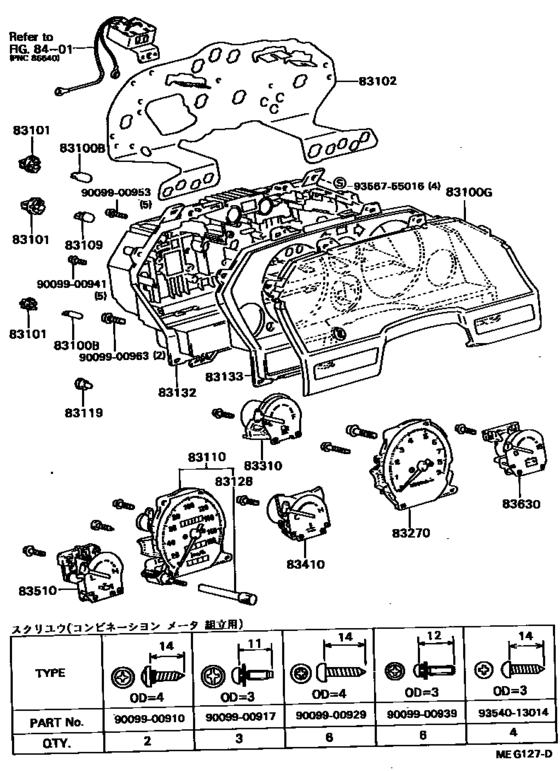

Meter ([08.1985 - ] (8508- )) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1985 - 08.1987] AT160,ST16# １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
90981-11038 Bulb (12V, 5W)[08.1985 - 08.1987] ST160,162..GT,SX １２Ｖ ５Ｗ,12V 5W,W/*DS |
90981-11038 |
from US $1.30 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1985 - 08.1987] AT160,ST16# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1985 - 08.1987] AT160,ST16# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-1B010
Glass, Combination Meter
[08.1985 - 08.1987] ST160,162..GT,SX W/*DS |
83138-1B010 |
— | ||
|
83100G
|
83100G
83138-1B130
Glass, Combination Meter
[08.1985 - 08.1987] AT160,ST16# |
83138-1B130 |
— | ||
|
83101
|
83101
83101-12020
Socket Sub-Assy, Combination Meter Bulb
[08.1985 - 08.1987] ST160,162..GT,SX BULB;12V 3.4W,W/*DS |
83101-12020 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1985 - 08.1987] AT160,ST16# BULB;12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1985 - 08.1987] AT160,ST16# BULB;12V 1.4W |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-20090 Socket Sub-Assy, Combination Meter Bulb[08.1985 - 08.1987] ST160,162..GT,SX BULB; 12V 5W,W/*DS |
83101-20090 |
US $4.08 |
||
|
83102
|
83102
83247-1D770
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1985 - 08.1987] ST160,162..GT,SX W/*DS |
83247-1D770 |
— | ||
|
83102
|
83102
83247-1J030
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1985 - 08.1987] AT160,ST162..5F |
83247-1J030 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-1J050
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1985 - 08.1987] AT160,ST162..5F |
83247-1J050 |
— | ||
|
83109
|
83109
83109-24030 Bulb, Combination Meter, No.1[08.1985 - 08.1987] AT160,ST16# １２Ｖ ３．４Ｗ グリーン キャップ付き,12V 3.4W,W/GREEN CAP |
83109-24030 |
from US $3.14 |
||
|
83109
|
83109
83109-24040 Bulb, Combination Meter, No.1[08.1985 - 08.1987] ST160,162..GT,SX １２Ｖ １．４Ｗ グリーン キャップ付き,12V 1.4W,W/GREEN CAP |
83109-24040 |
US $2.36 |
||
|
83110
|
83110
83110-2B400 Speedometer Assy[08.1985 - 08.1987] AT160,ST16#..GT,GT4,SX |
83110-2B400 |
US $467.38 |
||
|
83128
|
83128
83128-14650
Knob, Trip Counter
[08.1985 - 08.1987] AT160,ST16# |
83128-14650 |
— | ||
|
83132
|
83132
83132-1D830
Case, Combination Meter
[08.1985 - 08.1987] ST162;ST160..5F..SX W/*DS |
83132-1D830 |
— | ||
|
83132
|
83132
83132-1J050
Case, Combination Meter
[08.1985 - 08.1987] AT160,ST162..5F |
83132-1J050 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-1J070
Case, Combination Meter
[08.1985 - 08.1987] AT160,ST162..5F |
83132-1J070 |
— | ||
|
83133
|
83133
83133-1B290
Plate, Combination Meter, No.1
[08.1985 - 08.1987] ST160,162..GT,SX W/*DS |
83133-1B290 |
— | ||
|
83133
|
83133
83133-1B470
Plate, Combination Meter, No.1
[08.1985 - 08.1987] AT160,ST16# |
83133-1B470 |
— | ||
|
83270
|
83270
83242-1B070 Tachometer Assy, Engine[08.1985 - 08.1987] ST162..5F |
83242-1B070 |
US $487.76 |
||
|
83310
|
83310
83243-14710 Gage Assy, Fuel Receiver[08.1985 - 08.1987] AT160,ST16# |
83243-14710 |
US $58.68 |
||
|
83410
|
83410
83244-1B110 Gage Assy, Water Temperature Receiver[08.1985 - 08.1987] AT160,ST16# |
83244-1B110 |
US $58.68 |
||
|
83510
|
83510
83246-14650
Gauge, Oil Pressure Receiver
[08.1985 - 08.1987] AT160,ST16#..GT,GT4,SX |
83246-14650 |
— | ||
|
83630
|
83630
83251-14630 Meter, Voltage[08.1985 - 08.1987] AT160,ST160,162..GT,SX |
83251-14630 |
US $115.02 |
||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9009900941
|
9009900941
90099-00941
New Genuine Part
|
90099-00941 |
— | ||
|
9009900953
|
9009900953
90099-00953
New Genuine Part
|
90099-00953 |
— | ||
|
9009900963
|
9009900963
90099-00963
New Genuine Part
|
90099-00963 |
— | ||
|
9354013014
|
9354013014
93540-13014 New Genuine Part |
93540-13014 |
US $1.75 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
