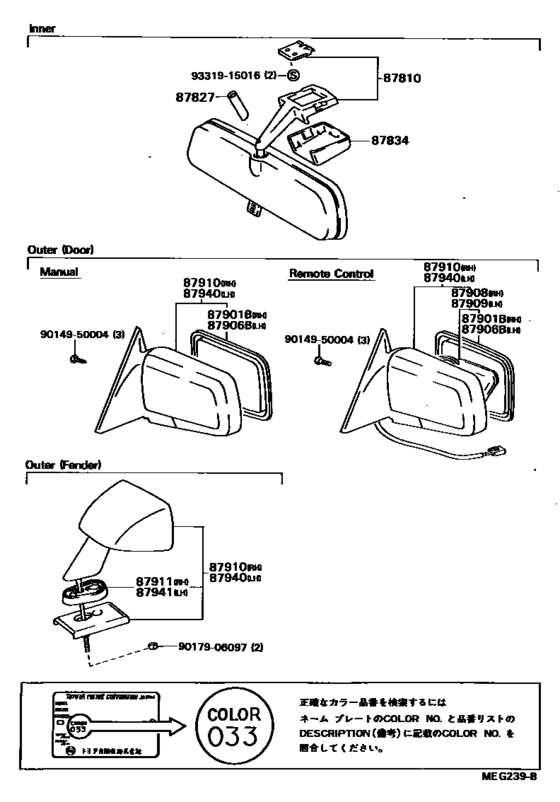

Mirror ([08.1985 - ] (8508- )) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-20200-03
Mirror Assy, Inner Rear View
[08.1985 - 08.1987] AT160,ST16# GRAY,GRAY,TRIM1# |
87810-20200-03 |
— | ||
| replacement | |||||
|
87810
|
87810
87810-12221-B1 Mirror Assy, Inner Rear View[08.1985 - 08.1987] AT160,ST16# GRAY,GRAY,TRIM1# |
87810-12221-B1 |
US $121.36 |
||
|
87810
|
87810
87810-20200-04
Mirror Assy, Inner Rear View
[08.1985 - 08.1987] AT160,ST160,162 BLUE,BLUE,TRIM8# |
87810-20200-04 |
— | ||
| replacement | |||||
|
87810
|
87810
87810-12221-B1 Mirror Assy, Inner Rear View[08.1985 - 08.1987] AT160,ST160,162 BLUE,BLUE,TRIM8# |
87810-12221-B1 |
US $121.36 |
||
|
87827
|
87827
87828-22020
Absorber, Inner Rear View Mirror
[08.1985 - 08.1987] AT160,ST16# L=34.5 |
87828-22020 |
— | ||
|
87827
|
87827
87828-87002
Absorber, Inner Rear View Mirror
[04.1987 - 08.1987] AT160,ST16# L=32 |
87828-87002 |
— | ||
|
87834
|
87834
87834-20080-34 Cover, Inner Rear View Mirror Stay Holder[08.1985 - 08.1987] AT160,ST160,162 BLUE,DEEP BLUE,TRIM8# |
87834-20080-34 |
US $3.49 |
||
|
87834
|
87834
87834-20080-53
Cover, Inner Rear View Mirror Stay Holder
[08.1985 - 08.1987] AT160,ST16# GRAY,SHADOW GRAY,TRIM1# |
87834-20080-53 |
— | ||
| replacement | |||||
|
87834
|
87834
87834-20080-S3
Cover, Inner Rear View Mirror Stay Holder
[08.1985 - 08.1987] AT160,ST16# GRAY,SHADOW GRAY,TRIM1# |
87834-20080-S3 |
— | ||
|
87901B
|
87901B
87931-20400 Mirror Sub-Assy, Outer Rear View, Rh[08.1985 - 08.1987] AT160,ST16#..GT,GT4,ST,SX |
87931-20400 |
US $29.70 |
||
|
87906B
|
87906B
87961-20420 Mirror Sub-Assy, Outer Rear View, Lh[11.1985 - 08.1987] AT160,ST16#..GT,GT4,ST,SX |
87961-20420 |
US $24.46 |
||
|
87906B
|
87906B
87961-20580
Mirror Sub-Assy, Outer Rear View, Lh
[08.1985 - 11.1985] AT160,ST16#..GT,ST,SX |
87961-20580 |
— | ||
|
87908
|
87908
87908-20400 Actuator Assy, Outer Mirror, Rh[08.1985 - 08.1987] AT160,ST16#..GT,GT4,ST,SX |
87908-20400 |
US $99.01 |
||
|
87909
|
87909
87909-20420 Actuator Assy, Outer Mirror, Lh[08.1985 - 08.1987] AT160,ST16#..GT,GT4,ST,SX |
87909-20420 |
US $99.01 |
||
|
87910
|
87910
87910-20400 Mirror Assy, Outer Rear View, Rh[08.1985 - 05.1986] AT160,ST16#..GT,ST,SX DOOR |
87910-20400 |
US $272.27 |
||
| replacement | |||||
|
87910
|
87910
87910-20401 Mirror Assy, Outer Rear View, Rh[08.1985 - 05.1986] AT160,ST16#..GT,ST,SX DOOR |
87910-20401 |
US $273.73 |
||
|
87910
|
87910
87910-20401 Mirror Assy, Outer Rear View, Rh[06.1986 - 08.1987] AT160,ST16#..GT,GT4,ST,SX DOOR,BLACK(162,3E3,8D7) |
87910-20401 |
US $273.73 |
||
|
87910
|
87910
87910-20710 Mirror Assy, Outer Rear View, Rh[08.1985 - 08.1987] AT160,ST16# FENDER |
87910-20710 |
US $81.54 |
||
|
87910
|
87910
87910-20790-02 Mirror Assy, Outer Rear View, Rh[05.1986 - 08.1987] AT160,ST160,162..GT,ST,SX DOOR,SUPER RED,SUPER RED,3E5 |
87910-20790-02 |
US $283.92 |
||
|
87910
|
87910
87910-20790-08 Mirror Assy, Outer Rear View, Rh[05.1986 - 08.1987] AT160,ST160,162..GT,ST,SX DOOR,SUPER WHITE,SUPER WHITE,040 |
87910-20790-08 |
US $283.92 |
||
|
87910
|
87910
87910-20790-33 Mirror Assy, Outer Rear View, Rh[05.1986 - 08.1987] AT160,ST160,162..GT,ST,SX DOOR,BLUISH GRAY-M,BLUISH GRAY METALLIC,2Z3 |
87910-20790-33 |
US $283.92 |
||
|
87911
|
87911
87911-20140 Gasket, Outer Rear View Mirror, Rh[08.1985 - 08.1987] AT160,ST16# |
87911-20140 |
US $6.84 |
||
|
87940
|
87940
87940-20420 Mirror Assy, Outer Rear View, Lh[08.1985 - 05.1986] AT160,ST16#..GT,ST,SX DOOR |
87940-20420 |
US $273.73 |
||
|
87940
|
87940
87940-20770 Mirror Assy, Outer Rear View, Lh[08.1985 - 08.1987] AT160,ST16# FENDER |
87940-20770 |
US $81.54 |
||
|
87940
|
87940
87940-20850-02 Mirror Assy, Outer Rear View, Lh[05.1986 - 08.1987] AT160,ST160,162..GT,ST,SX DOOR,SUPER RED,SUPER RED,3E5 |
87940-20850-02 |
US $283.92 |
||
|
87940
|
87940
87940-20850-08 Mirror Assy, Outer Rear View, Lh[05.1986 - 08.1987] AT160,ST160,162..GT,ST,SX DOOR,SUPER WHITE,SUPER WHITE,040 |
87940-20850-08 |
US $283.92 |
||
|
87940
|
87940
87940-20850-33 Mirror Assy, Outer Rear View, Lh[05.1986 - 08.1987] AT160,ST162 DOOR,BLUISH GRAY-M,BLUISH GRAY METALLIC,2Z3 |
87940-20850-33 |
US $283.92 |
||
|
87941
|
87941
87941-20160 Gasket, Outer Rear View Mirror, Lh[08.1985 - 08.1987] AT160,ST16# |
87941-20160 |
US $6.84 |
||
|
9014950004
|
9014950004
90149-50004
New Genuine Part
|
90149-50004 |
— | ||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.80 |
||
|
9331915016
|
9331915016
93319-15016 Screw, Cover Set, No.1 |
93319-15016 |
from US $1.41 |
||
