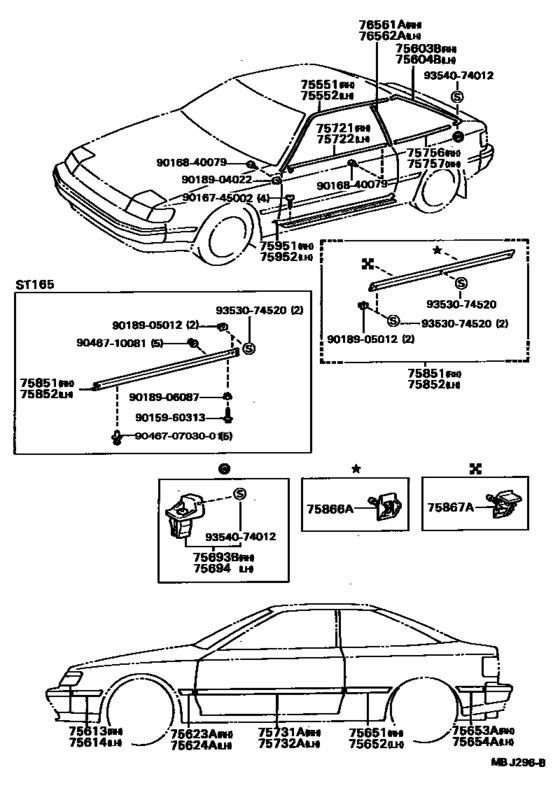

Side Moulding ([08.1985 - ] (8508- )) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75551
|
75551
75551-20270
Moulding, Roof Drip Side Finish, Rh
[08.1985 - 08.1987] AT160,ST16# |
75551-20270 |
— | ||
| replacement | |||||
|
75551
|
75551
75551-20271
Moulding, Roof Drip Side Finish, Rh
[08.1985 - 08.1987] AT160,ST16# |
75551-20271 |
— | ||
|
75552
|
75552
75552-20270
Moulding, Roof Drip Side Finish, Lh
[08.1985 - 08.1987] AT160,ST16# |
75552-20270 |
— | ||
| replacement | |||||
|
75552
|
75552
75552-20271 Moulding, Roof Drip Side Finish, Lh[08.1985 - 08.1987] AT160,ST16# |
75552-20271 |
US $75.71 |
||
|
75603B
|
75603B
75603-20030 Moulding Sub-Assy, Quarter Window Outside, Rh[08.1985 - 08.1987] AT160,ST16# |
75603-20030 |
US $64.36 |
||
| replacement | |||||
|
75603B
|
75603B
75603-20031
Moulding Sub-Assy, Quarter Window Outside, Rh
[08.1985 - 08.1987] AT160,ST16# |
75603-20031 |
— | ||
|
75604B
|
75604B
75604-20020 Moulding Sub-Assy, Quarter Window Outside, Lh[08.1985 - 08.1987] AT160,ST16# |
75604-20020 |
US $64.36 |
||
| replacement | |||||
|
75604B
|
75604B
75604-20021
Moulding Sub-Assy, Quarter Window Outside, Lh
[08.1985 - 08.1987] AT160,ST16# |
75604-20021 |
— | ||
|
75613
|
75613
75611-20220
Moulding, Front Fender, Outside Front Rh
[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75611-20220 |
— | ||
|
75614
|
75614
75612-20190
Moulding, Front Fender, Outside Front Lh
[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75612-20190 |
— | ||
|
75623A
|
75623A
75623-20080
Moulding, Front Fender, Outside Rear Rh
[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75623-20080 |
— | ||
|
75624A
|
75624A
75624-20080
Moulding, Front Fender, Outside Rear Lh
[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75624-20080 |
— | ||
|
75651
|
75651
75651-20210
Moulding, Quarter, Outside Rh
[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75651-20210 |
— | ||
|
75652
|
75652
75652-20200
Moulding, Quarter, Outside Lh
[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75652-20200 |
— | ||
|
75653A
|
75653A
75653-20150 Moulding, Quarter, Outside Rear Rh[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75653-20150 |
US $20.09 |
||
|
75654A
|
75654A
75654-20140 Moulding, Quarter, Outside Rear Lh[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75654-20140 |
US $20.09 |
||
|
75693B
|
75693B
75693-20020
Retainer, Quarter Belt Rear Moulding, No.1
[08.1985 - 08.1987] AT160,ST16# |
75693-20020 |
— | ||
|
75694
|
75694
75694-20020
Retainer, Quarter Belt Rear Moulding, No.2
[08.1985 - 08.1987] AT160,ST16# |
75694-20020 |
— | ||
|
75721
|
75721
75710-20280
Moulding Assy, Front Door Belt, Rh
[08.1985 - 08.1987] AT160,ST16# |
75710-20280 |
— | ||
|
75722
|
75722
75720-20280
Moulding Assy, Front Door Belt, Lh
[08.1985 - 08.1987] AT160,ST16# |
75720-20280 |
— | ||
|
75731A
|
75731A
75731-20230
Moulding, Front Door, Outside Rh
[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75731-20230 |
— | ||
|
75732A
|
75732A
75732-20230
Moulding, Front Door, Outside Lh
[08.1985 - 08.1987] AT160,ST160,162..GT,ST,SX |
75732-20230 |
— | ||
|
75756
|
75756
75671-20040
Moulding, Quarter Belt, Rh
[08.1985 - 08.1987] AT160,ST16# |
75671-20040 |
— | ||
|
75757
|
75757
75672-20040
Moulding, Quarter Belt, Lh
[08.1985 - 08.1987] AT160,ST16# |
75672-20040 |
— | ||
|
75851
|
75851
75850-29175
Moulding, Rocker Panel, Rh
[08.1985 - 08.1987] AT160,ST160,162 |
75850-29175 |
— | ||
|
75852
|
75852
75850-29175
Moulding, Rocker Panel, Rh
[08.1985 - 08.1987] AT160,ST160,162 |
75850-29175 |
— | ||
|
75866A
|
75866A
75866-20020 Retainer, Rocker Panel Moulding[08.1985 - 08.1987] AT160,ST160,162 |
75866-20020 |
US $4.08 |
||
|
75867A
|
75867A
75867-20050 Clip, Rocker Panel Moulding[08.1985 - 08.1987] AT160,ST160,162 |
75867-20050 |
US $4.08 |
||
|
75951
|
75951
67913-20140-03
Plate, Front Door Scuff, Outside Rh
[08.1985 - 08.1987] AT160,ST16# GRAY,SHADOW GRAY,TRIM1# |
67913-20140-03 |
— | ||
|
75951
|
75951
67913-20140-04 Plate, Front Door Scuff, Rh[08.1985 - 08.1987] AT160,ST160,162 BLUE,DEEP BLUE,TRIM8# |
67913-20140-04 |
US $52.71 |
||
|
75952
|
75952
67913-20140-03
Plate, Front Door Scuff, Outside Rh
[08.1985 - 08.1987] AT160,ST16# GRAY,SHADOW GRAY,TRIM1# |
67913-20140-03 |
— | ||
|
75952
|
75952
67913-20140-04 Plate, Front Door Scuff, Rh[08.1985 - 08.1987] AT160,ST160,162 BLUE,DEEP BLUE,TRIM8# |
67913-20140-04 |
US $52.71 |
||
|
76561A
|
76561A
76561-20010
Moulding, Center Pillar, Rh
[08.1985 - 08.1987] AT160,ST16# |
76561-20010 |
— | ||
|
76562A
|
76562A
76562-20010
Moulding, Center Pillar, Lh
[08.1985 - 08.1987] AT160,ST16# |
76562-20010 |
— | ||
|
9015960313
|
9015960313
90159-60313 SCREW |
90159-60313 |
US $0.51 |
||
|
9016745002
|
9016745002
90167-45002
SCREW
|
90167-45002 |
— | ||
| replacement | |||||
|
9016745002
|
9016745002
93568-54512 SCREW |
93568-54512 |
from US $0.84 |
||
|
9016840079
|
9016840079
90168-40079 New Genuine Part |
90168-40079 |
US $1.75 |
||
|
9018904022
|
9018904022
90189-04022 CLIP |
90189-04022 |
from US $1.12 |
||
|
9018905012
|
9018905012
90189-05012 New Genuine Part |
90189-05012 |
US $3.52 |
||
|
9018906087
|
9018906087
90189-06087 GROMMET |
90189-06087 |
from US $1.54 |
||
|
9046710081
|
9046710081
90467-10081 New Genuine Part |
90467-10081 |
US $0.96 |
||
|
9353074520
|
9353074520
93530-74520 New Genuine Part |
93530-74520 |
US $1.75 |
||
|
9354074012
|
9354074012
93540-74012 New Genuine Part |
93540-74012 |
US $2.04 |
||
|
904670703001
|
904670703001
90467-07030-01 Clip(For Radiator Sopport Extension) |
90467-07030-01 |
from US $1.92 |
||
