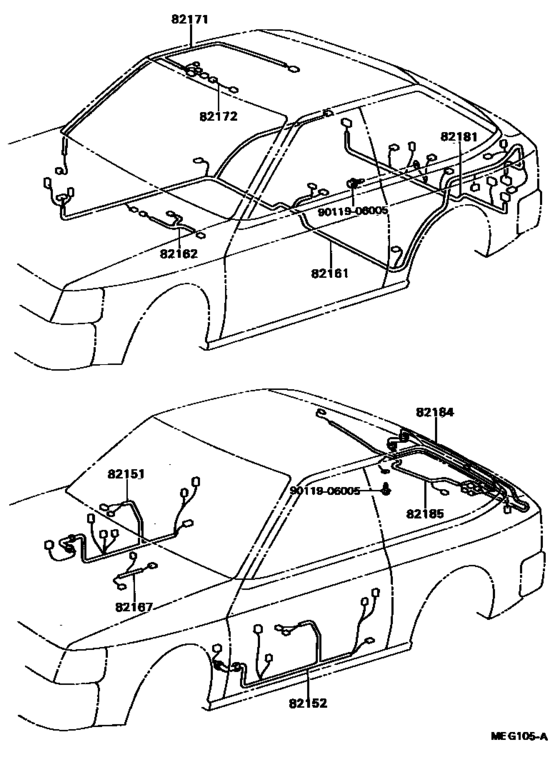

Wiring & Clamp ([08.1985 - ] (8508- )) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-20240 Wire, Front Door, Rh[08.1985 - 08.1987] AT160,ST160,162..GT,ST W/*DM |
82151-20240 |
US $37.27 |
||
|
82151
|
82151
82151-20280
Wire, Front Door, Rh
[08.1985 - 02.1986] AT160,ST162 W/*FM & *PW; ST160..SX W/*FM & *EL |
82151-20280 |
— | ||
|
82151
|
82151
82151-20281 Wire, Front Door, Rh[02.1986 - 08.1987] AT160,ST162,165 W/*FM & *PW; ST160..SX W/*FM & *EL |
82151-20281 |
US $171.81 |
||
|
82151
|
82151
82151-20290
Wire, Front Door, Rh
[08.1985 - 02.1986] AT160,ST162 W/*DM & *PW; ST160..SX W/*DM & *EL |
82151-20290 |
— | ||
|
82151
|
82151
82151-20291 Wire, Front Door, Rh[02.1986 - 08.1987] AT160,ST162,165 W/*DM & *PW; ST160..SX W/*DM & *EL |
82151-20291 |
US $174.72 |
||
|
82152
|
82152
82152-20220 Wire, Front Door, Lh[08.1985 - 08.1987] AT160,ST160,162..GT,ST W/*DM |
82152-20220 |
US $37.27 |
||
|
82152
|
82152
82152-20260 Wire, Front Door, Lh[08.1985 - 08.1987] AT160,ST162,165 W/*FM & *PW; ST160..SX W/*FM & *EL |
82152-20260 |
US $126.67 |
||
|
82152
|
82152
82152-20270 Wire, Front Door, Lh[08.1985 - 08.1987] AT160,ST162,165 W/*DM & *PW; ST160..SX W/*DM & *EL |
82152-20270 |
US $126.67 |
||
|
82161
|
82161
82161-20570
Wire, Floor
[08.1985 - 07.1986] AT160,ST16#..GT,SX |
82161-20570 |
— | ||
|
82161
|
82161
82161-20571 Wire, Floor[07.1986 - 08.1987] AT160,ST160,162..GT,SX |
82161-20571 |
US $550.37 |
||
|
82162
|
82162
82162-20290 Wire, Floor, No.2[07.1986 - 08.1987] ST162,165 |
82162-20290 |
US $70.91 |
||
|
82167
|
82167
82167-20020 Wire, Seat, No.1[08.1985 - 08.1987] ST162,165 |
82167-20020 |
US $31.16 |
||
|
82171
|
82171
82171-20180 Wire, Roof, No.1[08.1985 - 08.1987] AT160,ST16# |
82171-20180 |
US $25.19 |
||
| replacement | |||||
|
82171
|
82171
82171-20181 Wire, Roof, No.1[08.1985 - 08.1987] AT160,ST16# |
82171-20181 |
US $31.16 |
||
|
82171
|
82171
82171-20190
Wire, Roof, No.1
[08.1985 - 08.1987] AT160,ST16#..GT,GT4,ST,SX W/SUN ROOF |
82171-20190 |
— | ||
|
82172
|
82172
82172-20010 Wire, Roof, No.2[08.1985 - 08.1987] AT160,ST16#..GT,GT4,ST,SX |
82172-20010 |
US $25.19 |
||
|
82181
|
82181
82181-20150 Wire, Luggage Room, No.1[08.1985 - 08.1987] AT160,ST160,162 |
82181-20150 |
US $80.08 |
||
|
82184
|
82184
82184-20050 Wire, Back Door, No.1[08.1985 - 08.1987] AT160,ST16#..GT,GT4,ST,SX W/RR WIPER |
82184-20050 |
US $61.88 |
||
|
82185
|
82185
82185-20110 Wire, Back Door, No.2[08.1985 - 08.1987] AT160,ST16#..GT,GT4,ST,SX W/RR WIPER |
82185-20110 |
US $37.13 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
