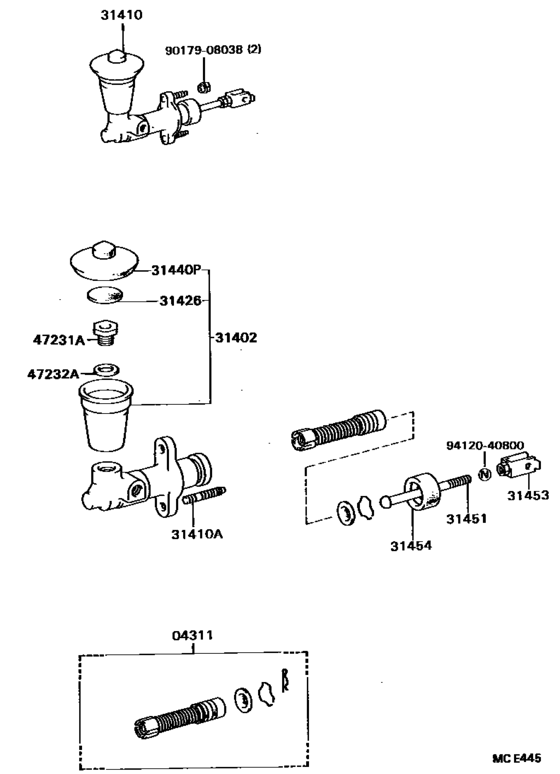

Clutch Master Cylinder ([08.1987 - ] S50,52,53,E50F2 (8708- )5F) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-32023 Cylinder Kit, Clutch Master[08.1987 - 08.1989] ST16#..5F |
04311-32023 |
US $31.16 |
||
| replacement | |||||
|
04311
|
04311
04311-32030 Cylinder Kit, Clutch Master[08.1987 - 08.1989] ST16#..5F |
04311-32030 |
US $32.53 |
||
|
31402
|
31402
31402-30030 Reservoir Sub-Assy, Clutch Master Cylinder[08.1987 - 08.1989] ST16#..5F |
31402-30030 |
US $29.88 |
||
|
31410
|
31410
31410-20281
Cylinder Assy, Clutch Master
[08.1987 - 10.1987] ST16#..5F |
31410-20281 |
— | ||
| replacement | |||||
|
31410
|
31410
31410-20282 Cylinder Assy, Clutch Master[08.1987 - 10.1987] ST16#..5F |
31410-20282 |
US $182.88 |
||
|
31410
|
31410
31410-20282 Cylinder Assy, Clutch Master[10.1987 - 08.1989] ST16#..5F |
31410-20282 |
US $182.88 |
||
|
31410A
|
31410A
90116-08146 Bolt(For Clutch Master Cylinder Setting)[08.1987 - 08.1989] ST16#..5F |
90116-08146 |
US $1.40 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[08.1987 - 08.1989] ST16#..5F |
31426-30011 |
— | ||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[08.1987 - 08.1989] ST16#..5F |
47230-20040 |
from US $9.36 |
||
|
31451
|
31451
31451-32010 Rod, Clutch Master Cylinder Push[08.1987 - 08.1989] ST16#..5F |
31451-32010 |
US $9.90 |
||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[08.1987 - 08.1989] ST16#..5F |
31453-35010 |
US $6.64 |
||
|
31454
|
31454
31454-14010 Boot, Clutch Master Cylinder[08.1987 - 08.1989] ST16#..5F |
31454-14010 |
US $4.19 |
||
|
47231A
|
47231A
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[08.1987 - 08.1989] ST16#..5F |
47231-30010 |
US $4.48 |
||
|
47232A
|
47232A
47232-30010 Washer, Reservoir Set Bolt[08.1987 - 08.1989] ST16#..5F |
47232-30010 |
US $3.52 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
