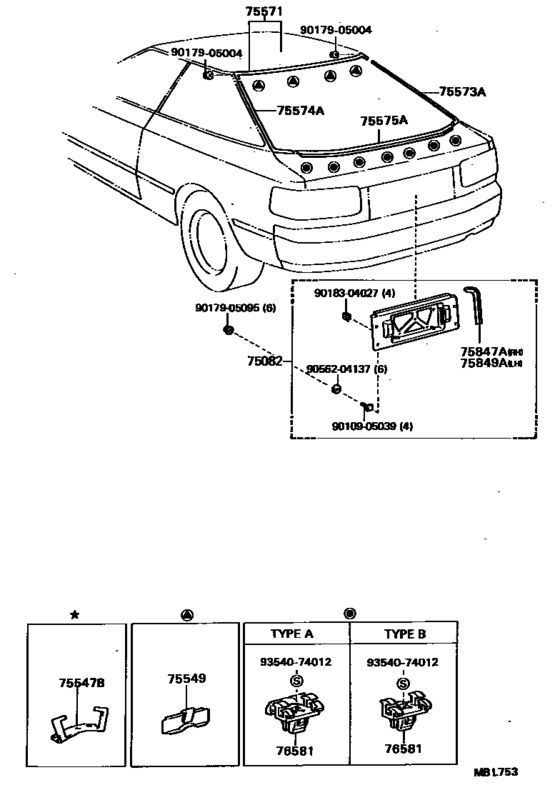

Rear Moulding ([08.1987 - ] (8708- )) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75082
|
75082
75082-20130 Panel Sub-Assy, Lower Back Finish, Center[08.1987 - 08.1989] ST160,162,163..LB (3H4,8D7,8E4) |
75082-20130 |
US $282.46 |
||
|
75082
|
75082
75082-20160-02 Panel Sub-Assy, Lower Back Finish, Center[08.1987 - 08.1989] ST16#..LB SUPER RED 2,3E5 |
75082-20160-02 |
US $336.34 |
||
|
75082
|
75082
75082-20160-08 Panel Sub-Assy, Lower Back Finish, Center[08.1987 - 08.1989] ST16#..LB SUPER WHITE 2,040 |
75082-20160-08 |
US $336.34 |
||
|
75082
|
75082
75082-20160-13 Panel Sub-Assy, Lower Back Finish, Center[08.1987 - 08.1989] ST16#..LB GRAY M,168 |
75082-20160-13 |
US $336.34 |
||
|
75082
|
75082
75082-20160-23 Panel Sub-Assy, Lower Back Finish, Center[08.1987 - 08.1989] ST160,162,163..LB SILVER M,23E |
75082-20160-23 |
US $336.34 |
||
|
75547B
|
75547B
75547-20050 Clip, Windshield Outside Moulding, No.3[08.1987 - 08.1989] ST16#..LB |
75547-20050 |
US $3.20 |
||
|
75549
|
75549
75549-20080
Fastener, Back Window Outside Moulding
[08.1987 - 08.1989] ST16#..LB |
75549-20080 |
— | ||
|
75571
|
75571
75507-20170
Moulding, Back Window, Outside Upper
[08.1987 - 08.1989] ST16#..LB |
75507-20170 |
— | ||
|
75573A
|
75573A
75501-20031
Moulding, Back Window Side, Rh
[08.1987 - 08.1989] ST16#..LB |
75501-20031 |
— | ||
|
75574A
|
75574A
75502-20011
Moulding, Back Window Side, Lh
[08.1987 - 08.1989] ST16#..LB |
75502-20011 |
— | ||
|
75575A
|
75575A
75575-20200
Moulding, Back Window, Lower
[08.1987 - 08.1989] ST16#..LB |
75575-20200 |
— | ||
|
75847A
|
75847A
75847-20070 Pad, Lower Back Panel Moulding, Rh[08.1987 - 08.1989] ST16#..LB |
75847-20070 |
US $2.77 |
||
|
75849A
|
75849A
75849-20060 Pad, Lower Back Panel Moulding, Lh[08.1987 - 08.1989] ST16#..LB |
75849-20060 |
US $2.77 |
||
|
76581
|
76581
76581-20020
Retainer, Back Window Outside Moulding
[08.1987 - 08.1989] ST16#..LB タイプ Ａ |
76581-20020 |
— | ||
|
76581
|
76581
76583-20010
Retainer, Back Window Outside Moulding
[08.1987 - 08.1989] ST16#..LB タイプ Ｂ |
76583-20010 |
— | ||
|
9010905039
|
9010905039
90109-05039 New Genuine Part |
90109-05039 |
US $1.60 |
||
|
9017905004
|
9017905004
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9018304027
|
9018304027
90183-04027 New Genuine Part |
90183-04027 |
US $1.12 |
||
|
9056204137
|
9056204137
90562-04137
New Genuine Part
|
90562-04137 |
— | ||
|
9354074012
|
9354074012
93540-74012 New Genuine Part |
93540-74012 |
US $2.04 |
||
