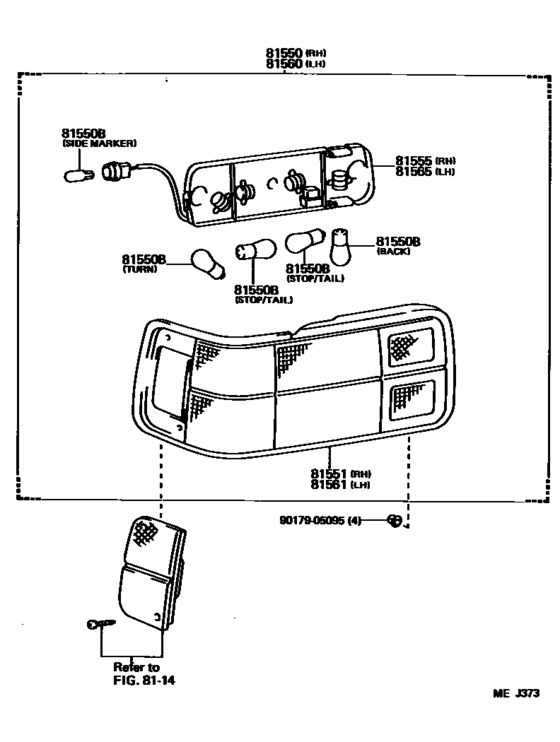

Rear Combination Lamp ([08.1987 - ] (8708- )LB) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST162
- grade
- GTS
- body
- LB
- ENGINE
- 3SGELC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-20681 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.1987 - 08.1989] ST16#..LB |
81550-20681 |
US $279.55 |
||
|
81550B
|
81550B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.1987 - 08.1989] ST16# 12V 3.8W,SIDE MARKER |
90981-11020 |
from US $2.72 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1987 - 08.1989] ST16# 12V 27W,TURN OR BACK |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1987 - 08.1989] ST16# 12V 27/8W,STOP/TAIL |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-20681 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1987 - 08.1989] ST16#..LB |
81551-20681 |
US $270.82 |
||
|
81555
|
81555
81555-20681 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1987 - 08.1989] ST16#..LB |
81555-20681 |
US $50.67 |
||
|
81560
|
81560
81560-20621 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.1987 - 08.1989] ST16#..LB |
81560-20621 |
US $279.55 |
||
| replacement | |||||
|
81560
|
81560
81561-20621 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1987 - 08.1989] ST16#..LB |
81561-20621 |
US $270.82 |
||
|
81561
|
81561
81561-20621 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1987 - 08.1989] ST16#..LB |
81561-20621 |
US $270.82 |
||
|
81565
|
81565
81565-20621 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1987 - 08.1989] ST16#..LB |
81565-20621 |
US $50.67 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
