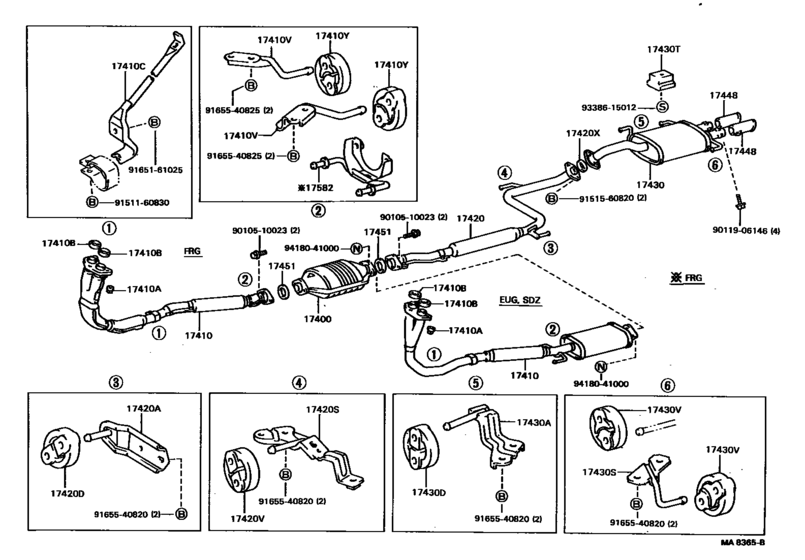

Exhaust Pipe ([08.1985 - ] (8508- )3SG#) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELC
- TRANSMISSION
- MTM
- DESTINATION
- SDZ
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-74070 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1985 - 08.1987] 3SG#..ST162..EUG,SDZ |
17410-74070 |
US $474.66 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162 |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17506-74020 Bracket, Exhaust Pipe Front (For Front)[08.1985 - 08.1987] 3SG#..ST162 |
17506-74020 |
US $41.06 |
||
|
17410V
|
17410V
17504-63010 Bracket, Exhaust Pipe Front (For Front)[08.1985 - 12.1985] 4AGEL,3SG#..AT160,ST162 RH |
17504-63010 |
US $25.33 |
||
|
17410V
|
17410V
17504-74010 Bracket, Exhaust Pipe Front (For Front)[12.1985 - 11.1986] 4AGEL,3SG#..AT160,ST162 RH |
17504-74010 |
US $29.41 |
||
|
17410V
|
17410V
17504-74030 Bracket, Exhaust Pipe Front (For Front)[11.1986 - 02.1987] 4AGEL,3SG#..AT160,ST162 RH,PLANT.A41-A42 |
17504-74030 |
US $20.82 |
||
| replacement | |||||
|
17410V
|
17410V
17504-74040 Bracket, Exhaust Pipe Front (For Front)[11.1986 - 02.1987] 4AGEL,3SG#..AT160,ST162 RH,PLANT.A41-A42 |
17504-74040 |
US $23.73 |
||
|
17410V
|
17410V
17504-74040 Bracket, Exhaust Pipe Front (For Front)[02.1987 - 08.1987] 4AGEL,3SG#..AT160,ST162 RH |
17504-74040 |
US $23.73 |
||
|
17410V
|
17410V
17505-63020 Bracket, Exhaust Pipe Front (For Front)[08.1985 - 12.1985] 4AGEL,3SG#..AT160,ST162 LH |
17505-63020 |
US $13.69 |
||
|
17410V
|
17410V
17505-74010 Bracket, Exhaust Pipe Front (For Front)[12.1985 - 11.1986] 4AGEL,3SG#..AT160,ST162 LH |
17505-74010 |
US $29.41 |
||
|
17410V
|
17410V
17505-74020 Bracket, Exhaust Pipe Front (For Front)[02.1987 - 08.1987] 4AGEL,3SG#..AT160,ST162 LH |
17505-74020 |
US $26.94 |
||
|
17410Y
|
17410Y
17565-16020 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1985 - 04.1986] 4AGEL,3SG#..AT160,ST162..5F |
17565-16020 |
US $16.95 |
||
|
17410Y
|
17410Y
17565-63071 Bolt Or Ring, Exhaust Pipe Front (For Front)[04.1986 - 08.1987] 4AGEL,3SG#..AT160,ST162..5F |
17565-63071 |
US $10.63 |
||
|
17420
|
17420
17420-74080
Pipe Assy, Exhaust, Center
[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162..EUG,SDZ |
17420-74080 |
— | ||
|
17420A
|
17420A
17506-74010 Bracket, Exhaust Pipe Front (For Center)[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
17506-74010 |
US $15 |
||
|
17420D
|
17420D
17565-63060 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
17565-63060 |
US $12.52 |
||
|
17420S
|
17420S
17507-74010
Bracket, Exhaust Pipe Front (For Rear)
[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
17507-74010 |
— | ||
|
17420V
|
17420V
17565-63060 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
17565-63060 |
US $12.52 |
||
|
17420X
|
17420X
90917-06012
Gasket, Exhaust Pipe
[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
90917-06012 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
90917-06045 |
from US $1.70 |
||
|
17430
|
17430
17430-74070 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162..EUG,SDZ |
17430-74070 |
US $430.98 |
||
| replacement | |||||
|
17430
|
17430
17430-74071 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162..EUG,SDZ |
17430-74071 |
US $429.52 |
||
|
17430A
|
17430A
17508-74010 Bracket, Exhaust Tail Pipe(For Front)[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162 |
17508-74010 |
US $15 |
||
|
17430D
|
17430D
17565-63030 Bracket, Catalytic Converter Support[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162..5F |
17565-63030 |
US $13.44 |
||
|
17430S
|
17430S
17509-74010 Bracket, Exhaust Tail Pipe (For Rear)[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162 |
17509-74010 |
US $20.82 |
||
|
17430T
|
17430T
17591-36010
Cushion, Exhaust Pipe Front (For Rear)
[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162 |
17591-36010 |
— | ||
| replacements | |||||
|
17430T
|
17430T
17591-36011 Cushion, Exhaust Pipe Center, Center[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162 |
17591-36011 |
US $17.41 |
||
|
17430T
|
17430T
90159-50207 New Genuine Part[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162 |
90159-50207 |
US $0.92 |
||
|
17430V
|
17430V
17565-16080 Bolt Or Ring, Exhaust Tail Pipe (For Rear)[08.1985 - 08.1987] 4A#,3SG#..AT160,ST162..5F |
17565-16080 |
US $12.32 |
||
|
17448
|
17448
17448-74030
Baffle, Tail Pipe
[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
17448-74030 |
— | ||
| replacement | |||||
|
17448
|
17448
17448-79015 Baffle, Tail Pipe[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162 |
17448-79015 |
US $53.99 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162..EUG,SDZ |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1985 - 08.1987] 4AGEL,3SG#..AT160,ST162..EUG,SDZ |
90917-06045 |
from US $1.70 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.98 |
||
|
9011906146
|
9011906146
90119-06146 New Genuine Part |
90119-06146 |
US $1.02 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.99 |
||
|
9151560820
|
9151560820
91515-60820 New Genuine Part |
91515-60820 |
US $2.18 |
||
| replacement | |||||
|
9151560820
|
9151560820
91511-B0816 BOLT |
91511-B0816 |
US $0.92 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.54 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165540825
|
9165540825
91655-40825
New Genuine Part
|
91655-40825 |
— | ||
| replacement | |||||
|
9165540825
|
9165540825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9338615012
|
9338615012
93386-15012 New Genuine Part |
93386-15012 |
US $0.87 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
