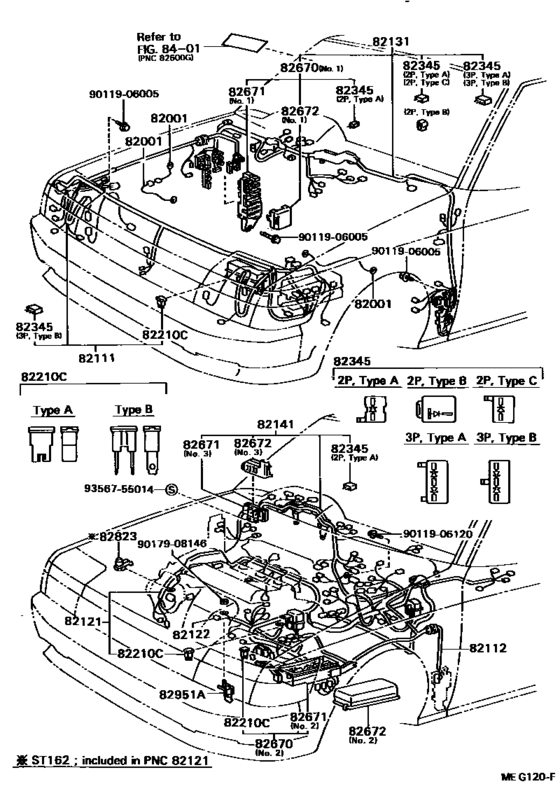

Wiring & Clamp ([08.1985 - ] (8508- )TWC) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELC
- TRANSMISSION
- MTM
- DESTINATION
- SDZ
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[08.1985 - 08.1987] AT160,ST162 FENDER RH |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07239 Cable, Bond, No.1[08.1985 - 08.1987] ST162 ENGINE HANGGER |
90980-07239 |
US $4.89 |
||
|
82001
|
82001
90980-07264
Cable, Bond, No.1
[08.1985 - 08.1987] AT160,ST162 TRANSMISSION-FENDER LH |
90980-07264 |
— | ||
|
82111
|
82111
82111-20470 Wire, Engine Room MainENGINE ROOM MAIN [08.1985 - 04.1986] AT160,ST162..LHD |
82111-20470 |
US $707.62 |
||
| replacement | |||||
|
82111
|
82111
82111-20471 Wire, Engine Room MainENGINE ROOM MAIN [08.1985 - 04.1986] AT160,ST162..LHD |
82111-20471 |
US $709.07 |
||
|
82111
|
82111
82111-20471 Wire, Engine Room MainENGINE ROOM MAIN [04.1986 - 08.1987] AT160,ST162..LHD |
82111-20471 |
US $709.07 |
||
|
82112
|
82112
82112-20120 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [08.1985 - 08.1987] AT160..CBR; ST162..LHD |
82112-20120 |
US $82.99 |
||
|
82121
|
82121
82121-20520 Wire, EngineENGINE [08.1985 - 11.1985] ST162..LHD..5F..(EUG,SDZ) |
82121-20520 |
US $844.48 |
||
| replacement | |||||
|
82121
|
82121
82121-20522
Wire, Engine
[08.1985 - 11.1985] ST162..LHD..5F..(EUG,SDZ) |
82121-20522 |
— | ||
|
82121
|
82121
82121-20521 Wire, EngineENGINE [11.1985 - 07.1986] ST162..LHD..5F..(EUG,SDZ) |
82121-20521 |
US $953.68 |
||
| replacement | |||||
|
82121
|
82121
82121-20522
Wire, Engine
[11.1985 - 07.1986] ST162..LHD..5F..(EUG,SDZ) |
82121-20522 |
— | ||
|
82121
|
82121
82121-20522
Wire, Engine
[07.1986 - 09.1986] ST162..LHD..5F..(EUG,SDZ) |
82121-20522 |
— | ||
|
82121
|
82121
82121-20523 Wire, EngineENGINE [09.1986 - 08.1987] ST162..LHD..5F..(EUG,SDZ) |
82121-20523 |
US $848.85 |
||
|
82122
|
82122
82122-20070 Wire, Engine, No.2[08.1985 - 11.1985] ST162 |
82122-20070 |
US $43.24 |
||
|
82122
|
82122
82122-20071 Wire, Engine, No.2[11.1985 - 08.1987] ST162 |
82122-20071 |
US $80.08 |
||
|
82131
|
82131
82131-2B400 Wire, CowlCOWL [08.1985 - 02.1986] ST162..LHD |
82131-2B400 |
US $892.53 |
||
| replacement | |||||
|
82131
|
82131
82131-2B401
Wire, Cowl
[08.1985 - 02.1986] ST162..LHD |
82131-2B401 |
— | ||
|
82131
|
82131
82131-2B401
Wire, Cowl
[02.1986 - 04.1986] ST162..LHD |
82131-2B401 |
— | ||
|
82131
|
82131
82131-2B402 Wire, CowlCOWL [04.1986 - 08.1987] ST162..LHD |
82131-2B402 |
US $895.44 |
||
|
82141
|
82141
82141-20410
Wire, Instrument Panel
[08.1985 - 08.1987] AT160,ST162..LHD..5F |
82141-20410 |
— | ||
|
82141
|
82141
82141-20430
Wire, Instrument Panel
[08.1985 - 08.1987] ST162..(CP,LB)..LHD W/*DS |
82141-20430 |
— | ||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1985 - 08.1987] AT160,ST162 30A,TERMINAL:FEMALE,30A,TYPE A |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1985 - 08.1987] AT160,ST162 40A,TERMINAL:FEMALE,40A |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[08.1985 - 08.1987] AT160,ST162 80A,TERMINAL:MALE,80A |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[08.1985 - 08.1987] AT160,ST162 30A,TERMINAL:MALE,30A,TYPE B |
90982-08223 |
US $11.36 |
||
|
82345
|
82345
82345-20040 Diode[08.1985 - 08.1987] AT160,ST162 3P,TYPE B |
82345-20040 |
US $12.06 |
||
|
82345
|
82345
82345-20060 Diode[08.1985 - 08.1987] AT160,ST162 2P,TYPE A |
82345-20060 |
US $11.01 |
||
|
82345
|
82345
82345-32010 Diode[08.1985 - 08.1987] AT160,ST162 2P,TYPE C |
82345-32010 |
US $12.06 |
||
|
82670
|
82670
82670-20040 Block Assy, Junction, No.1JUNCTION, NO.1 [08.1985 - 08.1987] AT160,ST162..LHD NO.1 |
82670-20040 |
US $304.30 |
||
|
82670
|
82670
82670-20050 Block Assy, Junction, No.1[08.1985 - 08.1987] AT160,ST162 NO.2 |
82670-20050 |
US $218.40 |
||
|
82671
|
82671
82671-20030
Block Assy, Junction, No.1
[08.1985 - 08.1987] AT160,ST162 NO.1 |
82671-20030 |
— | ||
|
82671
|
82671
82671-20040 Block, Junction[08.1985 - 08.1987] AT160,ST162 NO.2 |
82671-20040 |
US $216.94 |
||
|
82671
|
82671
82671-20050 Block, Junction[08.1985 - 08.1987] AT160,ST162 NO.3 |
82671-20050 |
US $281.01 |
||
|
82672
|
82672
82672-20030 Cover, Junktion BlockJUNKTION BLOCK [08.1985 - 08.1987] AT160,ST162..LHD NO.1 |
82672-20030 |
US $5.97 |
||
|
82672
|
82672
82672-20040 Cover, Junktion Block[08.1985 - 08.1987] AT160,ST162 NO.2 |
82672-20040 |
US $27.96 |
||
|
82672
|
82672
82672-20080
Cover, Junktion Block
[08.1985 - 08.1987] AT160,ST162 NO.3 |
82672-20080 |
— | ||
|
82823
|
82823
82823-22060 Cap, Terminal, No.1[07.1986 - 08.1987] ST162 ALTERNATOR |
82823-22060 |
US $14.56 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
