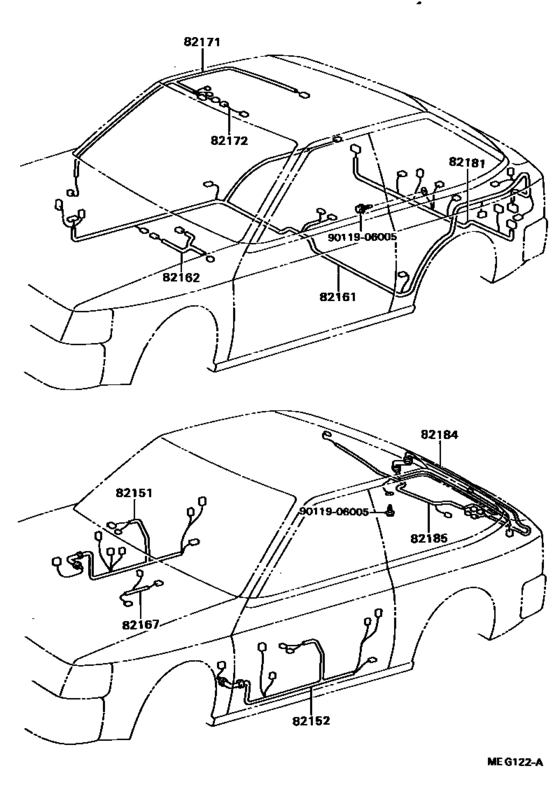

Wiring & Clamp ([08.1985 - ] (8508- )LB) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELC
- TRANSMISSION
- MTM
- DESTINATION
- SDZ
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-20260 Wire, Front Door, RhFRONT DOOR, RH [08.1985 - 08.1986] AT160,ST162..TWC W/*RCM |
82151-20260 |
US $55.04 |
||
|
82151
|
82151
82151-20320 Wire, Front Door, RhFRONT DOOR, RH [08.1985 - 08.1987] ST162..(CP,LB)..LHD W/*PW |
82151-20320 |
US $126.67 |
||
|
82152
|
82152
82152-20240 Wire, Front Door, LhFRONT DOOR, LH [08.1985 - 08.1986] AT160,ST162..TWC W/*RCM |
82152-20240 |
US $55.04 |
||
|
82152
|
82152
82152-20300 Wire, Front Door, LhFRONT DOOR, LH [08.1985 - 08.1987] ST162..(CP,LB)..LHD W/*PW |
82152-20300 |
US $171.81 |
||
|
82161
|
82161
82161-20610
Wire, Floor
[08.1985 - 07.1986] ST162..LB..LHD |
82161-20610 |
— | ||
|
82161
|
82161
82161-20611
Wire, Floor
[07.1986 - 08.1987] ST162..LB..LHD |
82161-20611 |
— | ||
|
82161
|
82161
82161-2B180
Wire, Floor
[08.1986 - 08.1987] ST162..LB..LHD..(EUG,SDZ) W/*SH |
82161-2B180 |
— | ||
|
82162
|
82162
82162-20280 Wire, Floor, No.2FLOOR, NO.2 [07.1986 - 08.1987] ST162..LHD |
82162-20280 |
US $70.91 |
||
|
82167
|
82167
82167-20020 Wire, Seat, No.1[08.1985 - 08.1987] ST162..CP,LB |
82167-20020 |
US $31.16 |
||
|
82171
|
82171
82171-20200 Wire, Roof, No.1ROOF, NO.1 [08.1985 - 08.1987] AT160,ST162..LHD |
82171-20200 |
US $31.16 |
||
|
82171
|
82171
82171-20210 Wire, Roof, No.1ROOF, NO.1 [08.1985 - 08.1987] AT160,ST162..(CP,LB)..LHD W/SUN ROOF |
82171-20210 |
US $55.18 |
||
|
82172
|
82172
82172-20010 Wire, Roof, No.2[08.1985 - 08.1987] AT160,ST162..CP,LB |
82172-20010 |
US $25.19 |
||
|
82181
|
82181
82181-20190 Wire, Luggage Room, No.1LUGGAGE ROOM, NO.1 [08.1985 - 08.1987] AT160,ST162..LB |
82181-20190 |
US $80.08 |
||
|
82184
|
82184
82184-20040 Wire, Back Door, No.1[08.1985 - 08.1987] AT160,ST162..LB |
82184-20040 |
US $55.18 |
||
|
82184
|
82184
82184-20050 Wire, Back Door, No.1[08.1985 - 08.1987] AT160,ST162..LB W/*RW |
82184-20050 |
US $61.88 |
||
|
82185
|
82185
82185-20070 Wire, Back Door, No.2BACK DOOR, NO.2 [08.1985 - 08.1987] AT160,ST162..LB |
82185-20070 |
US $70.76 |
||
|
82185
|
82185
82185-20090 Wire, Back Door, No.2BACK DOOR, NO.2 [08.1985 - 08.1987] AT160,ST162..LB W/*RW |
82185-20090 |
US $43.10 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
