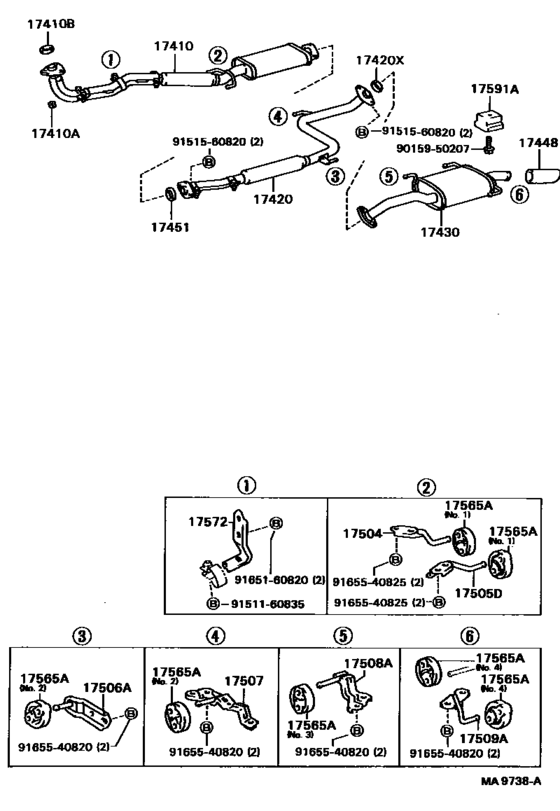

Exhaust Pipe ([08.1987 - ] (8708- )3SFE) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- ST162
- grade
- ST
- body
- CP
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-74360 Pipe Assy, Exhaust, Front[08.1987 - 08.1989] 3SFE..ST162 |
17410-74360 |
US $519.79 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06005
Gasket, Exhaust Pipe
[08.1987 - 08.1989] 3SFE..ST162 |
90917-06005 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06042 Gasket, Exhaust Pipe[08.1987 - 08.1989] 3SFE..ST162 |
90917-06042 |
from US $4.78 |
||
|
17420
|
17420
17420-74230 Pipe Assy, Exhaust, Center[08.1987 - 08.1989] 3SFE..ST162 |
17420-74230 |
US $365.46 |
||
|
17420X
|
17420X
90917-06012
Gasket, Exhaust Pipe
[08.1987 - 08.1989] 4AGEL,3SFE,3SG#..AT160,ST162 |
90917-06012 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[08.1987 - 08.1989] 4AGEL,3SFE,3SG#..AT160,ST162 |
90917-06045 |
from US $1.70 |
||
|
17430
|
17430
17430-74350 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1987 - 08.1989] 3SFE..ST162 |
17430-74350 |
US $391.66 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1987 - 08.1989] 4AGEL,3SFE,3SGEL..AT160,ST162 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1987 - 08.1989] 4AGEL,3SFE,3SGEL..AT160,ST162 |
90917-06045 |
from US $1.70 |
||
|
17504
|
17504
17504-74040 Bracket, Exhaust Pipe Front (For Front)[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 |
17504-74040 |
US $23.73 |
||
|
17505D
|
17505D
17505-74020 Bracket, Exhaust Pipe Front (For Front)[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 |
17505-74020 |
US $26.94 |
||
|
17506A
|
17506A
17506-74010 Bracket, Exhaust Pipe Front (For Center)[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 NO.1 |
17506-74010 |
US $15 |
||
|
17507
|
17507
17507-74010
Bracket, Exhaust Pipe Front (For Rear)
[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 |
17507-74010 |
— | ||
|
17508A
|
17508A
17508-74010 Bracket, Exhaust Tail Pipe(For Front)[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 |
17508-74010 |
US $15 |
||
|
17509A
|
17509A
17509-74010 Bracket, Exhaust Tail Pipe (For Rear)[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 |
17509-74010 |
US $20.82 |
||
|
17565A
|
17565A
17565-16080 Bolt Or Ring, Exhaust Tail Pipe (For Rear)[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162..5F NO.4 |
17565-16080 |
US $12.32 |
||
|
17565A
|
17565A
17565-63030 Bracket, Catalytic Converter Support[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162..5F NO.3 |
17565-63030 |
US $13.44 |
||
|
17565A
|
17565A
17565-63060 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162..5F NO.2 |
17565-63060 |
US $12.52 |
||
|
17565A
|
17565A
17565-63071 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162..5F NO.1 |
17565-63071 |
US $10.63 |
||
|
17572
|
17572
17571-74090 Bracket, Exhaust Pipe No.1 Support[08.1987 - 08.1989] 3SFE..ST162 |
17571-74090 |
US $20.82 |
||
| replacement | |||||
|
17572
|
17572
17571-74250 Bracket, Exhaust Pipe Support, No.1[08.1987 - 08.1989] 3SFE..ST162 |
17571-74250 |
US $45.43 |
||
|
17591A
|
17591A
17591-74010 Stopper, Exhaust Pipe Support[08.1987 - 08.1989] 4A#,3SFE,3SG#..AT160,ST162 |
17591-74010 |
US $18.05 |
||
|
9015950207
|
9015950207
90159-50207 New Genuine Part |
90159-50207 |
US $0.92 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.56 |
||
|
9151560820
|
9151560820
91515-60820 New Genuine Part |
91515-60820 |
US $2.18 |
||
| replacement | |||||
|
9151560820
|
9151560820
91511-B0816 BOLT |
91511-B0816 |
US $0.98 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165540825
|
9165540825
91655-40825
New Genuine Part
|
91655-40825 |
— | ||
| replacement | |||||
|
9165540825
|
9165540825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.88 |
||
