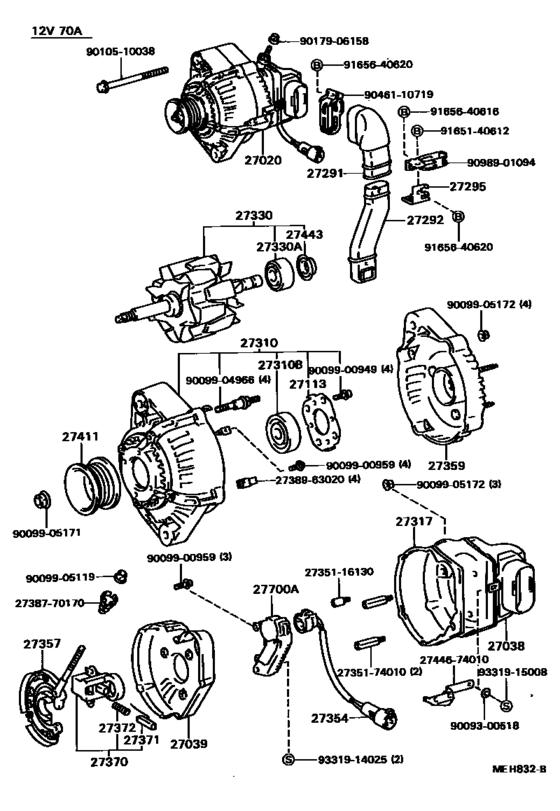

Alternator ([10.1986 - ] (8610- )3SGTE) Diagram Toyota CELICA
- Year
- 1986 - 1987
- Sales region
- Japan
- Frame
- ST165
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1986
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-74010 Alternator Assy[10.1986 - 08.1987] 3SGTE..ST165 １２Ｖ ７０Ａ,12V 70A |
27060-74010 |
US $1,572.48 |
||
|
27038
|
27038
27038-74010
Duct Sub-Assy, Alternator Air
[10.1986 - 08.1987] 3SGTE..ST165 12V 70A |
27038-74010 |
— | ||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27039-15171 |
— | ||
|
27113
|
27113
27312-72100 Plate, Bearing Retainer, Alternator[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27312-72100 |
US $3.88 |
||
|
27291
|
27291
27291-74010 Duct, Alternator, No.1[10.1986 - 08.1987] 3SGTE..ST165 12V 70A |
27291-74010 |
US $46.30 |
||
|
27292
|
27292
27292-74010
Duct, Alternator, No.2
[10.1986 - 08.1987] 3SGTE..ST165 12V 70A |
27292-74010 |
— | ||
|
27295
|
27295
27295-74010 Bracket, Alternator Duct[10.1986 - 08.1987] 3SGTE..ST165 12V 70A |
27295-74010 |
US $5.53 |
||
|
27310
|
27310
27310-63021
Frame Assy, Drive End, Alternator
[10.1986 - 08.1987] 3SGTE..ST165 12V 70A |
27310-63021 |
— | ||
|
27310B
|
27310B
90099-10159
Bearing(For Alternator Drive End Frame)
[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
90099-10159 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
90099-10199 |
from US $19.39 |
||
|
27317
|
27317
27317-74010
Packing, Cover, Rear End
[10.1986 - 08.1987] 3SGTE..ST165 12V 70A |
27317-74010 |
— | ||
|
27330
|
27330
27330-72100
Rotor Assy, Alternator
[08.1985 - 06.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27330-72100 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[08.1985 - 06.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27330-72101 |
— | ||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[06.1987 -] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
90099-10140 |
from US $9.43 |
||
|
27354
|
27354
27037-74010
Wire Sub-Assy, Alternator Lead
[10.1986 - 08.1987] 3SGTE..ST165 12V 70A |
27037-74010 |
— | ||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-63081
Frame, Alternator Rectifier End
[08.1985 - 08.1987] 3SG#..ST162,165 12V 60A,70A |
27359-63081 |
— | ||
|
27370
|
27370
27370-63021
Holder Assy, Alternator Brush
[03.1986 - 08.1987] 1SILU,3SG#..ST16# 12V 60A,70A |
27370-63021 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[03.1986 - 08.1987] 1SILU,3SG#..ST16# 12V 60A,70A |
27370-35060 |
from US $19.27 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27372-87501 |
— | ||
|
27411
|
27411
27411-16180
Pulley, Alternator
[06.1987 -] 3SGTE..ST165 12V 70A |
27411-16180 |
— | ||
|
27411
|
27411
27411-63081
Pulley, Alternator
[08.1985 - 08.1987] 1SILU,3SG#..ST16# 12V 60A,70A |
27411-63081 |
— | ||
| replacement | |||||
|
27411
|
27411
27411-16180
Pulley, Alternator
[08.1985 - 08.1987] 1SILU,3SG#..ST16# 12V 60A,70A |
27411-16180 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-63021 Regulator Assy, Generator[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27700-63021 |
US $285.38 |
||
| replacement | |||||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[08.1985 - 08.1987] 4AGELU,1SILU,3SG#..AT160,ST16# 12V 60A,70A |
27700-70030 |
US $263.54 |
||
|
2735116130
|
2735116130
27351-16130
Bush(For Alternator Rectifier End Frame)
|
27351-16130 |
— | ||
|
2735174010
|
2735174010
27351-74010
Bush(For Alternator Rectifier End Frame)
|
27351-74010 |
— | ||
|
2738770170
|
2738770170
27387-70170
Insulator, Terminal
|
27387-70170 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
2744674010
|
2744674010
27446-74010
Clip, Alternator Cord
|
27446-74010 |
— | ||
|
9009300518
|
9009300518
90093-00518
New Genuine Part
|
90093-00518 |
— | ||
|
9009900949
|
9009900949
90099-00949
New Genuine Part
|
90099-00949 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010510038
|
9010510038
90105-10038 Bolt(For Alternator) |
90105-10038 |
from US $2.03 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9046110719
|
9046110719
90461-10719 New Genuine Part |
90461-10719 |
US $6.26 |
||
|
9098901094
|
9098901094
90989-01094 New Genuine Part |
90989-01094 |
US $7.86 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
